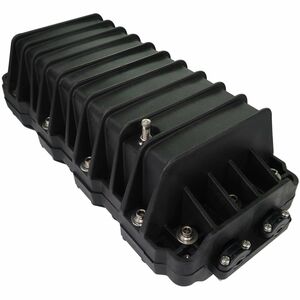

Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure - 6 Splicing Trays, 144 Fiber Capacity, IP68 Rated

Tripp Lite by EatonSKU: 9611536

Price:
Sale price$384.60

Description

This outdoor-grade fiber splice enclosure from Eaton Tripp Lite delivers durable, weatherproof protection for complex fiber optic deployments. Engineered for reliable performance in harsh environments, it securely houses on-site splices and terminations while offering exceptional flexibility for future upgrades. The N600H-0144 horizontal enclosure supports six splice trays, each capable of accommodating up to 24 unterminated cables, giving you expansive room to manage cable lengths, splice types, and routing without the need for frequent field replacements. With an IP68 rating, this enclosure stands up to dust, water immersion, and challenging outdoor conditions, making it an ideal choice for outdoor fiber runs, campus backbones, data-center interconnects, and network edge deployments. Its modular, user-friendly design helps technicians install, rework, and maintain fiber networks quickly, reducing downtime and keeping networks running smoothly.

  • Six splice trays for maximum on-site flexibility — The enclosure ships with six precisely engineered splice trays, each supporting up to 24 unterminated cables. This configuration provides ample capacity for future growth, diverse splice technologies (fusion, mechanical, or hybrid), and changes in network topology. On-site adjustments are straightforward, allowing technicians to optimize fiber lengths, manage slack, and reconfigure connections without pulling new ducts or cables. The modular tray system enables rapid access to splices while keeping fiber routing clean, organized, and protected from external elements.
  • Impressive fiber capacity and organized cable management — With a total capacity of 144 fibers, this enclosure is engineered to handle substantial backbone and trunk runs in a compact footprint. The ability to accommodate 24 unterminated cables per tray ensures you can pre-route and terminate in stages, simplifying inventory control and installation planning. Color-coded fiber routing channels and tray guides help prevent miswiring, while built-in slack storage, strain relief, and labeling options promote consistent fiber management practices across multiple installations and technicians.
  • Rugged IP68-rated protection for outdoor reliability — The enclosure is designed to withstand the harsh realities of outdoor environments. Its IP68 rating guarantees robust protection against dust ingress and complete, long-term immersion in water under specified test conditions. This rugged protection translates into lower maintenance costs, less service interruptions, and greater confidence in outdoor fiber deployments across industrial, campus, and municipal networks. Sealed gaskets and weatherproof mounting provisions help keep connectors, splices, and buffer tubes safe from wind-driven rain, mud, and temperature fluctuations.
  • Effortless installation, maintenance, and future-proofing — The horizontal enclosure orientation simplifies mounting on walls, poles, or dedicated racks, depending on the site requirements. A user-friendly lid and latch design provide quick access to trays while preserving seal integrity when closed. The enclosure supports straightforward splicing workflows with compatible splice sleeves, gel-filled handling (where applicable), and proper strain relief to reduce crosstalk and signal loss. Its durable construction minimizes field service time, enabling technicians to complete installations efficiently and with minimal risk of damage to fragile fiber strands.
  • Versatile compatibility and long-term reliability — Built to accommodate a range of fiber types and splice methods, this enclosure supports diverse network configurations—from short-run campus links to multi-building trunk lines. The robust, field-ready design ensures compatibility with common fusion splices and mechanical connector systems, offering flexibility for technicians to select the most suitable approach for each splice. The enclosure’s durability, weatherproofing, and secure cable management collectively contribute to reliable performance over time, reducing the likelihood of environmental-induced faults and service outages.

Technical Details of N600H-0144

  • Model: N600H-0144
  • Series: Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure
  • IP Rating: IP68
  • Splice Trays: 6
  • Fiber Capacity: 144 fibers (24 unterminated cables per tray)
  • Enclosure Type: Horizontal outdoor fiber splice enclosure
  • Application: Outdoor fiber optic cable runs, data-center interconnects, campus backbones

How to install Eaton Tripp Lite Series Fiber Splice Horizontal Enclosure

Proper installation starts with site preparation and a clear understanding of the network topology. Begin by selecting a mounting location that offers convenient service access while preserving the enclosure’s weatherproof seal. Ensure the surface is sturdy and level to support the enclosure’s weight once fully populated with splice trays and fiber. Mount the unit using the provided hardware, following the manufacturer’s recommended screw pattern and torque specs to preserve IP68 integrity. Once mounted, verify that all entry gland ports are sealed and that gaskets are intact.

Next, plan your fiber routing to minimize bending and maintain consistent bend radii. Install the six splice trays in their designated slots, ensuring that each tray is secured and that the latch operates smoothly. Route undedicated (unterminated) fibers onto the appropriate trays, taking care to keep fibers organized by color, type, and destination. If you are using fusion splices, prepare splices according to your standard procedure and store them securely within each tray, using strain relief to prevent movement. For mechanical splices, ensure connectors are properly seated and protected within the tray’s housing.

With the trays loaded, route and manage buffer tubes, slack, and return cables to ensure clean separation between paths and ease of future access. Label each tray and fiber path according to your documentation protocol, which supports faster troubleshooting and network maintenance. Close and seal the enclosure, verifying that all latches engage securely and that the IP68 seal remains intact. Perform a continuity and integrity test to confirm splice quality and signal performance before placing the unit into regular service. Finally, document the installation with photos, serial numbers, and site notes to support ongoing maintenance and future upgrades.

Frequently asked questions

  • Q: How many splices can this enclosure accommodate? A: The N600H-0144 supports six splice trays, with capacity for up to 24 unterminated cables per tray, totaling 144 fibers. This enables comprehensive on-site splicing and future expansion without adding more enclosures.
  • Q: Is this enclosure suitable for outdoor use? A: Yes. It is IP68-rated, designed to resist dust ingress and immersion in water, making it ideal for outdoor fiber optic cable runs and harsh environments.
  • Q: Can I install this enclosure on a wall or a pole? A: The horizontal design is compatible with wall mounting, pole mounting, or dedicated rack installations, depending on site requirements and provided mounting hardware.
  • Q: What kinds of splices are supported? A: The enclosure is compatible with common fiber splice methods, including fusion splices and mechanical connectors, allowing technicians to choose based on project needs and fiber type.
  • Q: Does it come with fiber labels or organization features? A: The enclosure provides organized routing channels and tray guides to facilitate color-coded fiber management, labeling, and slack storage, helping technicians maintain a clean, reliable network installation.
