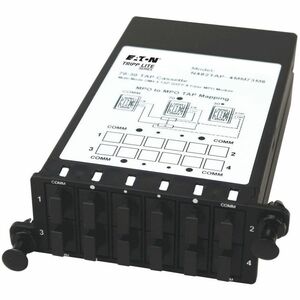

Eaton Tripp Lite Series Fiber TAP Cassette — Multimode, 8-Fiber MPO to MPO, 4 Monitoring Ports, 70/30 Split

Engineered for high-density fiber networks, the Eaton Tripp Lite Series Fiber TAP Cassette delivers reliable, non-intrusive monitoring in a compact, modular package. Designed to install in the Tripp Lite N482-Series chassis, this multimode TAP (traffic access point) cassette splits optical fiber signals into two outputs—one for the user path and one for monitoring—without affecting active data transmission. Featuring an 8-fiber MPO-to-MPO design and four dedicated monitoring ports, it provides visible, actionable insights into network performance, traffic patterns, and fiber health. The passive nature of the cassette means there are no power requirements on-site, reducing energy consumption and minimizing points of failure while preserving signal integrity across multi-fiber links.

• High-fidelity, non-intrusive monitoring: The TAP cassette taps a portion of the signal through a passive splitter, delivering a stable monitoring stream to the four monitoring ports while leaving the user path untouched and fully functional.
• Robust multimode 8-fiber MPO-to-MPO architecture: Supports eight fibers in a compact form factor, enabling parallel signal handling and simplified deployment in dense data-center environments.
• Precise 70/30 split for optimal visibility: The split ratio is designed to maximize monitoring clarity (30% to monitoring ports) while preserving the integrity and performance of the user data path (70%).
• Seamless Tripp Lite N482-Series chassis compatibility: Engineered for quick insertion into compatible chassis, reducing installation time and enabling scalable, modular growth as network demands evolve.
• Four dedicated monitoring ports for flexible analytics: Attach multiple monitoring tools, span ports, or inline sensors to capture comprehensive traffic insights without impacting production traffic.

Technical Details of Eaton Tripp Lite Series Fiber TAP Cassette

• Get this information from the specifications section of the product on https://ec.synnex.com/ using the product UPC or SKU as reference.

How to install Eaton Tripp Lite Series Fiber TAP Cassette

• Power down the Tripp Lite N482-Series chassis and all connected network equipment before installation to ensure safety and prevent data disruption.
• Identify an available, compatible slot in the N482-Series chassis that supports the TAP cassette form factor and MPO backplane connectivity.
• Remove the slot cover or blanking plate as needed to access the backplane, and inspect the slot for any dust or debris that could affect optical connections.
• Align the TAP cassette with the chassis backplane, ensuring the MPO connectors are oriented correctly. Gently insert the cassette until it seats firmly and the latches engage securely.
• Connect the MPO trunk cables to the cassette’s MPO ports according to labeling to ensure correct mapping of fibers. Use proper fiber handling practices to avoid damage or bending losses.
• Attach the monitoring cables to the four dedicated monitoring ports. Label each port to facilitate accurate monitoring workflows and analytics.
• Reinstall the chassis panel and power up the equipment. Confirm that the user data path remains active and that monitoring ports are transmitting signal to your analysis tools.
• Run a basic light-level and continuity test on all fibers to verify proper insertion and connector integrity. Use appropriate optical test gear to confirm that the 70/30 split is functioning as designed and that monitoring ports receive adequate signal levels for analysis.

Frequently asked questions

• What is a Fiber TAP Cassette? A TAP cassette is a passive fiber-optic component that splits a portion of the signal from a primary data path to dedicated monitoring ports, enabling non-intrusive analysis of network traffic without impacting user data transmission.
• What does 70/30 mean for the TAP cassette? The 70/30 split indicates that 70% of the optical signal continues on the user path while 30% is diverted to monitoring ports for traffic analysis and monitoring purposes. This balance is chosen to preserve data integrity while providing meaningful monitoring visibility.
• What fiber type is supported? The cassette is designed for multimode fiber applications, optimized for typical data-center and campus LAN environments that deploy multimode connectivity.
• Is the TAP cassette hot-swappable? The design is intended to integrate into the Tripp Lite N482-Series chassis, with installation procedures that minimize downtime. Always follow proper RMA and safety guidelines when handling live systems.
• How many monitoring ports are available? The product provides four dedicated monitoring ports, enabling flexible monitoring configurations and the connection of multiple analytics devices without interrupting production traffic.
