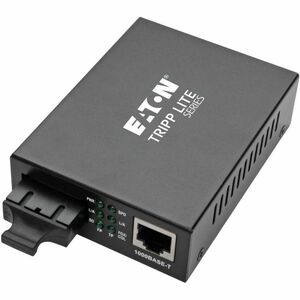

Eaton Tripp Lite Series Gigabit Multimode Fiber to Ethernet Media Converter, 10/100/1000 SC, International Power Supply, 850 nm, 550M (1804.46 ft.)

The Eaton Tripp Lite Series N785-INT-SC-MM Gigabit Multimode Fiber to Ethernet Media Converter is a cost-efficient, plug-and-play solution that empowers you to extend your network beyond the 100-meter limit of traditional copper cabling. Designed for enterprise, campus, and industrial environments, this media converter seamlessly bridges a copper 10/100/1000 Mbps Ethernet link to a multimode fiber link using an SC connector. With an 850 nm signaling wavelength and a distance capability of up to 550 meters (1,804 feet), it unlocks long-haul connectivity without the need to replace existing Cat5e/6 cabling. The international power supply included ensures global compatibility, making it ideal for international deployments, remote sites, and multi-site networks that demand reliability and simplicity.

• Extended network reach over multimode fiber: Enable a long-haul Ethernet link by converting copper to fiber and transmitting up to 550 meters on multimode fiber with 850 nm signaling. This model helps you bypass copper distance limits while preserving full-duplex 10/100/1000 Mbps performance, delivering scalable bandwidth for data-intensive applications, video, and IP surveillance across campus or industrial sites.
• Gigabit copper-to-fiber interface: Features a single RJ-45 Ethernet port supporting 10/100/1000 Mbps with auto-negotiation, auto MDI/MDIX, and robust, unmanaged operation. No configuration is required; simply connect your device and the converter automatically negotiates the optimal speed for a fast, reliable link.
• SC multimode fiber port with 850 nm optics: The SC fiber interface is designed for multimode fiber with 850 nm signaling, a common choice for short- to mid-range fiber runs. This setup delivers low latency, high performance, and resistance to interference, ideal for networks where EMI may be a concern.
• Plug-and-play, unmanaged operation: The N785-INT-SC-MM is designed for ease of use—no management software or configuration is required. It’s a true zero-touch device that powers up quickly, with LED indicators to verify link status and activity, making installation straightforward for IT staff and technicians alike.
• International power supply for global deployment: The included international power supply supports global voltages and interchangeable plug adapters, enabling simple, reliable deployment in multinational campuses, remote sites, or branch offices without worrying about regional power compatibility.

Technical Details of Eaton N785-INT-SC-MM

• Model: N785-INT-SC-MM
• Ethernet interface: 1 x RJ-45 supporting 10/100/1000 Mbps
• Fiber interface: 1 x SC multimode fiber port (850 nm)
• Distance capability: Up to 550 meters (1,804 feet) over multimode fiber
• Power: International power supply included (100-240 VAC input)
• Package type: Unmanaged, plug-and-play media converter
• Standards: Supports standard Ethernet framing for 10/100/1000 Mbps networks; designed for reliable copper-to-fiber bridging

How to install Eaton Tripp Lite N785-INT-SC-MM

Follow these simple steps to deploy the N785-INT-SC-MM in your network:

• 1. Power off the devices you plan to connect, then connect a multimode fiber patch cord with an SC connector to the SC MM port on the converter.
• 2. Connect the other end of the fiber patch cord to your fiber segment or remote device located up to 550 meters away, ensuring the fiber type is multimode and compatible with 850 nm signaling.
• 3. Attach a standard Ethernet patch cable to the RJ-45 port on the converter and connect the other end to a network device (switch, router, or NIC) that operates at 10/100/1000 Mbps.
• 4. Plug the international power supply into a suitable outlet and power up the converter. The device is unmanaged and requires no configuration; LED indicators should reflect link activity and status.
• 5. Verify connectivity by checking the link status LEDs on the front panel and testing data transmission between the connected copper device and the far-end Ethernet device over the fiber link.
• 6. Position the converter in a clean, ventilated area. While it’s designed for reliability, avoid exposing it to extreme temperatures, moisture, or dust to preserve long-term performance.

Frequently asked questions

• What is the maximum distance this media converter supports? The N785-INT-SC-MM supports up to 550 meters (1,804 feet) over multimode fiber with 850 nm signaling using an SC connector. Distances beyond this require different fiber types or equipment designed for longer spans.
• Does it require any configuration? No. This is an unmanaged, plug-and-play device. It works with standard Ethernet devices and requires no firmware updates or management software for basic operation.
• What fiber type and connector are supported? It uses a multimode fiber interface with an SC connector and 850 nm optics. This is intended for multimode fiber runs typical in campus or data center environments. For single-mode deployments, use a different model designed for SMF.
• Can I cascade multiple media converters or integrate them into a larger network? Yes. Media converters like the N785-INT-SC-MM are commonly used to bridge copper Ethernet with fiber segments. Ensure network design accounts for latency and bandwidth needs when cascading devices, and verify fiber compatibility across links.
• What does the international power supply mean for my installation? The included power supply supports a wide input range (100-240 VAC) and is compatible with common plug styles used around the world, making it suitable for multinational sites and temporary deployments where regional power adapters are needed.
• What should I expect in terms of performance? You can expect reliable, unmanaged conversion between 10/100/1000 Mbps copper Ethernet and multimode fiber at 850 nm, with low latency suitable for typical LAN, surveillance, and office deployments. For maximum performance, pair with matched network equipment and quality fiber cabling.
• What is included in the package? The package typically includes the N785-INT-SC-MM media converter and an international power supply suitable for global use, along with basic documentation for installation and operation.
