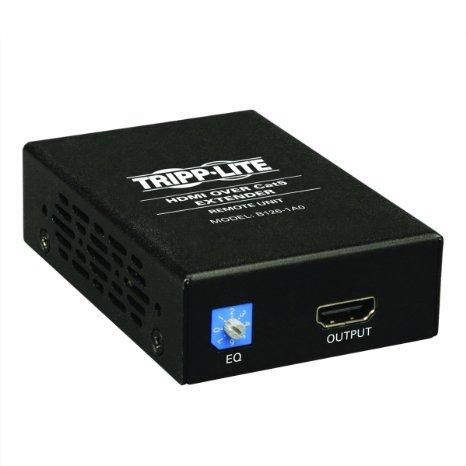

Eaton Tripp Lite Series HDMI over Cat5/6 Extender — Box-Style Remote Receiver, 150 ft (45 m), TAA

The Eaton Tripp Lite Series HDMI over Cat5/6 Extender is a cutting-edge solution designed to transmit high-definition HDMI video and audio signals across long distances with minimal signal loss. Engineered for versatility, this extender is perfect for immersive home theaters, classrooms, corporate boardrooms, digital signage, and other professional AV environments where placement flexibility and clean cable management matter. By leveraging standard CAT5e/6 cabling, it unlocks dramatic room layouts and reduces the need for expensive, point-to-point HDMI runs. This box-style remote receiver version provides a compact, durable end-point that can be mounted discreetly near the display, delivering crystal-clear video, rich audio, and dependable performance day after day. With industry-standard HDCP protection and easy setup, you can deploy a reliable AV distribution system with confidence.

• Long-distance HDMI delivery over Cat5e/6: Transmit high-definition HDMI video and multi-channel audio up to 150 ft (45 m) using standard CAT5e/6 cables, enabling flexible room layouts and simplified cabling in both residential and commercial settings.
• Box-style remote receiver for clean installations: The compact, rugged receiver mounts at the display end, keeps cables tidy, and reduces clutter behind the screen for a professional, finished look.
• HDCP protection and broad compatibility: Supports HDCP-protected content and works with a wide range of HDMI sources and displays, ensuring reliable playback of movies, games, presentations, and other media without hassles.
• Plug-and-play convenience: Designed for quick setup with minimal configuration. No complex driver installations are required in most setups, making it ideal for both DIY home theaters and turnkey AV installations.
• Rugged design with mounting options: Built to endure daily use, the unit features a sturdy enclosure and mounting provisions for rack, wall, or desk installations, delivering dependable performance in demanding environments.

Technical Details of Eaton Tripp Lite HDMI over Cat5/6 Extender

• Distance capability: Up to 150 ft (45 m) over CAT5e/6 cabling
• Video and audio support: Transmits HDMI video along with multi-channel audio to a remote display
• Remote receiver: Box-style receiver designed for easy mounting near the screen
• HDCP compatibility: HDCP-compliant for protected content distribution
• Compatibility: Works with standard HDMI sources and displays; supports EDID passthrough
• Power requirements: External power adapters required for transmitter and receiver units
• Construction: Durable metal enclosure with mounting provisions for rack, wall, or surface mounting
• Compliance: TAA-compliant for government and procurement use

How to Install Eaton Tripp Lite HDMI over Cat5/6 Extender

Begin by planning your layout to determine the best positions for the HDMI source, the CAT5e/6 link, and the remote receiver near the display. This extender uses standard network cabling, so you can repurpose existing runs or run new cables with minimal disruption. Follow these steps for a straightforward installation:

• Connect the HDMI source device (Blu-ray player, game console, streamer, or PC) to the transmitter’s HDMI input using a rated HDMI cable.
• Run a CAT5e/6 cable from the transmitter to the display location and connect it to the receiver’s CAT5e/6 input.
• Attach an HDMI cable from the receiver’s HDMI output to the display, ensuring a secure connection for pristine video and audio.
• Plug in and power both the transmitter and the remote receiver using their respective power adapters. Allow the units to initialize and establish the link.
• Power on the source and display, then test playback to verify video and multi-channel audio are being transmitted smoothly. If EDID passthrough is available, adjust as needed to optimize compatibility with your display.

Frequently asked questions

• What distance can I expect to cover with this HDMI over Cat5/6 extender? It supports reliable HDMI transmission up to 150 ft (45 m) using CAT5e/6 cables, enabling flexible placement of components across rooms or larger spaces without sacrificing signal quality.
• Will I be able to pass HDCP-protected content through the extender? Yes. The system is HDCP-compliant, allowing protected media from Blu-ray players, streaming devices, and other sources to be displayed on compatible screens.
• Do I need specialized cables or adapters? You can use standard CAT5e/6 network cables for the video link between transmitter and receiver, along with regular HDMI cables for source-to-transmitter and receiver-to-display connections.
• Is installation difficult for a non-technical user? Not at all. The extender is designed for plug-and-play operation with straightforward connections and minimal configuration, making it suitable for home users and AV professionals alike.
• Can I mount the remote receiver in different ways? Yes. The compact receiver is designed for versatile mounting options—rack, wall, or surface installation—so you can position the display exactly where you need it with clean cabling.
