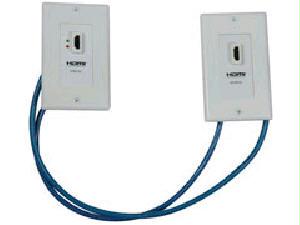

Eaton Tripp Lite Series HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA

The Eaton Tripp Lite Series HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver delivers a versatile, professional-grade solution for extending high-definition multimedia signals without compromising quality. This wall-plate kit is designed for clean, discreet installations in homes, conference rooms, classrooms, and retail environments. By transmitting HDMI signals over two Cat5e or Cat6 cables, it provides flexible placement of your source and display while maintaining pristine video and audio performance. With its TAA compliance, it’s a procurement-friendly choice for government and enterprise deployments, offering reliability, easy installation, and a polished aesthetic that fits into any decor.

• Dual Cat5/Cat6 transmission for flexible placement: This extender leverages two standard Ethernet cables to carry high‑definition video and digital audio from the HDMI source to the display. The dual-cable design improves stability over long runs and helps minimize signal loss in commercial or residential setups. It’s ideal for routing a source in a cabinet or rack while placing the display in a separate room or area, all without sacrificing picture clarity.
• Discreet wall‑plate design for professional installs: The transmitter and receiver modules are built into sleek wall plates that blend with existing electrical work. The compact form factor keeps wiring tidy and unobtrusive, making it perfect for conference rooms, classrooms, and showroom environments where aesthetics matter as much as performance. A clean, recessed installation reduces clutter and provides a polished, turnkey appearance.
• Complete transmitter and receiver kit for turnkey deployment: This package includes both a transmitter and a receiver, enabling a straightforward one‑to‑one connection between your HDMI source and your display. The kit eliminates guesswork and ensures compatibility between components, so you can set up quickly and start streaming high‑quality video and audio with minimal configuration. It’s compatible with a broad range of HDMI sources and displays, delivering dependable operation in diverse settings.
• HDMI with HDCP compliance and broad media support: The extender supports HDMI video and digital audio with HDCP protection, helping you maintain secure playback of protected content. Whether you’re delivering presentations, movies, or video conferencing feeds, you can rely on consistent color, depth, and detail. The system is designed to handle common AV formats, 3D content, and multichannel audio scenarios, ensuring a satisfying viewing experience across different screens and environments.
• Plug‑and‑play with universal compatibility and rugged reliability: Designed for easy installation, the kit requires no complex software or drivers. Connect your HDMI source to the transmitter, run two Cat5e/Cat6 cables to the receiver, and connect the receiver to your display. The wall-plate design, standard cabling, and straightforward setup translate to faster deployments and fewer service calls, whether you’re outfitting a new build or upgrading an existing setup.

Technical Details of Eaton Tripp Lite Series HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA

• Product type: HDMI over dual Cat5e/Cat6 extender wall plate kit with integrated transmitter and receiver.
• Includes: Transmitter wall plate, Receiver wall plate, mounting hardware, and matching bezels for a seamless, dual‑gang installation.
• Media and connectors: Uses two Cat5e/Cat6 cables for signal transmission; both ends feature standard HDMI input/output ports for easy connections to source and display devices.
• Compliance: TAA compliant, RoHS‑compliant, suitable for government and enterprise procurement.
• HDMI features: Supports HDMI video with digital audio; HDCP protection is supported to maintain secure content playback; compatible with common consumer AV formats including 3D content where supported by connected devices.
• Power and installation notes: External power may be required to ensure reliable operation over longer cable runs (power supplies are included with many configurations); wall plate design enables flush installation in standard electrical boxes.
• Environment and durability: Engineered for reliable performance in both residential and commercial environments; designed to withstand everyday use in classrooms, conference rooms, and display areas.

How to Install Eaton Tripp Lite HDMI over Dual Cat5/Cat6 Extender

• Prepare the source area: Place the HDMI source device (Blu-ray player, PC, media player, or other HDMI output) near the transmitter location. Ensure the area has access to power and a clean path for the Cat5e/Cat6 cables.
• Mount the transmitter: Install the transmitter wall plate in a standard double‑gang box near the HDMI source. Connect the HDMI output from the source device to the transmitter’s HDMI input using a standard HDMI cable.
• Run the cabling: Run two Cat5e or Cat6 cables from the transmitter location to the display location. Use good quality cables and avoid running parallel to high‑power lines to minimize interference; label the cables for easy identification.
• Mount the receiver: Install the receiver wall plate at or near the display location within a standard double‑gang box. Connect the HDMI input from the receiver to the display’s HDMI input using another HDMI cable, and then connect the display to the receiver’s HDMI output.
• Provide power: Connect the included power supplies to both transmitter and receiver if required by your specific model configuration. Powering both ends helps maintain a stable signal over longer cable runs.
• Test and finalize: Power on the source and display, then verify that the video and audio are transmitting correctly. If needed, adjust EDID settings or verify cable quality to optimize performance. Secure the wall plates, tuck away cables, and ensure the installation looks neat and professional.

Frequently asked questions

• What is the Eaton Tripp Lite HDMI over Dual Cat5/Cat6 Extender used for? It extends HDMI video and digital audio signals over two Cat5e/Cat6 cables, allowing flexible placement of source and display devices for clean, professional AV installations in homes and commercial spaces.
• Do I need two Cat5e/Cat6 cables? Yes. The extender relies on dual Cat5e/Cat6 cables to carry the HDMI signal between the transmitter and receiver, providing improved signal integrity over longer distances and reducing potential interference compared to using a single cable alone.
• What resolutions are supported? HDMI extenders of this type typically support standard high‑definition resolutions and common consumer formats; actual performance depends on the source, display, and cable quality. For precise specifications, consult the product’s official documentation or your reseller’s technical sheet.
• Is HDCP supported? Yes. The extender is designed to maintain HDCP compliance for protected content, ensuring compatibility with Blu‑ray discs, streaming services, and other HDCP‑protected sources when connected to compliant displays.
• Is this product suitable for commercial deployments? Absolutely. With TAA compliance and a wall‑plate design that delivers a neat, professional look, this extender is well suited for conference rooms, classrooms, and retail environments where a clean, reliable HDMI extension is required.
• Do I need any software or drivers? No. This is a plug‑and‑play AV solution that uses standard HDMI cables and Ethernet‑style video transmission. No drivers are required, which simplifies installation and ongoing maintenance.
