Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure

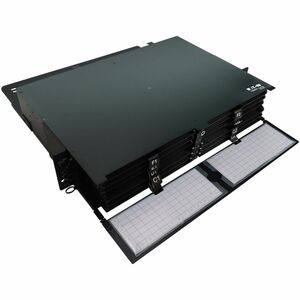

In demanding network environments, efficiency, organization, and adaptability are non-negotiable. The Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure is engineered to deliver on all fronts, providing a scalable, space-saving solution for complex fiber architectures. This high-density enclosure is ideal for data centers, enterprise campuses, telecom rooms, and field deployments where rapid reconfiguration and precise fiber management are critical. The design centers on modularity and on-site versatility, empowering your team to adjust cable lengths and connection types without sacrificing performance or reliability. With 12 splicing cassettes, each pre-loaded with 24 unterminated cables, this panel delivers substantial flexibility—giving you the freedom to tailor terminations to specific routes, distances, and terminal equipment directly at the installation site. The compact 2U footprint pairs with 1.5-meter pigtails to accommodate a range of distances while maintaining clean routing and organized cable management. This enclosure is a forward-thinking solution for organizations seeking to future-proof their fiber infrastructure, enabling easier upgrades, expansions, and maintenance while preserving optimal signal integrity and neat cabling aesthetics.

• Maximum on-site flexibility: This high-density fiber splice enclosure comes with 12 cassettes, each pre-loaded with 24 unterminated cables, enabling you to tailor cable lengths and connection types directly on-site. The result is less pre-fabrication, faster deployment, and easier adaptation to changing network requirements. A total of 288 potential terminations on a single enclosure gives engineers a robust, scalable path for evolving networks without swapping components.
• Compact, space-saving design for high-density environments: The 2U rack-mountable enclosure delivers significant fiber capacity without consuming valuable rack space. It is purpose-built for data centers, wiring closets, and telecom rooms where maximizing usable area is essential. The streamlined form factor keeps pathways clear and airflow unimpeded, helping you maintain performance in cooled environments where dense fiber management is a must.
• LC/UPC single-mode connectivity with 0.9 mm fiber: This enclosure is designed to accommodate LC/UPC connectors on single-mode (SM) fiber with a 0.9 mm cable jacket. The combination of LC/UPC compatibility and SM fiber supports long-haul performance with low insertion loss, making it suitable for backbone networks, backbone-to-switch links, and high-precision data transfer applications. The 1.5-meter pigtails provide ample length for flexible routing to patch panels or terminal equipment.
• Pre-loaded cassettes to reduce installation time: Each cassette ships ready to use with unterminated cables, minimizing field prep and configuration time. Pre-loading accelerates deployment while preserving tidy, organized cabling inside the enclosure. This approach helps technicians avoid delays caused by sourcing and terminating individual components in the field, leading to faster project completion and fewer on-site errors.
• On-site adjustability for long-term reliability and expansion: The panel’s design prioritizes on-site adjustability for both cable lengths and connection types, enabling straightforward future upgrades and network changes. Whether adding new links, rerouting traffic, or reconfiguring endpoints, you can adapt quickly without replacing the entire enclosure. This capability is particularly valuable in evolving environments such as data centers undergoing scale-outs or campuses migrating to upgraded fiber tiers.

Technical Details of Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure

• Number of splicing cassettes: 12
• Fiber capacity: 288 LC/UPC SM fibers (0.9 mm) across all cassettes
• Pigtail length: 1.5 meters
• Enclosure format: 2U rack-mountable panel
• Connector type: LC/UPC
• Fiber type: Single-mode (SM)
• Cassette configuration: 12 independently accessible cassettes, each pre-loaded with 24 unterminated cables
• Cable management: Integrated pathways and routing features designed for on-site length adjustments and tidy termination layouts

How to install Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure

• Prepare the workspace: verify rack compatibility and ensure you have appropriate mounting rails and hardware for a standard 2U enclosure.
• Mount the enclosure: secure the panel to the rack, ensuring level installation and proper clearance for front and rear access to cassettes and cabling.
• Plan fiber routing: map the trunk cables, pigtails, and cassette locations to minimize bending radii and simplify labeling for maintenance and future upgrades.
• Install pre-loaded cassettes: position each cassette within its designated bay, connect the pre-loaded unterminated cables to the appropriate trunk and pigtails, and verify cassette alignment.
• Terminate and test: perform field terminations on the LC/UPC connectors as required, then perform loss and continuity tests to confirm integrity across all channels.
• Route and label: neatly organize cables within the cassette frames, apply consistent labeling for connectors, and secure labeling for future service checks.
• Document configurations: capture the final wiring map, cassette assignments, and any non-standard cable lengths to streamline future maintenance or upgrades.

Frequently asked questions

• Q: What makes this enclosure “high-density”? A: It accommodates 12 splicing cassettes and up to 288 LC/UPC SM fibers in a compact 2U footprint, enabling extensive fiber terminations without expanding rack space.
• Q: Can cable lengths be adjusted on-site? A: Yes. The design supports on-site adjustment of cable lengths and connection types to match specific routing needs and evolving network requirements.
• Q: Which fiber and connectors are supported? A: The enclosure is configured for single-mode (SM) fiber with LC/UPC connectors and 0.9 mm jackets, paired with 1.5 meter pigtails for flexible terminations.
• Q: Is the enclosure compatible with standard 19-inch racks? A: Yes. The unit is designed for standard 19-inch racks and occupies 2U of rack height for convenient integration into existing data center or equipment room setups.
• Q: How does this enclosure help with future upgrades? A: Its modular, cassette-based layout and on-site adjustability allow you to reconfigure terminations, expand capacity, or reroute connections without replacing the entire enclosure, reducing downtime and permitting incremental growth.
