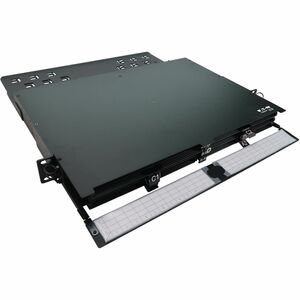

Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure - 6 Splicing Cassettes, 144 LC/UPC SM 0.9 mm, 1.5 m Pigtail, 1U Rack

Tripp Lite by EatonSKU: 9611539

Price:
Sale price$2,313.28

Description

Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure

Optimize your data-center and telecom backbone with the Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure. This advanced enclosure is designed for high-density fiber management, giving you on-site flexibility to adjust cable lengths and connection types as your infrastructure evolves. With six cassettes pre-loaded with unterminated cables, you gain immediate adaptability to reconfigure splicing layouts without costly replacements or downtime. Built to fit in a standard 19-inch rack, this 1U panel delivers a compact footprint that maximizes space efficiency while maintaining robust warmth, airflow, and cable organization critical in modern networks. Whether you’re deploying enterprise data centers, campus networks, or service-provider backbones, this enclosure provides a scalable, serviceable solution that keeps fiber paths clean, protected, and easy to troubleshoot.

  • High-density 1U rack-mount design: Maximizes fiber capacity in a compact footprint. The 1U form factor fits neatly into standard 19-inch racks, enabling dense deployments without sacrificing accessibility or serviceability. This design streamlines cable routing, improves airflow, and reduces rack space usage in data centers, labs, and telecom rooms.
  • Six versatile splicing cassettes, each pre-loaded with 24 unterminated cables: You gain on-site flexibility to tailor cable lengths and connection types as requirements change. The cassette-based approach simplifies reconfiguration, minimizes disruptions, and speeds up maintenance by letting technicians swap or re-terminate segments without dismantling the entire panel.
  • 144 LC/UPC single-mode (SM) 0.9 mm connections with 1.5 m pigtails: The enclosure supports a dense LC/UPC fiber ecosystem, using tight-buffered 0.9 mm cables to deliver reliable, low-loss terminations. The included 1.5 m pigtails provide convenient, ready-to-terminate leads that reduce field cabling complexity and help maintain stable optical performance over time.
  • Durable, serviceable construction for demanding environments: Crafted for rack-mount installations in data centers, witnessing environments, and network closets, the enclosure combines rugged metal housing with thoughtful internal layout. Expect protected splice trays, secure lid access, and organized pathways that minimize bend radii and cable stress, contributing to long-lasting performance and simpler maintenance.
  • Flexible on-site cable management and future-proofing: The design emphasizes straightforward reconfiguration and scalable growth. On-site adjustments to cable lengths and terminations reduce the need for extensive rewiring and downtime, enabling rapid responses to changing topology, new links, and evolving service requirements while preserving signal integrity.

Technical Details of Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure

  • Splicing capacity: 6 cassettes, enabling high-density fiber management within a single 1U enclosure.
  • Cassette configuration: Six modular cassettes, each pre-loaded with 24 unterminated 0.9 mm SM fibers.
  • Fiber type and connectors: 144 LC/UPC connections for single-mode (SM) fiber, offering low insertion loss and stable performance.
  • Fiber compatibility: 0.9 mm tight-buffer cables designed for flexible routing and reliable terminations in constrained spaces.
  • Pigtail length: 1.5 meters per pigtail, providing ample length for routing and connection to splice trays or adapters.
  • Rack and enclosure format: 1U, 19-inch rack-mountable panel suitable for standard data-center racks; compact yet capable of high-density fiber management.
  • Construction: Durable metal enclosure engineered to withstand common data-center conditions and to protect delicate fiber terminations.
  • Internal organization: Integrated pathways and cassette-based splicing trays to keep fibers orderly, reduce crosstalk, and simplify maintenance.
  • Applications: Ideal for enterprise networks, data centers, telecom rooms, and high-density fiber backbones needing quick, on-site reconfiguration.

How to install Eaton Tripp Lite Series High-Density Panel Fiber Splice Enclosure

  • Plan your fiber routing and designate splice points before mounting. Review your network topology and map cassette positions to minimize crossing and bending of fibers.
  • Mount the enclosure in a standard 19-inch rack using the supplied mounting hardware and ensure the unit is level and securely fastened to support the cables and cassettes.
  • Install the six cassettes in their designated slots. Confirm that each cassette is properly seated and that access remains unobstructed for future maintenance and reconfiguration.
  • Terminate 144 LC/UPC SM 0.9 mm fibers to the appropriate cassette positions. Utilize the included 1.5 m pigtails as needed to connect to splice trays, adapters, or patch panels, maintaining proper bend radii and tidy cable management.
  • Label all connections and document the fiber paths. Perform optical testing (such as OTDR or OLTS) to verify connectivity, loss, and integrity across each cable run, then seal and secure the enclosure to prevent dust and accidental disturbances.
  • Establish a routine maintenance plan to inspect cassettes, pigtails, and connectors, and track any changes in topology or utilization to preserve long-term network reliability.

Frequently asked questions

  • What is the primary purpose of the Eaton Tripp Lite High-Density Panel Fiber Splice Enclosure? It provides a compact, scalable solution for organizing and interconnecting a high volume of fiber Terminations, with six cassettes that can be configured on-site to match evolving network needs while preserving signal integrity.
  • How many fiber terminations can this enclosure accommodate? The design includes six cassettes, each pre-loaded with 24 unterminated cables, delivering 144 LC/UPC SM fiber terminations in a structured, high-density layout.
  • What type of fiber and connectors are supported? The enclosure supports single-mode (SM) fiber with LC/UPC connectors, using 0.9 mm tight-buffer cables for reliable terminations and consistent optical performance.
  • What are the key installation considerations? Plan routing to minimize bending, ensure proper mounting in a standard 19-inch rack, verify cassette seating, terminate with appropriate pigtails, label connections, and perform post-termination testing to confirm performance before commissioning.
  • Is this enclosure suitable for data centers and telecom rooms? Yes. Its high-density, modular cassette design and rack-mount compatibility make it ideal for data centers, enterprise networks, campus backbones, and service-provider environments where space efficiency and on-site configurability are critical.
