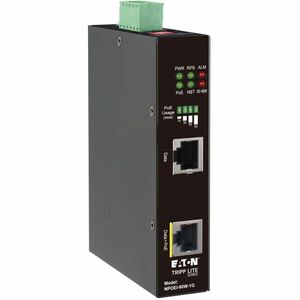

Eaton Tripp Lite Industrial Gigabit PoE Injector – 90W PoE++ (802.3bt)

Power your PoE devices efficiently and reliably with the Eaton Tripp Lite Series Industrial Gigabit Ethernet PoE injector. This rugged midspan injector delivers up to 90W of PoE power per port under IEEE 802.3bt PoE++, enabling you to deploy high-demand devices such as outdoor IP cameras, wireless access points, VoIP phones, smart lighting, and more, all on a single gigabit Ethernet link. Designed for industrial environments, it combines robust performance with flexible installation options, making it an ideal solution for manufacturing floors, warehouses, campuses, and remote locations where network reliability and resilience are non-negotiable. With IP30 protection, wide DC input tolerance, and DIN rail mounting, this injector is built to endure heat, dust, and varying temperatures from -40°C to +75°C while maintaining stable power delivery and data integrity across your network.

• High-power PoE++ support — Delivers up to 90W of PoE power on a single port, enabling high-demand devices such as 4K surveillance cameras, multi-radio wireless access points, and power-hungry IP devices to operate without a separate power supply or a PoE switch.
• IEEE 802.3bt (PoE++) compatibility — Fully compatible with the latest PoE standard while remaining backward-compatible with earlier PoE devices, providing maximum device compatibility and future-proofing for evolving networks.
• Industrial midspan design — Adds PoE capability to non-PoE switches by injecting power over Ethernet, making it ideal for retrofit deployments, large-scale surveillance, and point-to-point IP device installations across diverse environments.
• Rugged, weather-tolerant housing — IP30-rated enclosure protects critical electronics from dust and harsh conditions, ensuring reliable operation in industrial spaces and outdoor-adjacent installations where exposure to particulates is common.
• Wide input and mounting options — Dual 24-57V DC inputs and secure DIN rail mounting offer flexible power configurations and streamlined integration into existing racks and panels for quick, tidy installations.

Technical Details of Eaton Tripp Lite Industrial Gigabit PoE Injector

• PoE Standard: IEEE 802.3bt PoE++
• Power Output: 90W PoE for the powered device
• Port: 1 Gigabit Ethernet PoE port
• Data Rate: Gigabit Ethernet (1 Gbps)
• Input Voltage: Dual 24-57V DC
• Operating Temperature: -40°C to +75°C
• Enclosure: IP30
• Mounting: DIN Rail
• Protection/Compliance: TAA-compliant
• Architecture: Midspan PoE injector designed to augment non-PoE network switches

How to Install Eaton Tripp Lite Industrial PoE Injector

• Mount the injector on a DIN rail inside your equipment enclosure or panel using the integrated DIN rail clips for secure, vibration-resistant installation.
• Connect your non-PoE switch to the injector’s data input port and route the PoE-enabled output to the powered device (e.g., IP camera, AP, or VoIP phone) to receive both data and power over a single Ethernet cable.
• Apply dual DC power within the 24-57V range to the injector’s input terminals to provide the necessary PoE power budget and support redundancy, if configured.
• Ensure appropriate cooling and ventilation around the IP30 enclosure to maintain optimal operation in hot or dusty industrial spaces.
• Power up the system and verify operation using device status indicators and end-device link status to confirm both data connectivity and PoE power delivery.

Frequently asked questions

• Q: What devices can I power with this PoE injector?

  A: This injector supports up to 90W PoE++ per port, suitable for high-power devices such as outdoor surveillance cameras, high-capacity wireless access points, VoIP phones, and smart lighting that require IEEE 802.3bt power.

• Q: Do I need a PoE-enabled switch?

  A: No. This is a midspan PoE injector that enables PoE on a non-PoE switch by injecting power onto the Ethernet data line, expanding PoE capabilities without replacing your existing switch.

• Q: Is it backwards compatible with older PoE standards?

  A: Yes. While it provides 90W for PoE++ devices, it remains compatible with devices using older PoE standards (IEEE 802.3af/at), ensuring broad device support and phased-upgrade potential.

• Q: What are the operating conditions?

  A: The injector is designed for industrial environments with a broad operating temperature range of -40°C to +75°C and an IP30 enclosure to protect against dust and particulates.

• Q: Is this unit suitable for DIN rail installations?

  A: Absolutely. The injector is specifically designed for DIN rail mounting, making it easy to integrate into standard control panels and equipment racks.
