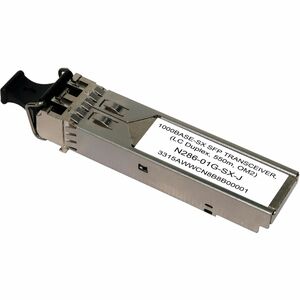

Eaton Tripp Lite Series Juniper-Compatible EX-SFP-1GE-SX SFP Transceiver - 1000Base-SX, LC Duplex MMF, 1.25 Gbps, 850 nm, 550 m

Experience reliable, high-performance fiber connectivity for Juniper networks with the Eaton Tripp Lite EX-SFP-1GE-SX SFP transceiver. This Juniper-compatible module is designed to deliver sturdy, consistent 1.25 Gbps data transfer over multimode fiber, making it ideal for connecting switches, routers, and servers in enterprise and data-center environments. Utilizing an 850 nm laser wavelength and an LC duplex connector, it supports 1000Base-SX operation across MMF cabling up to 550 meters (1804 feet), enabling flexible short-to-mid-range link deployments. The rugged zinc housing enhances durability, safeguarding the internal components from everyday wear and tear in busy IT spaces. Whether you’re upgrading an existing Juniper deployment or building a new fiber backbone, this transceiver provides a dependable, plug-and-play solution that fits seamlessly into compatible devices.

• Seamless Juniper compatibility and plug-and-play deployment: Specifically engineered to work with Juniper switches and servers, this EX-SFP-1GE-SX module drops into standard SFP ports with minimal configuration, simplifying upgrades and maintenance while reducing downtime.
• Reliable 1.25 Gbps performance (1000Base-SX): Supports gigabit-class speeds over multimode fiber, delivering consistent throughput for VLANs, data replication, server-to-switch links, and other critical enterprise workloads.
• 850 nm wavelength over multimode fiber (MMF) with LC duplex connection: Optimized for short-to-mid-range links, this transceiver uses a common, widely supported MMF optical solution and a durable LC duplex interface for straightforward fiber terminations.
• Up to 550 meters (1804 feet) reach on MMF: Ideal for data center wiring closets, campus networks, and internal cabling where cables span across rooms or between equipment racks without penalties in signal quality.
• Rugged zinc housing and reliable construction: The robust zinc alloy housing provides mechanical protection and durability in demanding environments, helping maintain long-term performance in busy network environments.

Technical Details of Eaton Tripp Lite Series Juniper-Compatible EX-SFP-1GE-SX SFP Transceiver

• Model: EX-SFP-1GE-SX
• Type: SFP Transceiver
• Data Rate: 1.25 Gbps (1000Base-SX)
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Distance: Up to 550 meters (1804 feet) on MMF
• Connector: LC duplex
• Form Factor: SFP transceiver module
• Housing: Zinc alloy for rugged protection
• Compatibility: Juniper network switches and servers supporting 1000Base-SX

how to install Eaton Tripp Lite Series Juniper-Compatible EX-SFP-1GE-SX SFP Transceiver

Installing the EX-SFP-1GE-SX transceiver is a straightforward process that follows standard SFP insertion practices. While many SFP modules are hot-swappable in modern equipment, always refer to your device’s maintenance guidelines if you’re unsure about powering down equipment. Below is a comprehensive, practical guide to ensure a secure, reliable installation and immediate link establishment.

Preparation and safety

1) Identify the correct SFP port on your Juniper switch, router, or server. Ensure the port is designated for 1000Base-SX operation and supports MMF connectivity. 2) Inspect the fiber optic cabling to confirm it is MMF with LC duplex connectors that match the transceiver’s interface. 3) Handle the transceiver by its edges and avoid touching the electrical contacts or optical surfaces to prevent static discharge or surface contamination. 4) If your equipment vendor recommends powering down for safety, do so before insertion; otherwise, plan for a hot-swapping operation during a maintenance window to minimize disruption.

Insertion and connection

5) Align the EX-SFP-1GE-SX module with the SFP port, ensuring the connection is straight and fully aligned with the port. 6) Gently push the module into the port until you hear or feel a secure click, indicating a proper latch. 7) Attach the LC duplex MMF fiber cable to the transceiver’s LC duplex connector on one end and to the corresponding device’s fiber interface on the other end. Ensure the fiber is clean and free of dust; use appropriate fiber cleaning tools if needed to avoid signal loss caused by contamination. 8) Do not force the fiber; it should seat smoothly with a snug, secure fit to prevent connector movement that could degrade signal quality.

Verification and configuration

9) Power up the device (if powered down) and observe the link indicators on both the transceiver and the device’s management interface. A healthy link通常 appears as an active light on both ends of the connection, along with a functional speed indicator. 10) Access the Juniper device’s interface configuration to confirm the 1000Base-SX interface is enabled and correctly associated with the connected port. 11) If applicable, verify the interface state, speed, duplex, and any fiber-related parameters. 12) Test basic traffic by sending a small data flow or running a diagnostic ping to ensure the connection is transmitting and receiving data without errors. 13) Keep the fiber endpoints organized and labeled for future maintenance and troubleshooting.

Post-install considerations

14) Document the installation details, including the port, device model, fiber cable type, and fiber length, to streamline future upgrades or replacements. 15) Periodically inspect the physical installation for signs of wear, loose cables, or environmental changes that might impact signal quality. 16) Remember that fiber performance can be influenced by connector cleanliness, fiber bend radius, and proper cable management; adhere to recommended bend radii and avoid excessive kinks. 17) If performance issues arise, re-check the fiber connections, reseat the transceiver, and consult the device’s logs for any port errors or discarded frames. This disciplined approach minimizes troubleshooting time and helps maintain sustained network performance.

Frequently asked questions

• Q: What is the EX-SFP-1GE-SX, and what does it do?
  A: The EX-SFP-1GE-SX is a Juniper-compatible SFP transceiver designed for 1000Base-SX operation over multimode fiber. It provides a 1.25 Gbps data rate with an 850 nm wavelength and a 550-meter reach, using an LC duplex connector to attach to compatible Juniper switches, routers, or servers.
• Q: Which cables and connectors are required for this transceiver?
  A: This transceiver uses multimode fiber (MMF) with an LC duplex connector. It is intended for MMF networks and supports standard short-to-mid-range fiber links commonly used in enterprise, data-center, and campus environments.
• Q: Is this transceiver hot-swappable?
  A: In many Juniper environments, SFP modules are hot-swappable, allowing you to replace or upgrade without powering down the entire device. Always follow your vendor’s guidelines for maintenance windows and device-specific recommendations.
• Q: What devices is this transceiver compatible with?
  A: It is designed to be compatible with Juniper network switches and servers that support 1000Base-SX SFP modules. Before purchase, verify that your device’s SFP port supports 1000Base-SX operation and MMF connectivity.
• Q: How can I maximize reliability with this transceiver?
  A: To maximize reliability, use high-quality multimode fiber with clean, properly seated LC connectors, keep fiber lengths appropriate for the 550 m reach, avoid excessive bending, and maintain proper cable management. Regularly inspect ports and apply standard preventive maintenance to sustain performance over time.
