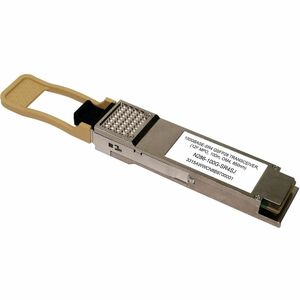

Eaton Tripp Lite Series Juniper-Compatible JNP-QSFP-100G-SR4 QSFP28 Transceiver

This high-performance QSFP28 transceiver is designed to empower Juniper networks with reliable, dense 100G connectivity. The JNP-QSFP-100G-SR4 supports 100GBase-SR4 over multimode fiber (MMF) to connect data-center switches, servers, or routers with outstanding data throughput and minimal latency. Built to meet demanding data-center standards, it delivers up to 100 Gbps of aggregate bandwidth over short-reach segments, making it ideal for rack-to-rack or spine-leaf deployments where high-speed, low-latency interconnects matter most. Its Juniper compatibility ensures seamless integration into Juniper environments, reducing deployment risk and simplifying network upgrades.

• 100GBase-SR4 QSFP28 transceiver for multimode fiber (MMF) with MTP/MPO connectors, delivering up to 100 Gbps over short-reach links up to 100 meters at 850 nm.
• Juniper-compatible JNP-QSFP-100G-SR4 module designed for hassle-free integration with Juniper network switches and servers, enabling rapid modernization of your fabric without platform changes.
• Durable zinc housing provides rugged protection, EMI shielding, and robust mechanical stability in dense data-center racks and harsh operating environments.
• Plug-and-play QSFP28 form factor supports hot-swapping in standard QSFP28 slots, enabling flexible maintenance windows and minimizing downtime during upgrades.
• Optimized optical performance with low insertion loss and high signal integrity to support demanding multi-tenant, cloud, and enterprise workloads across data centers.

Technical Details of Eaton Tripp Lite Series Juniper-Compatible JNP-QSFP-100G-SR4 QSFP28 Transceiver

• Interface: QSFP28
• Data rate: 100 Gbps
• Fiber type: Multi-Mode Fiber (MMF)
• Optical standard: 100GBase-SR4
• Wavelength: 850 nm
• Distance: Up to 100 m (328 ft)
• Connector: MTP/MPO
• Form factor: QSFP28
• Compatibility: Juniper-compatible (JNP-QSFP-100G-SR4)
• Housing: Zinc

How to Install Eaton Tripp Lite Series Juniper-Compatible JNP-QSFP-100G-SR4 QSFP28 Transceiver

1. Power down the host device or verify hot-swapping guidelines with your equipment vendor. If your network device supports hot-swapping, you can proceed without powering down, but ensure you follow your organization’s change-control procedures.

2. Remove any existing transceiver from the QSFP28 slot with care, or prepare the empty slot for installation. Align the module with the slot orientation, ensuring the optical face is oriented correctly for your fiber cabling plan. Gently slide the transceiver into the slot until the internal latch engages securely.

3. Prepare your MMF cable with a clean MTP/MPO connector. Verify fiber polarity and cleanliness to prevent end-face contamination, which can degrade link integrity. Insert the MMF cable into the transceiver’s MTP/MPO receptacle until it seats firmly and the connector latching mechanism confirms proper engagement.

4. Reconnect power or trigger the device’s hot-swap sequence, and monitor the link status indicators on the host device. Use your network management software or the device’s CLI/GUI to confirm that the transceiver is recognized as 100GBase-SR4 and that the channel shows an active link with acceptable signal strength.

5. Perform a basic connectivity test, such as a loopback or throughput test, to verify end-to-end data transmission. Validate that the 100 Gbps path remains stable under expected traffic patterns and that the MMF link length and fiber quality meet your design requirements. If any alarms appear, recheck fiber connections, polarity, and ensure the device firmware is up to date for optimal SR4 operation.

Frequently asked questions

• Q: Is this transceiver compatible with Juniper switches and routers?
  A: Yes, it is designed to be Juniper-compatible and aligns with the JNP-QSFP-100G-SR4 standard, enabling seamless integration into Juniper-based networks without special adapters or drivers.
• Q: What fiber type and distance does this transceiver support?
  A: It uses multimode fiber (MMF) and supports up to 100 meters (328 feet) at 850 nm for 100GBase-SR4 links, which is typical for short-reach data-center topologies.
• Q: Which connector type is used?
  A: The module employs standard MTP/MPO connectors for high-density MMF cabling, allowing efficient fiber management in dense racks and cabinets.
• Q: Does this transceiver require special drivers or firmware?
  A: In most Juniper deployments, the transceiver is auto-detected by the device firmware. It’s recommended to keep the device firmware up to date to ensure maximum compatibility and performance with SR4 modules.
• Q: What are the key benefits of choosing this Juniper-compatible transceiver?
  A: It provides a reliable, high-bandwidth 100 Gbps link over MMF for short-reach interconnects, with a rugged zinc housing for durability, plug-and-play installation for quick upgrades, and seamless Juniper compatibility to minimize deployment risk.
• Q: Is there anything I should watch for during installation?
  A: Ensure clean fiber surfaces, verify connector polarity, and follow hot-swapping guidelines. Confirm that the transceiver is properly seated in the QSFP28 slot and that the fiber connectors are firmly connected to prevent intermittent link issues.
