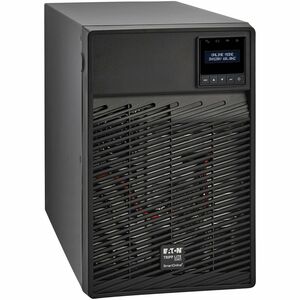

Eaton Tripp Lite SmartOnline Series: 120V 700VA Double-Conversion UPS

Protect critical equipment and data with the Eaton Tripp Lite SmartOnline UPS — a true online, double-conversion uninterruptible power supply designed for sensitive servers, networking gear, and workstations. This 120V unit delivers dependable power conditioning, rapid response to outages, and intelligent management features that minimize downtime and data loss. Built for tower deployments, it combines robust protection with a user-friendly interface, making it a trusted backbone for small to mid-size business networks and home labs alike.

• Advanced online double-conversion technology guarantees pristine output by continuously converting incoming AC to DC and then re-creating a fully regulated sine-wave AC output. This constant on-line operation isolates sensitive electronics from all power disturbances, including brownouts, power surges, and transient spikes, so servers and storage systems stay online and data integrity is preserved even during disruptive events.
• Reliable 120V operation with six outlets in a tower configuration provides comprehensive protection for essential equipment in a compact footprint. With six outlets on a single, space-efficient unit, you can power critical servers, network appliances, and workstations while keeping nonessential devices on a separate supply for optimized battery usage during an outage.
• Rich management and connectivity options include an LCD display for at-a-glance status, a USB port, and a DB9 interface for legacy management. The UPS is designed to accept a Network Card Option, enabling remote monitoring, graceful shutdowns, event logging, and centralized control across your IT environment — ideal for distributed networks or remote sites that require proactive power management.
• Designed for easy installation and serviceability with a practical tower form factor, front-accessible maintenance features, and a straightforward setup. This means quicker deployment in offices, data rooms, or lab environments, plus simple battery service and replacement to minimize downtime during maintenance windows.
• Energy-conscious operation and reliability help minimize downtime while protecting your investments. The SmartOnline series is built to deliver clean, regulated power consistently, reducing the risk of data corruption and hardware wear from power irregularities, and helping you maintain business continuity during routine power events and outages.

Technical Details of Eaton Tripp Lite SmartOnline 120V 700VA 630W Double-Conversion UPS

• Topology: Online, double-conversion UPS (true online protection with regulated output)
• Input voltage: 120 VAC (nominal)
• Output voltage: 120 VAC, fully regulated sine wave
• Rated capacity: 700 VA / 630 W
• Form factor: Tower design for desktop or floor-standing installation
• Outlets: 6 outlets to protect critical equipment and surge-sensitive devices
• Display: LCD for real-time status, measurements, and configuration
• Management interfaces: USB and DB9 (serial) ports; Network Card Option available for remote monitoring and controlled shutdowns
• Networking and management features: Supports network-based management when the Network Card Option is installed, enabling centralized power protection and event reporting across systems
• Protection features: Power conditioning, short-circuit protection, and isolation from input disturbances to safeguard sensitive equipment
• Certifications: Built to meet common reliability and safety standards (specific certifications may vary by region)

How to install Eaton Tripp Lite SmartOnline 120V 700VA UPS

• Choose a suitable location: Place the UPS on a stable, level surface with adequate ventilation. Ensure it is not in direct sunlight or near heat sources, and keep away from moisture or dust for optimal performance and longevity.
• Unpack and inspect: Remove packaging, verify that all components are present (unit, manual, cables), and inspect for any shipping damage. Keep the original packaging in case you need to transport the unit again.
• Connect to a proper power source: Plug the UPS into a dedicated wall outlet that matches the 120V input specification. Avoid using power strips or extension cords for the main input connection to prevent voltage drop and ensure proper protection.
• Attach and configure peripherals: Connect your critical equipment (servers, networking devices, storage devices) to the six protected outlets. If you plan to use a Network Card Option, install it per the instruction manual and connect the management network if applicable.
• Power up and configure: Turn on the UPS and follow the LCD prompts to configure basic settings, alarms, and shutdown parameters. Set the load level to ensure adequate runtime and responsiveness to outages. Run a quick self-test to verify basic operation.
• Set up management and monitoring: If you installed the Network Card Option, configure IP settings and access the UPS through your network management system. Enable graceful shutdown for connected devices to protect data during extended outages.
• Maintenance and battery care: Schedule periodic self-tests and battery health checks, especially if it has been in use for several years. Replace batteries as recommended by the manufacturer to maintain reliable runtime and performance.

Frequently asked questions

• What is the difference between online double-conversion and offline UPS systems? An online double-conversion UPS continually converts AC input to DC and then regenerates a clean, regulated sine-wave output. This provides superior protection against voltage sags, surges, and electrical noise, ensuring constant power quality for sensitive equipment, unlike offline or standby UPS units that switch to battery power only during disturbances.
• Can I add a Network Card Option to this UPS? Yes. The SmartOnline series is designed to support a Network Card Option for remote management, monitoring, and controlled shutdowns. This enables centralized power protection for multiple devices and sites.
• How many outlets does the unit have and what kind of devices should I protect? The unit provides six outlets for critical devices such as servers, switches, routers, storage appliances, and other essential IT gear. Reserve non-critical equipment for a separate outlet bank if possible to optimize runtime during an outage.
• What kind of battery service is required? Battery service intervals and replacement requirements vary by model and usage. Regular self-tests are recommended to monitor battery health, and replacement intervals should follow the manufacturer’s maintenance schedule to ensure reliability and adequate runtime.
• Is this UPS suitable for tower installation and compact spaces? Yes. The tower form factor is designed for convenient placement on desks, racks with a stand, or floor-standing setups, making it a versatile choice for offices, data rooms, or home labs where space is at a premium.
