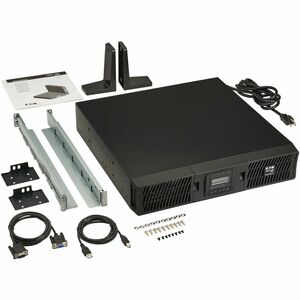

Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Online UPS – 8 Outlets, LCD, Extended Run, Network Card Included

Protect your critical equipment and safeguard data with the Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS. This online UPS delivers pristine, continuous power by converting incoming AC to DC and then reconverting it to a fully regulated sine-wave output. With eight outlets, an LCD display, a network management card included, USB and DB9 connectivity, and a versatile 2U rack/tower form factor, it’s engineered to minimize downtime, reduce the risk of data loss, and keep servers, storage devices, and networking gear running smoothly through outages, surges, and brownouts.

• Online double-conversion technology provides continuous, clean power and isolates connected equipment from grid disturbances, ensuring stable performance for servers, storage, and network devices.
• High-capacity 1500 VA / 1350 W output supports critical loads with reliable runtime, making it ideal for data centers, telecom rooms, and remote office deployments.
• Extended Run options with battery flexibility help maximize uptime during extended outages, allowing graceful shutdowns and uninterrupted service for essential applications.
• Integrated management features include a Network Card, LCD display, plus USB and DB9 interfaces for local and remote monitoring, configuration, and unattended operation.
• Flexible deployment in a 2U rack or tower configuration with 8 outlets provides convenient, scalable protection for a wide range of equipment in data closets, server rooms, or IT cabinets.

Technical Details of Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS – 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower

• Capacity: 1500 VA / 1350 W
• Input Voltage: 120 V nominal (AC input)
• Output Voltage: 120 V nominal, regulated sine wave
• Topology: Online double-conversion (true online) UPS
• Outlets: 8 load outlets for protected equipment
• Display: LCD for real-time status, load, input/output parameters
• Communication: USB and DB9 serial connections; Network Card included for remote management
• Management: Network management capabilities via the included network card; local monitoring via LCD
• Form Factor: 2U rack-mountable or stand-alone tower configuration for flexible installation

how to install Eaton Tripp Lite Series SmartOnline 1500VA 1350W 120V Double-Conversion UPS

• Plan your installation in a cool, dry, well-ventilated area with adequate clearance for airflow around the UPS and battery compartment.
• Choose a mounting option: install in a compatible 19-inch rack in a 2U space or place on a stable, level surface as a tower. Secure the unit to prevent movement.
• Mount the UPS close to the equipment it will protect, ensuring that all protected devices will plug into the 8 outlets. Avoid overloading outlets beyond the unit’s rating.
• Connect the UPS to the mains power supply using the appropriate power cord and ensure the input circuit is capable of delivering the required current. Do not overload the circuit.
• Connect protected devices—servers, storage, networking gear—to the eight outlets on the UPS. Reserve outlets for critical gear that must stay powered during outages.
• Install the network management card if not already integrated. Connect the card to your network and power, then configure remote monitoring via the UPS LCD and network management interface.
• Connect USB and DB9 interfaces to a management workstation if needed for local control, shutdown scripts, or serial console access.
• Power on the UPS and verify LCD status reads normal. Use the LCD to adjust settings such as alarm thresholds, auto-shutdown parameters, and notification preferences as appropriate for your environment.
• Test the system by initiating a graceful shutdown of protected devices during a controlled outage to confirm correct behavior and uninterrupted operation when mains power fails.

Frequently asked questions

• Q: What does “Extended Run” mean for this UPS?
  A: Extended Run refers to the ability to extend uptime during outages by utilizing additional battery capacity or optional battery packs, allowing critical loads to continue operating longer without mains power.
• Q: Is the Network Card included with the UPS?
  A: Yes. The package includes a Network Card to enable remote management, monitoring, and alerting over your network.
• Q: How many outlets does this UPS protect?
  A: It provides eight outlets for protected equipment, with some outlets typically available for battery-backed protection of essential devices.
• Q: Can I mount this UPS in a rack?
  A: Yes. The unit is a 2U rack/tower form factor, designed to fit standard 19-inch racks as well as be used as a tower.
• Q: What kind of electrical protection does the SmartOnline UPS offer?
  A: It offers online double-conversion protection, delivering a regulated sine-wave output that isolates connected equipment from input power disturbances, including fluctuations, outages, and transient events.
• Q: Which interfaces are available for monitoring and control?
  A: The UPS includes an LCD display for local monitoring, plus USB and DB9 serial connections, with the Network Card enabling remote management and integration into centralized monitoring systems.
• Q: Is this UPS suitable for servers and network gear?
  A: Yes. Its online topology, sufficient wattage (1350 W), eight outlets, and robust management features make it ideal for protecting servers, storage devices, and critical network equipment.
