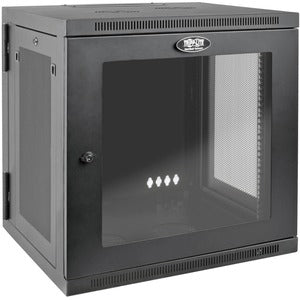

Eaton Tripp Lite Series Smartrack 12U UPS-depth Wall-mount Small Rack Enclosure

The Eaton Tripp Lite Series SmarTrack 12U UPS-depth Wall-mount Small Rack Enclosure delivers a compact, secure solution for housing critical power and networking gear in tight spaces. Engineered to support standard 19-inch equipment while accommodating deeper UPS units, this enclosure combines robust steel construction, secure access, and efficient cable management in a wall-mount design ideal for small data closets, server rooms, or office telecom closets. With its thoughtful design, you get a professional-grade rack that protects equipment, organizes cables, and simplifies maintenance without sacrificing accessibility or airflow.

• Space-efficient 12U wall-mount enclosure designed to fit in tight spaces while still accommodating 19-inch equipment and UPS depth units.
• Durable steel construction with a powder-coated finish and reinforced rails to support mounted equipment securely, reducing vibration and wear over time.
• Secure access with a lockable front door and robust cable-management channels, helping protect sensitive equipment from tampering and accidental disconnections.
• Optimized airflow through vented panels and perforated doors to maintain proper cooling for UPS, servers, and networking gear in confined environments.
• Flexible mounting and installation options, including adjustable rails and compatibility with a range of UPS and network devices, making it suitable for various deployment scenarios.

Technical Details of Eaton Tripp Lite Series Smartrack 12U UPS-depth Wall-mount Small Rack Enclosure

• 12U rack capacity to hold a compact combination of UPS units and IT equipment
• Designed for 19-inch EIA equipment compatibility with adjustable mounting rails
• UPS-depth oriented enclosure to accommodate deeper power protection devices
• Sturdy steel construction with powder-coated finish for durability and corrosion resistance
• Ventilated front and/or side panels to promote airflow and prevent heat buildup
• Lockable front door for security and peace of mind in shared or open environments
• Front and rear access options to simplify maintenance and cable routing
• Wall-mount design tailored for limited space installations in offices, closets, and small data rooms
• Includes mounting hardware and accessories to support quick, tool-efficient installation

How to install Eaton Tripp Lite Series Smartrack 12U UPS-depth Wall-mount Small Rack Enclosure

Follow these practical steps to install the enclosure securely and efficiently in a wall-mount setup:

• Choose a suitable wall location with solid framing and sufficient clearance for doors, cables, and ventilation. Verify local codes and weight-bearing capacity before proceeding.
• Unpack the enclosure and check all components against the included hardware list. Ensure you have the required tools for mounting rails, brackets, and screws.
• Attach the adjustable 19-inch mounting rails inside the enclosure according to the manufacturer’s guidelines, ensuring rails are level and aligned for proper equipment mounting.
• Position the enclosure on the wall and mark drill holes for wall anchors or studs. Use appropriate fasteners for your wall type and install the wall-mount brackets securely.
• Route power, data, and management cables through built-in access ports or knockouts, keeping cables organized with the included management channels. Leave slack for service access and future expansion.
• Mount your UPS, servers, routers, switches, and other 19-inch equipment onto the rails, starting with heavier devices at the bottom for stability. Tighten rails and equipment racks to the recommended torque specifications.
• Close the enclosure doors, engage the lock, and verify doors align properly with no interferences. Confirm that cables are not pinched and ventilation paths remain unobstructed.
• Test the setup by powering devices and confirming proper startup, ventilation, and cable routing. Periodically inspect the enclosure for dust buildup and secure all latches during routine maintenance.

Frequently Asked Questions

• What is the purpose of a 12U UPS-depth wall-mount enclosure?
  A 12U UPS-depth wall-mount enclosure is designed to protect and organize small to medium IT gear, including UPS units and network equipment, in spaces where floor-standing racks won’t fit. The depth accommodates deeper UPS devices, while the wall-mount design saves floor space and keeps critical components easily accessible.
• Is this enclosure compatible with common 19-inch equipment?
  Yes. It is built to accommodate standard 19-inch rack-mount equipment, with adjustable rails to align mounting brackets and ensure secure installation.
• Does it provide security for equipment?
  Yes. The enclosure uses a lockable front door and sturdy construction to help deter tampering and unauthorized access while maintaining serviceability.
• How does ventilation work in a compact wall-mount enclosure?
  Ventilated front and/or side panels promote airflow around installed devices, helping to prevent heat buildup in confined spaces and contributing to equipment longevity.
• Can I install UPS units and networking gear together?
  Yes. The 12U capacity and UPS-depth design are intended to accommodate UPS units alongside networking gear, providing an organized, space-efficient solution for protected power and data paths.
