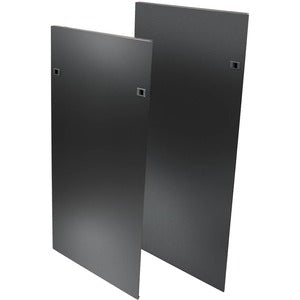

Eaton Tripp Lite Series SmartRack Side Panel Kit with Latches for 48U 4-Post Open Frame Rack, 2 Panels

Tripp Lite by EatonSKU: 4290720

Price:
Sale price$135.18

Description

Eaton Tripp Lite SmartRack Side Panel Kit with Latches (48U, 2 Panels) for 4-Post Open Frame Racks

The Eaton Tripp Lite SmartRack Side Panel Kit with Latches is the essential upgrade for end-of-row installations in data centers, labs, and office IT environments. Specifically designed as a bundled side panel solution for the SmartRack SR4POST48HD 48U 4-post open frame rack, this two-panel set (SR48SIDE4PHD) delivers a clean, professional look while improving enclosure cleanliness, security, and organization. With easy-to-use latches and a sturdy steel construction, these panels help you create a polished, low-dust, and distraction-free rack row that supports efficient maintenance, cable management, and airflow planning. Whether you’re refreshing a large row in a data hall or equipping a compact lab rack with a tidy, end-to-row appearance, this side panel kit delivers a reliable, long-lasting finish that complements the broader Tripp Lite SmartRack ecosystem.

  • Two-panel kit with integrated latches: The SR48SIDE4PHD kit includes two durable side panels that snap into place on the SR4POST48HD 48U, 4-post open frame rack and lock securely with built-in latches. This design delivers a clean, end-of-row look while allowing rapid access when maintenance or reconfiguration is required.
  • Rugged steel construction with durable finish: Built to withstand the rigors of data center and lab environments, the panels are fabricated from sturdy steel and finished with a corrosion-resistant powder coat. The result is long-lasting durability, resistance to wear, and a professional, low-reflective appearance that stays visually consistent with other SmartRack components.
  • Simple installation with included hardware: Engineered for straightforward mounting, the SR48SIDE4PHD panels align with standard 19-inch rack rails on the SR4POST48HD frame. The kit comes with the necessary mounting hardware, enabling fast, tool-assisted installation so you can minimize downtime while achieving a tidy, integrated look.
  • Space-saving, modular design for end-of-row aesthetics: These side panels provide a compact, low-profile solution that covers the exposed ends of open frame racks. The result is a neat, professional appearance that reduces visual clutter, helps with dust containment, and improves the overall presentation of end-of-row installations without compromising access when needed.
  • Versatile, data-center-grade solution for diverse environments: Beyond data centers, the panels are well-suited for labs, corporate IT rooms, and office environments where space is at a premium and a clean, organized rack presentation matters. The 2-panel configuration is ideal for 48U racks, ensuring full coverage at both ends and compatibility with the Eaton SmartRack ecosystem.

Technical Details of Eaton Tripp Lite Series SmartRack Side Panel Kit with Latches for 48U 4-Post Open Frame Rack, 2 Panels

  • Model/SKU: SR48SIDE4PHD
  • Includes: 2 side panels with integrated latches
  • Compatibility: Designed for Eaton SmartRack SR4POST48HD 48U, 4-post open frame racks
  • Material: Steel with black powder-coated finish
  • Finish & Color: Black powder coat for durability and a professional look
  • Mounting: 19-inch rack mounting compatibility; pairs with existing SR4POST48HD rails and hardware
  • Purpose: Provides a clean, end-of-row appearance while helping minimize dust ingress and outer-row visual clutter

how to install Eaton Tripp Lite Series SmartRack Side Panel Kit with Latches for 48U 4-Post Open Frame Rack, 2 Panels

  • Prepare the SR4POST48HD rack: ensure the rack is de-energized and clear of components that could interfere with panel installation. Verify you have the SR48SIDE4PHD kit and the included mounting hardware ready.
  • Align the panels with the open ends of the 48U four-post frame. Position each side panel so that the latch mechanism is accessible from the rack’s outside face and the panel edge sits flush against the frame rails.
  • Attach the panels using the provided mounting hardware. Begin with the top mounting points, then secure the lower points to ensure even seating. Tighten fasteners incrementally to avoid warping the panel or misalignment with the rail profiles.
  • Check latch operation: close and latch each panel to confirm secure engagement. Ensure the latches operate smoothly and that the panels remain firmly aligned with the rack ends when latched.
  • Verify clearance and airflow: inspect the area around the panel edges to confirm there is no interference with adjacent equipment, fans, or cable runs. Confirm that the panel sits flush against the rack surface and that no cables are pinched during panel installation.
  • Finalize the configuration: re-check all fasteners after initial operation, tidy any cabling in proximity to the panel edge, and document the installation for asset tracking and future upgrades. If you plan to adjust the end-of-row appearance later, the panels can be removed or re-seated with minimal effort.

Frequently asked questions

  • Q: What does the kit include? A: The kit includes two side panels designed for the SR4POST48HD 48U, 4-post open frame rack, each with integrated latches to securely fasten the panels in place.
  • Q: Are mounting screws or hardware included? A: Yes. The SR48SIDE4PHD bundle comes with the necessary mounting hardware to facilitate straightforward installation onto compatible 4-post open frame racks.
  • Q: Is this kit compatible with other SmartRack frames? A: The panels are specified for the SR4POST48HD 48U, 4-post open frame rack. They are optimized for that model to ensure proper fit, latch function, and clean end-of-row aesthetics.
  • Q: Do the panels affect airflow or cable management? A: The panels are designed to provide a neat, end-of-row appearance while maintaining appropriate clearance for cables and airflow. They help minimize dust intrusion and contribute to an organized rack environment when used as part of a comprehensive SmartRack setup.
  • Q: Can I remove or re-seat the panels easily? A: Yes. The side panels with latches are designed for quick removal and re-sealing, enabling routine maintenance or reconfiguration without complicated disassembly.
  • Q: Where can I use these panels? A: They are ideal for data centers, labs, and office IT spaces that employ SmartRack open frame racks, particularly the 48U, 4-post SR4POST48HD models, where a clean end-of-row appearance is desired.
