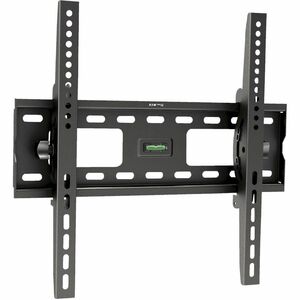

Eaton Tripp Lite Tilt Wall Mount for 26" to 55" TVs and Monitors -10° to +10° Tilt

Transform your viewing experience with the Eaton Tripp Lite Series Tilt Wall Mount, a precision-engineered mounting solution designed to bring your 26" to 55" displays into the perfect position. This low-profile, open-frame mount optimizes accessibility, cable management, and flexibility for venues ranging from living rooms and home theaters to classrooms and conference spaces. With a versatile tilt range, universal VESA compatibility, and rugged construction, this mount quietly disappears behind your screen while delivering standout performance. It’s the reliable choice for people who demand crisp angles, clean aesthetics, and straightforward installation in one durable package.

• Optimized tilt for optimal viewing – The tilt range of -10° to +10° lets you fine-tune your screen angle to reduce glare, accommodate seated or standing viewers, and enhance comfort in spaces where the audience sits below eye level. This feature is especially valuable for wall-mounted displays in classrooms, retail environments, or home media rooms where precise viewing angles matter.
• Universal compatibility with 26"–55" displays – Designed to fit a wide range of flat-panel TVs and computer monitors, this mount supports standard VESA patterns commonly found on 26"–55" displays. Its versatile mounting interface means you don’t have to worry about model-by-model compatibility, making it a practical choice for multi-device setups or future screen upgrades.
• Low-profile, open-frame design – The open-frame silhouette hugs the wall to deliver a sleek, modern look while maintaining easy access behind the display. The low-profile profile minimizes protrusion from the wall, keeping sightlines clean and preserving the aesthetics of your space while still enabling quick maintenance and cable routing.
• Rugged steel construction for long-term reliability – Built to withstand daily use in domestic and commercial environments, this tilt mount uses sturdy metal components and a durable finish. The robust build supports extended life, consistent performance, and dependable positioning even in high-traffic areas where screens are adjusted frequently.
• Easy installation with comprehensive mounting hardware – The mount ships with clear mounting instructions and all necessary hardware to attach to most standard wall structures. Its straightforward layout and labeled mounting points help streamline installation, minimize errors, and get your display up and running quickly for immediate use.

Technical Details of Eaton Tripp Lite Tilt Wall Mount for 26" to 55" TVs and Monitors

• Model: DWT2655XP (Tilt Flat-Screen Wall Mount)
• Display size range: 26" to 55"TVs/monitors
• Tilt range: -10° to +10°
• VESA compatibility: Supports standard VESA patterns from 75 x 75 mm up to 600 x 400 mm
• Weight capacity: Up to 165 lbs (75 kg)
• Mounting depth from wall: Approximately 1.6 inches (40 mm) for a clean, low-profile appearance
• Construction: Heavy-duty steel framework with durable finish for everyday use
• Frame design: Open-frame wall mount that provides easy wall access and flexible positioning
• Cable management: Integrated pathways to keep wires organized and out of sight
• Hardware included: Complete mounting hardware for wood studs and concrete surfaces
• Compliance: Meets common safety and mounting standards for residential and commercial installations

how to install Eaton Tripp Lite Tilt Wall Mount for 26" to 55" TVs and Monitors

Follow these steps to install your tilt wall mount securely and accurately. Before you begin, gather a level, drill, stud finder, screwdriver, and the included mounting hardware. Always ensure you are mounting to solid wall structures and, when in doubt, consult a professional installer. Double-check the weight rating of your wall and screen to confirm compatibility with the mount’s capacity.

1) Prepare the wall and verify compatibility. Confirm your wall type (wood studs or concrete) and locate the studs using a stud finder. Measure the pattern on the wall plate to ensure the mounting holes align with your studs and the display’s VESA pattern. If mounting on drywall alone, use appropriate anchors and ensure the wall can support the combined weight of the screen and mount.

2) Attach the wall plate. Hold the wall plate against the wall, align the mounting holes with your stud marks, and mark where you will drill. Drill pilot holes and fasten the wall plate securely with the provided hardware. Use a level to ensure the plate is perfectly flat against the wall for consistent tilt performance.

3) Attach the mounting arms to your display. Remove the rear panel or access panel on the back of your screen if needed, then attach the mounting arms to the display using the appropriate screws for your VESA pattern. Ensure the screws are snug but not overtightened to avoid damaging the display shell.

4) Secure the display to the wall plate. With an assistant, lift the display and align the mounting arms with the wall plate’s upper and lower hooks or bolts. Secure the arms and verify that the connection is tight and stable. Check that the tilt mechanism operates smoothly without binding or excessive resistance.

5) Set tilt and manage cables. Adjust the tilt to your preferred angle within the -10° to +10° range, then route cables through the integrated channels to keep them tidy. Use strain reliefs or cable ties as needed to prevent stress on connectors when adjusting the tilt.

6) Final checks. Gently wiggle the mounted display to confirm stability, re-check the level, and verify that all hardware remains secure after a short test period. Ensure there is adequate clearance around the display for ventilation and for any keys or connectors on the sides or bottom of the panel.

Frequently asked questions

• Q: What sizes does this mount support? A: It is designed for 26" to 55" displays and TVs, with universal VESA compatibility for patterns up to 600 x 400 mm.
• Q: What is the tilt range? A: The tilt range is -10° to +10°, allowing you to adjust viewing angles to reduce glare and improve comfort for different seating arrangements.
• Q: How much weight can it support? A: The mount supports up to 165 lbs (75 kg), ensuring compatibility with most consumer and many commercial displays within the specified size range.
• Q: Can I mount this on drywall? A: Yes, but for optimum safety and load distribution you should mount into wall studs or use appropriate anchors rated for the wall type and screen weight. Always follow the included hardware guidelines.
• Q: Is the wall plate frame open for easy service access? A: Yes. The open-frame design provides convenient access to back panels, ports, and cable connections while maintaining a low-profile appearance on the wall.
