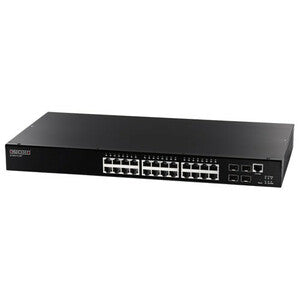

Edge-Core L2 Gigabit Ethernet Access Switch

Experience enterprise-grade reliability and flexible, high-speed connectivity with the Edge-Core ECS4210 series. This L2/L4 Gigabit Ethernet access switch delivers scalable performance for Internet Service Providers and small businesses, enabling up to Gigabit bandwidth delivery to home users and office environments. With a thoughtful combination of copper RJ-45 ports and Gigabit SFP uplinks, the ECS4210 is designed to simplify deployment, streamline network management, and support evolving subscriber needs through robust Layer 2 switching, VLAN segmentation, and advanced traffic control. Whether you’re building a carrier-grade edge, a multi-tenant access switch, or an efficient small-office backbone, this versatile device provides the foundation for fast, reliable, and secure network service.

• High-performance Layer 2/4 switching for multi-user networks The ECS4210 series is engineered to handle dense, mixed-traffic environments with low latency and predictable forwarding, enabling reliable performance for business-critical applications, video conferencing, cloud services, and interactive workloads.
• Flexible port configuration for scalable deployments Available in variants with 12 or 28 total ports, featuring 8 or 24 RJ-45 10/100/1000Base-TX ports and Gigabit Ethernet SFP ports for fiber uplinks. This blend supports both traditional copper access and high-speed fiber connections, simplifying network growth and ISP subscriber provisioning.
• ISP-friendly bandwidth delivery with reliable uplinks The switch is designed to enable Internet Service Providers to deliver solid, up-to-Gigabit bandwidth to home users and small offices. Fiber uplinks through SFP ports provide scalable, low-latency paths for subscriber backhaul and service differentiation across the network.
• Advanced features for secure, managed networks Benefit from Layer 2 capabilities with VLAN segmentation, QoS for traffic prioritization, ACLs for access control, and multicast support. The ECS4210 also supports essential network reliability features such as spanning tree and link aggregation to reduce downtime and improve link resilience.
• Intuitive management and easy deployment Manage the switch via a web GUI, command-line interface, or SNMP for centralized monitoring. It’s designed for straightforward initial setup, ongoing configuration, and seamless integration with monitoring systems, enabling operators to maintain service quality with minimal overhead.

Technical Details of Edge-Core L2 Gigabit Ethernet Access Switch

• Series and role: ECS4210 family, high-performance Layer 2/4 gigabit Ethernet access switches suitable for ISP edge and enterprise access layers.
• Ports: 12/28 total ports with 8/24 10/100/1000Base-TX copper ports and Gigabit Ethernet SFP ports for fiber uplinks, enabling flexible, hybrid copper/fiber deployments.
• Layer features: Layer 2 switching with VLAN support, QoS, ACLs, and multicast handling; designed to provide reliable subscriber service and secure traffic separation across networks.
• Management: Web-based graphical user interface (GUI), command-line interface (CLI), and SNMP for centralized device management, monitoring, and firmware updates.
• Reliability and deployment: Intended for ISP and enterprise access deployments, with straightforward installation in standard racks or workspaces and compatibility with common network infrastructure.
• Performance characteristics: Optimized backplane and forwarding design for consistent throughput under multi-user traffic and diverse service profiles.

How to Install Edge-Core L2 Gigabit Ethernet Access Switch

• Plan the placement: Assess the location in the equipment rack or workspace, ensuring adequate ventilation, clearance for cabling, and alignment with other network devices for tidy cable management.
• Prepare power and environment: Verify power availability and ensure temperature and airflow meet the device’s operating requirements; power down the area if needed during installation.
• Mount and physically connect: Install the switch in the rack (if applicable) and secure it. Connect the power supply, then attach copper Ethernet cables to the 10/100/1000Base-TX ports as required by your topology. Use SFP uplink ports to connect fiber transceivers or connect to upstream switches or routers as needed.
• Initial access and authentication: Power on the device and access the default management interface via the console URL or default IP address using a web browser or CLI tool. Change the default administrator password to a strong credential to secure management access.
• Configure basic management settings: Set a management IP address, subnet mask, and gateway as appropriate for your network. Apply initial firmware updates if available to ensure you have the latest security and feature enhancements.
• Define network topology and services: Create VLANs for segmentation, assign ports to VLANs, and implement QoS policies to prioritize critical traffic. Set up ACLs to control access and define basic security rules to protect management interfaces and user data paths.
• Enable redundancy and reliability: If your design requires link aggregation, enable LACP across relevant ports.Configure Spanning Tree features to prevent loops and ensure fast convergence in redundant paths.
• Integrate with monitoring systems: Enable SNMP, set up syslog destinations, and implement basic health checks or polling to track interface status, throughput, and error counters for proactive maintenance.
• Test, validate, and document: Verify connectivity across copper and fiber links, measure bandwidth and latency in key paths, and confirm that VLAN segmentation and QoS behave as intended under representative traffic loads.

Frequently asked questions

• What is Edge-Core ECS4210? It is a high-performance Layer 2/4 Gigabit Ethernet access switch designed to support ISPs and small-to-medium businesses with flexible copper and fiber connectivity, enabling reliable subscriber service delivery.
• How many ports does the ECS4210 offer? The ECS4210 series comes in variants with 12 or 28 ports, including 8/24 copper RJ-45 ports and Gigabit SFP ports for fiber uplinks, allowing mixed copper/fiber configurations.
• Does the ECS4210 support PoE? PoE capability varies by model. Some ECS4210 variants include PoE, while others do not. Check the specific model specifications to confirm PoE support and power budgets.
• What management options are available? You can manage the switch via a web-based GUI, a CLI, and SNMP for centralized monitoring and integration with network management systems.
• What deployments is this switch best suited for? It is well-suited for Internet Service Providers delivering up to gigabit service to home users, as well as for small offices needing scalable, manageable access-layer switching with reliable uplinks and traffic control.
