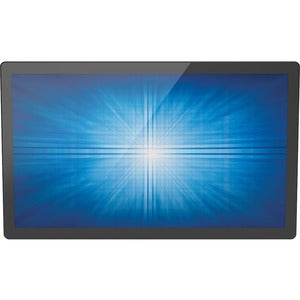

Elo 2494L 24" Open-Frame LCD Touchscreen Monitor

The Elo 2494L Open Frame Touchscreen Monitor is engineered for OEMs, system integrators, and industrial operators who demand a reliable, cost-effective 24-inch touch display that can be embedded into custom enclosures, kiosks, control panels, and harsh environments. This open-frame design places the display core in a modular, easily serviceable chassis, enabling rapid integration with existing hardware while maintaining a clean, professional appearance. With a 24-inch class screen, a 16:9 aspect ratio, and a fast 16 ms response time, the 2494L delivers crisp visuals and responsive touch interaction for public displays, workflow dashboards, and interactive interfaces where uptime matters. Built to withstand high-usage scenarios, the monitor emphasizes longevity, simple maintenance, and predictable performance across a wide range of commercial applications.

• Open-frame integration for OEMs and systems integrators: The modular, slim-profile frame is designed for straightforward installation inside custom enclosures, cabinets, or mounting panels, minimizing bezel intrusion while preserving a professional look.
• Clear, modern 24" display with 16:9 aspect: A widescreen panel delivers sharp text, vivid graphics, and engaging multimedia for kiosks, point-of-sale terminals, medical devices, and control-room interfaces.
• Reliable touch experience: The built-in touchscreen technology provides accurate, responsive input essential for consistent user interaction in high-traffic locations and continuous-use deployments.
• Flexible connectivity and deployment options: Multiple input options and open-frame mounting accommodations simplify integration with host devices, enabling smooth transitions from proof-of-concept to production environments.
• Rugged, industrial-grade construction: Engineered for reliability in commercial settings, the 2494L emphasizes durability, long service life, and stable operation under demanding daily use.

Technical Details of Elo 2494L

• Display size and aspect: 24-inch class diagonal, 16:9 aspect ratio for contemporary, multimedia-friendly presentation
• Open-frame design: Industrial-grade, modular chassis intended for OEM installation and custom enclosures
• Touch interface: Integrated touchscreen suitable for reliable input in high-usage environments to support quick, intuitive interactions
• Response time: 16 ms to help deliver smooth, responsive user feedback during rapid touch input
• Applications: Ideal for kiosks, control panels, POS terminals, industrial dashboards, and other embedded-display deployments

How to install Elo 2494L

Installing the Elo 2494L involves preparing a suitable enclosure, securing the open-frame module, and wiring power, video, and touch signals for reliable operation. Below is a practical guide to a successful deployment that helps ensure accurate touch performance and durable system integration:

Step 1: Plan and prepare - Confirm the enclosure cutout matches the 24" open-frame module and that there is adequate clearance for ventilation, cabling, and service access. Review the installation guidelines for mounting hardware and spacers that align with the Elo frame. Prepare all required cables and power connections, and consider cable routing that minimizes strain on connectors during operation.

Step 2: Mounting the display - Insert the open-frame display into the enclosure using the included mounting points or brackets designed for OEM installations. Align the module with the cutout, then secure it firmly to the chassis using the recommended fasteners. Ensure the display is level and stable to prevent vibration or misalignment during use.

Step 3: Connect video and touch signals - Attach the video source to the monitor using the appropriate input interface (HDMI, DisplayPort, or other supported connectors). Connect the USB touch interface if required for touch data transfer and calibration. Route cables neatly to avoid interference and provide strain relief where necessary.

Step 4: Power and calibration - Apply power according to the monitor’s specifications and boot the host system. Run the touchscreen calibration utility or the host operating system calibration process to ensure precise touch alignment across the entire display area. Perform a quick test to verify responsiveness and accuracy across multiple touch points if supported.

Step 5: Test, seal, and document - Verify image quality, brightness, color uniformity, and touch responsiveness in the final enclosure. Check for any environmental ingress points and seal the enclosure as required for the intended setting. Document the installation for maintenance, including connector pinouts, cable routes, and calibration data, to simplify future service or replacement.

Frequently asked questions

• Q: What platforms does the Elo 2494L support? - The 2494L is designed to work with common operating systems through standard touch drivers. Windows, Linux, and macOS environments are generally supported, with touch calibration and drivers provided as needed for specific OS versions and deployments.
• Q: What are the typical use cases? - This open-frame touchscreen monitor is well-suited for kiosks, self-service terminals, control panels, POS stations, industrial dashboards, medical devices, and other embedded display solutions where a reliable, long-life touchscreen is essential.
• Q: What touch technology does it use? - Elo’s open-frame touch technology provides dependable input in busy environments, enabling accurate finger or stylus interaction. Calibration is recommended after installation to ensure optimal accuracy.
• Q: How is mounting handled? - The open-frame design supports OEM-style installation with mounting holes and brackets optimized for integration into enclosures or cabinets. Specific mounting patterns vary by model, so always refer to the installation guide for exact specifications.
• Q: Is the monitor rugged enough for industrial use? - Yes. The Elo 2494L is built for commercial and industrial settings, featuring a robust frame and components selected to endure frequent use, with a focus on stability, reliability, and long service life.
