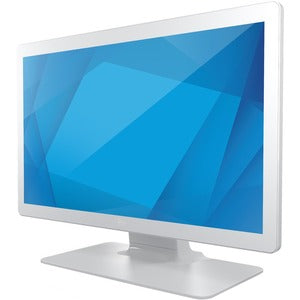

Elo 2703LM 27" Class LCD Touchscreen Monitor - 16:9 - 14 ms

Overview: The Elo 2703LM is a purpose-built, 27-inch LCD touchscreen monitor designed for medical environments where sharp imaging, fast touch response, and reliable performance are non-negotiable. Built as part of Elo’s 03-Series Medical Grade Touchscreen Monitors, this display blends high-clarity visuals with precise, responsive touch accuracy and DICOM Part 14 functionality to support professional clinical review, diagnosis, and patient interaction. With a sleek, compact form factor, the Elo 2703LM helps healthcare teams streamline workflows, reduce examination times, and elevate patient engagement without compromising clinical standards or ergonomic comfort. This monitor is crafted to stand up to the demanding needs of hospitals, clinics, imaging centers, and point-of-care settings, delivering consistent grayscale accuracy, durable construction, and seamless integration into established medical imaging workflows.

• Medical-grade touchscreen experience: The Elo 2703LM merges advanced touchscreen technology with DICOM Part 14 grayscale calibration to ensure imaging fidelity aligns with clinical expectations. Clinicians can annotate, review, and compare patient images directly on screen with a touch interface that responds precisely to multiple simultaneous touches, helping accelerate patient assessments and collaborative discussions during rounds or imaging reviews.
• 27-inch, 16:9 viewing canvas: This monitor offers a generous 27-inch display area in a native 16:9 aspect ratio, delivering immersive image viewing for radiology previews, EHR intake, and real-time patient education. The expansive screen size reduces eye strain during long review sessions while preserving detail in medical imagery and textual data associated with patient records.
• Fast, reliable performance: With a 14 ms response time, the Elo 2703LM ensures smooth on-screen movement and tactile feedback when navigating DICOM images, menus, and patient information. This quick response helps clinicians maintain a natural workflow tempo, minimizing lag during critical decisions and imaging reviews where every millisecond matters.
• Compact, space-conscious design: The compact form factor is ideal for busy clinical spaces, exam rooms, and point-of-care desks where space is at a premium. Elo emphasizes a clean, ergonomic footprint that complements existing clinical hardware while contributing to a streamlined, distraction-free review environment for both providers and patients.
• Enhanced patient engagement and workflow integration: By enabling direct touch interaction with imaging and clinical data at the point of care, the Elo 2703LM supports more engaged patient conversations, clearer explanations of imaging findings, and faster documentation throughput. The DICOM Part 14 alignment ensures grayscale and contrast levels meet professional imaging expectations, fostering confidence for clinicians and patients alike.

Technical Details of Elo 2703LM

• Display: 27-inch class LCD touchscreen with 16:9 aspect ratio and high-contrast imaging suitable for clinical review.
• Response time: 14 ms to support smooth navigation, scrolling, and touch-based annotation when reviewing medical images and patient data.
• Medical-grade design: Part of the Elo 03-Series Medical Grade Touchscreen Monitors, engineered for healthcare environments with emphasis on durability, reliability, and patient safety.
• DICOM Part 14 functionality: Integrated grayscale calibration and imaging performance aligned with DICOM standards to assist clinicians when evaluating radiographs, scans, and other medical images.
• Touch technology: Multi-touch capable touchscreen that enables intuitive annotation, zooming, and panning of imaging data and clinical records with a confident, accurate response.
• Ergonomics and build: Compact footprint designed for clinical settings, with consideration for glare reduction, easy cleaning, and robust construction to withstand daily healthcare use.
• Compatibility and workflow: Engineered to integrate with clinical workstations and imaging systems, supporting efficient review and documentation workflows while maintaining imaging fidelity.

How to install Elo 2703LM

Setting up the Elo 2703LM is designed to be straightforward for healthcare IT and clinical staff. Begin by selecting a stable surface or workstation where patient imaging and data review will occur, ensuring the display is positioned at an ergonomic height for comfortable viewing. Unpack the monitor and inspect all included mounting or stand hardware to confirm compatibility with your desk setup. Attach the stand securely or mount the monitor in a suitable location, following your facility’s standard operating procedures for workspace equipment.

Power up the monitor and connect the appropriate data source. The Elo 2703LM is designed for integration with clinical workstations, imaging systems, and electronic health records, so connect the display to your computer or imaging device using the recommended input connections. On initial startup, access the on-screen display (OSD) menu to configure basic settings such as brightness, contrast, color balance, and screen geometry. If your workflow relies on precise DICOM Part 14 grayscale, use the OSD controls to fine-tune grayscale rendering to match your imaging standards, then save these settings as a profile for easy recall during patient visits or imaging reviews.

For touch calibration, enable calibration in the OSD if the system prompts it, then perform a calibration sweep according to the prompts. This ensures touch accuracy aligns with your clinical tasks, whether annotating radiographs, marking regions of interest, or navigating patient records. If your facility uses a hospital information system (HIS) or picture archiving and communication system (PACS), configure any necessary integration settings for seamless data transfer and screen-sharing within patient encounters. Finally, perform a quick usability check: verify that touch interactions are responsive across the entire display, that DICOM grayscale rendering meets clinical expectations, and that any patient education materials appear clearly for demonstrations with patients and families.

Maintenance is simple but essential. Regularly clean the screen with manufacturer-approved cleaning agents, avoiding harsh solvents that could degrade coatings. Periodically verify grayscale accuracy against DICOM test patterns, especially after software updates or changes to imaging workflows. Keep firmware and software up to date by following Elo’s recommended update schedule, and document any changes to display settings for future reference in clinical operations manuals. With routine checks, the Elo 2703LM remains a reliable centerpiece for medical imaging review and patient engagement in busy clinical environments.

Frequently asked questions

• What makes the Elo 2703LM suitable for medical use? It combines a high-quality 27-inch LCD with a touchscreen that supports multi-touch input and DICOM Part 14 functionality, delivering imaging fidelity and interactive capabilities essential for clinical review, documentation, and patient education in healthcare settings.
• Is the monitor compatible with PACS and HIS systems? The Elo 2703LM is designed to integrate into healthcare workflows and supports typical clinical data interfaces. For best results, follow your facility’s integration guidelines and ensure any required drivers or software are installed to enable smooth PACS/HIS interoperability.
• Does the display support touch annotation and zooming on radiology images? Yes. The multi-touch touchscreen facilitates precise annotation, zooming, panning, and other interactive tasks that enhance clinical review and collaborative decision-making.
• Can I customize the grayscale and brightness to match DICOM standards? The monitor includes DICOM Part 14 functionality, allowing grayscale calibration and image quality adjustments to align with medical imaging requirements, helping clinicians achieve consistent visual results across cases.
• What maintenance is required to keep the monitor performing well? Regular cleaning with approved products, periodic grayscale checks against DICOM patterns, and applying firmware updates as recommended by Elo are typically sufficient to maintain image fidelity and touch accuracy in a clinical setting.
