Description

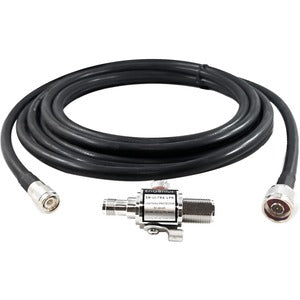

The EnGenius SN-ULTRA-LPK Lightning Protection Module is a rugged outdoor surge protection kit engineered to safeguard EnGenius outdoor antenna systems from the destructive forces of lightning and electrical transients.Designed to stay ahead of the elements, this protection module mounts inline on the coax feeding external antennas, redirecting surge energy away from sensitive radio components and the phone system they support. By deploying a dedicated Lightning Protection Module for each external antenna, you can dramatically reduce the risk of downtime, equipment damage, and costly outages in outdoor wireless deployments ranging from small business networks to campus-wide installations. With reliability at the core of its design, the SN-ULTRA-LPK helps maintain consistent performance in environments where weather, power fluctuations, and lightning strikes are part of the landscape.
- High-performance surge protection: The SN-ULTRA-LPK is engineered to respond quickly to voltage transients on the coax feed, clamping surge energy and shunting it to ground. By interrupting high-energy impulses before they reach the radio and the rest of the network, this module minimizes the risk of damage to the antenna, cabling, and connected equipment, helping keep your phone system online even during electrical storms.
- Outdoor rugged design: Built for harsh weather, the Lightning Protection Module uses durable, weather-resistant construction that stands up to sun, rain, wind, and humidity. Its sealed enclosure and protective materials help deter corrosion and moisture intrusion, ensuring reliable operation season after season for outdoor EnGenius deployments.
- Easy installation and inline integration: The SN-ULTRA-LPK installs inline on the external antenna feedline with standard connectors, allowing quick integration without extensive cable rework. This plug-and-play approach means you can add lightning protection to existing antenna setups in a short maintenance window, minimizing site downtime while maximizing circuit protection for the RF path.
- Enhanced system reliability for mission-critical networks: By safeguarding the antenna path against surges, the module reduces the likelihood of surge-induced outages that interrupt voice and data services. This translates to higher uptime, fewer service calls, and extended life for radios, antennas, and ancillary gear, especially in outdoor deployments with exposure to lightning-prone climates.
- One module per external antenna, scalable protection: The SN-ULTRA-LPK is designed to be deployed one unit per external antenna, ensuring tailored protection for each link in a multi-antenna network. This modular approach supports scalable protection across campuses, hospitality networks, retail installations, and other environments that rely on reliable outdoor wireless connectivity.
Technical Details of EnGenius SN-ULTRA-LPK Lightning Protection Module
- Model: SN-ULTRA-LPK
- Purpose: Lightning and surge protection for EnGenius outdoor antennas
- Protection approach: Inline protection on the coax feed to divert transient energy away from the antenna and radio equipment
- Environment: Designed for outdoor use with weather-resistant construction
- Compatibility: Intended for use with EnGenius outdoor antennas and their feedlines
- Installation requirement: One module per external antenna; installs inline on the feedline
- Durability: Built to endure outdoor exposure and routine maintenance cycles
- Impact on performance: Protects essential network components while preserving RF signal integrity through proper installation
- Warranty and support: Backed by EnGenius support and product documentation
how to install EnGenius SN-ULTRA-LPK Lightning Protection Module
- Plan the installation location near the external antenna so that the module sits inline on the coax feed without excessive cable bending or tension. Ensure the area is accessible for maintenance and protected from direct water exposure when possible.
- Power down the connected equipment and, if applicable, disconnect the antenna coax from the radio to minimize the risk of static discharge during handling.
- Identify the input and output ports on the SN-ULTRA-LPK and prepare a clean, secure inline routing of the coax. Remove a short section of coax if required by the module’s design and insert the protection module inline according to the manufacturer’s orientation guidelines.
- Secure the module and coax connections with appropriate weatherproof seals and cable ties to prevent movement, moisture intrusion, or flexing that could compromise signal integrity over time.
- Reassemble the antenna system, reconnect the coax to the radio, and restore power. Verify that the link comes up and monitor for normal signal strength and quality. If the installation shows any unusual loss or instability, recheck connectors and seals for moisture ingress.
Frequently asked questions
-
Q: What does the SN-ULTRA-LPK protect?
A: It protects the antenna feedline and connected radio equipment from lightning surges and electrical transients that could travel through the antenna system to the phone network. The protection helps maintain service continuity by reducing the likelihood of surge-induced damage. -
Q: How many protection modules do I need?
A: Use one SN-ULTRA-LPK module for each external antenna. This per-antenna approach ensures comprehensive protection across multi-antenna deployments and scales with network size. -
Q: Can this module be used with other brands of outdoor antennas?
A: The SN-ULTRA-LPK is designed for EnGenius outdoor antenna systems. For non-EnGenius equipment, consult compatibility guidelines or consider a compatible protection solution from EnGenius or your network equipment provider. -
Q: Will the lightning protection affect signal quality?
A: When installed correctly, the SN-ULTRA-LPK provides surge protection without compromising RF performance. Proper inline installation and secure connections are essential to maintaining optimal signal integrity. -
Q: Is the module weatherproof?
A: Yes, the SN-ULTRA-LPK is designed for outdoor use with robust construction to withstand outdoor conditions. It should be mounted in a manner that minimizes direct exposure to standing water and extreme environmental factors where feasible. -
Q: How do I maintain or replace the module?
A: Routine maintenance includes periodic inspection of the enclosure, seals, and coax connectors for signs of wear or moisture. If the module becomes damaged or shows signs of wear, replace it with a new SN-ULTRA-LPK unit and re-check connections to ensure proper protection continuing to be provided.
