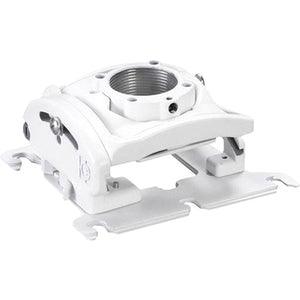

Epson CHF1000 Ceiling Mount for Projector - White
Elevate your projection setup with the Epson CHF1000 Ceiling Mount for Projector in pristine white. Engineered to securely suspend Epson projectors that use the CHF1000 mounting pattern, this mount delivers a clean, professional installation with robust durability and flexible alignment. Its white finish blends with most ceilings and décor, while the compact profile keeps the projector close to the ceiling for an unobtrusive look. Whether you’re outfitting a classroom, conference room, or home theater, the CHF1000 provides reliable support, easy adjustability, and smart cable management to keep cables tidy and out of sight. The mounting system emphasizes safety, quick installation, and precision alignment so your image is crisp, centered, and perfectly level, even in rooms with challenging acoustics or lighting. With the CHF1000, you’ll enjoy a secure mount that minimizes vibrations and allows precise tilt, swivel, and height adjustments to achieve the ideal throw and screen position. This ceiling mount is a practical, durable solution for modern AV installations that demand reliability, clean aesthetics, and simple serviceability.
- Sturdy steel construction with a white powder-coated finish ensures lasting durability and a seamless look in home theaters, classrooms, and offices. The CHF1000 mount is designed to withstand daily use and accommodate the weight of compatible Epson projectors, providing a stable, wobble-free installation that you can trust year after year. The robust build also contributes to a quiet, distraction-free environment by minimizing unwanted movement and vibration, which helps keep image quality steady during operation.
- Designed for Epson projectors that utilize the CHF mounting pattern, this ceiling mount delivers a precise fit and secure attachment. The compatibility focus reduces mounting guesswork and supports quick, tool-assisted installation so you can get up and running with minimal downtime. By aligning with Epson’s standardized CHF interface, installers can achieve a consistent, repeatable setup that simplifies service and replacement in the future.
- Complete adjustability to fine-tune image alignment. The CHF1000 supports tilt, swivel, and height adjustments so you can achieve perfect keystone-free projection, centered on your screen. The result is a professional-grade image alignment even in rooms with uneven ceilings or irregular layouts. This flexibility makes it ideal for multi-purpose spaces where seating and screen positions may vary over time.
- Low-profile, space-saving design keeps the projector tucked up against the ceiling while maintaining full accessibility for maintenance and cable routing. Integrated channels help keep HDMI, power, and data cables neatly organized and out of sight, reducing trip hazards and visual clutter. The minimal intrusion of the mount preserves room aesthetics and keeps clearing routes for ceiling air vents and lighting fixtures.
- Easy installation with clear instructions and included mounting hardware. The system is designed for straightforward setup, so you can install in minutes rather than hours. A safety-oriented approach includes secure screws and anti-slip features to minimize movement once mounted, giving you confidence during daily use and occasional room reconfigurations.
Technical Details of Epson CHF1000 Ceiling Mount for Projector
- SKU: CHF1000
- UPC: Not published
- Mount type: Ceiling mount for projectors
- Finish: White powder-coated steel
- Materials: Steel construction with durable hardware
- Adjustments: Tilt, swivel, and height adjustment to align image
- Compatibility: Designed for Epson projectors featuring the CHF mounting pattern
how to install Epson CHF1000 Ceiling Mount for Projector
- Plan the installation by selecting a mounting location that places the projector at the correct throw distance for your screen and ensures a level, unobstructed image. Assess room lighting, ventilation, and access for future maintenance to minimize post-install adjustments.
- Turn off power to the projector and any connected equipment. Use a stud finder or ceiling anchors appropriate for your ceiling type (wood joists, concrete, or suspended ceilings) to identify secure mounting points. Measure carefully to ensure the projector’s center aligns with the screen.
- Mount the ceiling plate or bracket to structural supports using the included hardware. Verify levelness with a spirit level and tighten fasteners evenly to avoid any play or tilt in the base plate. If you are working with concrete, use appropriate anchors designed for masonry.
- Attach the CHF1000 mounting arm to the ceiling base and then attach the projector mounting plate to your Epson projector using the supplied screws. Align the mounting holes with the projector’s chassis and tighten in a cross-pattern to ensure a flat, even surface for secure attachment.
- Hang the projector from the mount and begin coarse alignment. Use the tilt, swivel, and height adjustments to position the lens squarely on the screen. Check alignment from multiple seating areas and fine-tune until keystone distortion is minimized and the image is centered.
- Route cables through the built-in channels or along the arms to maintain a clean installation. Leave a little slack at the projector end to accommodate slight movements or future maintenance without stressing cables. Confirm adequate ventilation around the projector to prevent overheating.
- Perform a test run to verify focus, image size, and alignment. Make final micro-adjustments as needed and secure all adjustment screws once you achieve the desired image. Re-check the stability after a few hours of use and re-tighten any fasteners if needed.
Frequently asked questions
- Q: Is the Epson CHF1000 ceiling mount compatible with all Epson projectors?
- A: The CHF1000 is designed for Epson projectors that use the CHF mounting pattern. To confirm compatibility, check your projector’s installation manual or the official Epson CHF interface specification. If in doubt, consult an AV installer or your supplier.
- Q: What tools are required for installation?
- A: Basic tools are typically sufficient, including a drill, screwdriver, level, and stud finder. The included mounting hardware is designed for common ceiling materials, but you should use appropriate anchors for your ceiling type and building structure.
- Q: Can I adjust the projector after mounting?
- A: Yes. The CHF1000 supports tilt, swivel, and height adjustments to help you dial in the image even after mounting. Always re-check stability after any adjustment and avoid over-tightening adjustment screws.
- Q: How does cable management work on this mount?
- A: The CHF1000 includes integrated channels to route HDMI, power, and data cables neatly along the arms, keeping cables organized and reducing clutter. Route cables with extra slack at the projector end to allow for movement during adjustments.
- Q: What maintenance is required after installation?
- A: Routine checks for loose screws and alignment are recommended, especially after transport or room rearrangements. Periodically verify that the mounting hardware remains secure and that cables are undamaged and properly routed.
