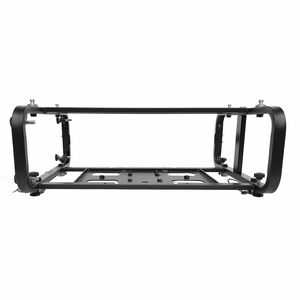

Epson Stacking Frame ELPMB84 for EB-PU2200 Series

Elevate your projection setup with the Epson ELPMB84 stacking frame, purpose-built to securely align and support EB-PU2200 series projectors in stacked configurations. This frame is designed for professional environments where brightness, clarity, and seamless multi-display presentations matter—from large classrooms and conference centers to houses of worship and corporate lobbies. Built to simplify complex installations, the ELPMB84 helps you achieve a clean, professional look with dependable stability, precise alignment, and efficient cable management.

• Designed specifically for EB-PU2200 series projectors, the ELPMB84 ensures secure, precise stacking that preserves image alignment across two projectors when you need greater brightness and wider throw coverage. The frame keeps units perfectly aligned, minimizing keystone and distortion so you can rely on consistent, razor-sharp imagery in large-format displays or multi-projector canvases. This stacking capability is ideal for venues that demand high brightness and uniform light distribution across a wide screen.
• Durable construction built to endure repeated installations. The ELPMB84 combines rigid framing with thoughtful engineering to resist flex and tilt during operation and transportation. Its sturdy design provides a reliable base for long-term projects and frequent reconfigurations, making it suitable for temporary events or permanent installations in adaptable spaces. A robust stacking system helps prevent misalignment due to vibration, movement, or environmental changes, so performances stay on point.
• Fast, straightforward assembly with clear alignment references. The ELPMB84 is built for efficient setup, enabling technicians to mount, align, and secure EB-PU2200 projectors quickly. The modular components simplify maintenance and upgrades, reducing downtime between sessions or events. With intuitive mounting points and compatible hardware, you can complete a precise, stable stack in less time, freeing staff to focus on calibration, content, and audience experience.
• Professional cable management and ventilation considerations. The design of the ELPMB84 emphasizes clean cabling paths and unobstructed airflow around stacked units. By keeping power, HDMI, and control cables neatly organized, this frame helps prevent accidental disconnections and signal interference while supporting reliable projector cooling. This translates to fewer service interruptions and a longer, more consistent operating life for your EB-PU2200 projectors.
• Compact footprint with scalable efficiency for various venues. The stacking frame is engineered to minimize its footprint while maximizing operational stability. This balance makes it suitable for classrooms with limited ceiling space, media rooms with multiple display zones, or touring setups where equipment must be loaded and unloaded quickly. The ELPMB84 enables professional-grade multi-projector configurations without sacrificing room aesthetics or system manageability.

Technical Details of ELPMB84

• Model: ELPMB84
• Compatibility: Epson EB-PU2200 Series projectors
• Purpose: Stacking frame for secure, aligned multi-projector configurations
• Construction: Designed for durability and stable support in portable and fixed installations
• Includes: Mounting hardware and quick-release components for efficient assembly and servicing

How to install ELPMB84

Follow these steps to install the Epson ELPMB84 stacking frame with EB-PU2200 projectors. Ensure that all safety protocols are observed and that power is shut off to all devices before beginning installation.

• Step 1: Plan your layout. Determine the number of EB-PU2200 units to stack, the orientation (portrait or landscape, as allowed by the frame and projector design), and the location of ceiling mounts or carts. Verify that the mounting surface can safely support the combined weight and height, and prepare the necessary tools and hardware included with the ELPMB84.
• Step 2: Assemble the frame components. Lay out the frame pieces on a clean work surface, align the joints, and loosely fasten the elements according to the included instructions. Check that all locking mechanisms engage smoothly and that brackets align with the projector mounting points on the EB-PU2200 units.
• Step 3: Attach the lower projector. Secure the first EB-PU2200 projector to the bottom portion of the frame using the provided mounting brackets. Align the lens axis with your projected image target, and verify that there is adequate clearance for ventilation and cables behind the unit. Tighten all fasteners to factory torque specifications, ensuring a stable base for the stack.
• Step 4: Stack the second projector and align. Position the upper EB-PU2200 projector onto the frame, aligning it with the lower unit. Insert and tighten the secondary fasteners, ensuring that the two projectors maintain parallel axes and consistent spacing. Re-check alignment both horizontally and vertically to prevent image drift or keystone effects.
• Step 5: Manage cables. Route power, video, and control cables along the frame’s designated channels or along the sides where appropriate. Use provided clips or ties to secure cables and maintain a clean, unobstructed airflow path around the stacked units. Leave a little slack near connectors to accommodate any minor movement during operation without stressing ports.
• Step 6: Calibrate and test. After securing all hardware and cabling, power on the system and run a calibration check. Make minor lens and image adjustments as needed to re-establish perfect alignment. Confirm uniform brightness across both projectors and verify that the combined image fills the screen as intended. If misalignment is detected, power down and recheck mounting points and fasteners for looseness or shift.

Frequently asked questions

Below are common questions about the Epson Stacking Frame ELPMB84 for the EB-PU2200 Series, designed to help you plan, install, and maintain your stacked projection solution.

The ELPMB84 is a purpose-built stacking frame for EB-PU2200 series projectors, providing a secure, aligned structure for multi-projector displays. It simplifies installation, enhances stability, and supports professional-grade brightness and coverage by enabling stacked projections with clean alignment and reliable cable management.

The ELPMB84 is designed to support a stacked configuration of EB-PU2200 projectors. The exact number of units supported and the maximum image size depend on the frame configuration and installation environment, so consult the included mounting guidelines and ensure your installation complies with local safety standards.

Yes. The frame is suitable for both portable deployments and fixed installations. Its modular design supports quick assembly and disassembly for events, as well as stable, long-term mounting for permanent setups in classrooms, conference rooms, auditoriums, and retail environments.

The stack frame includes mounting hardware and quick-release components needed to assemble and secure EB-PU2200 projectors. Depending on the vendor package, it may also include cable management clips or optional adapters designed to streamline installation and service.

Regular maintenance involves checking fasteners for tightness, inspecting mounting brackets for signs of wear or corrosion, and ensuring that cables remain properly routed and undamaged. Periodic calibration checks help maintain image alignment between stacked units, preserving overall system performance.
