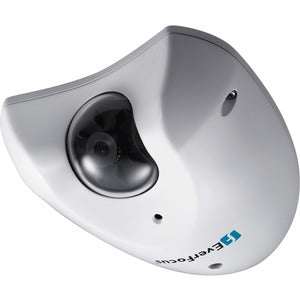

EverFocus Mini EHN1220 2 Megapixel HD Network Camera - Dome

The EverFocus Mini EHN1220 is a compact, rugged dome IP camera engineered to deliver reliable, high-definition surveillance in a wide range of settings. With 2 Megapixel (Full HD) image quality and a frame rate of up to 30 frames per second at 1920 x 1080, this camera captures sharp, fluid video across indoor and outdoor environments. Its miniature dome form factor makes it unobtrusive in retail spaces, hallways, offices, and entryways while still standing up to demanding conditions thanks to a vandal-proof IK10-rated housing and IP67 weatherproof protection. The EHN1220 combines versatility and durability with versatile video encoding options (H.264, MPEG-4, and M-JPEG), ensuring you can tailor bandwidth and storage usage to your network and budget. With color and monochrome imaging modes, it adapts to varying lighting conditions, delivering clear detail whether you’re monitoring a storefront after dark or a sunlit corridor by day. This camera is designed to be easy to install and dependable in challenging environments, helping security teams maintain continuous coverage with minimal maintenance.

• Compact mini dome design: A discreet, low-profile form factor that blends into ceilings and walls while delivering robust surveillance coverage in tight spaces and locations where aesthetics matter as much as security.
• Rugged, weatherproof and vandal-resistant housing: Built to endure outdoor exposure and physical tampering with IK10 vandal resistance and IP67 sealing, making it suitable for exterior entrances, loading docks, and exposed areas without compromising image quality.
• 2MP HD resolution at up to 30fps: Captures smooth, detailed Full HD video (1920 x 1080) for precise identification, license plate reads, and activity tracking in busy environments or low-light settings when paired with proper lighting.
• Flexible video encoding: Supports H.264, MPEG-4, and M-JPEG, providing adaptable compression options to balance image fidelity with bandwidth and storage constraints across various networks.
• Color and monochrome imaging modes: Switch between color and monochrome imaging to optimize visibility under different lighting conditions, enhancing contrast and detail where it matters most for security review.

Technical Details of EverFocus Mini EHN1220

• Resolution: 2 Megapixel (Full HD) at up to 1920 x 1080, delivering crisp, clear video suitable for most security applications.
• Frame rate: Up to 30 frames per second, providing smooth motion capture for fast-moving scenes and reduced motion blur.
• Video codecs: H.264, MPEG-4, and M-JPEG for flexible streaming options and optimized bandwidth usage across networks.
• Housing: Vandal-proof IK10-rated body with weatherproof IP67 protection, designed for reliable outdoor operation and tamper resistance.
• Form factor: Mini dome design that supports discreet ceiling and wall installations in a variety of environments.
• Imaging modes: Color and Monochrome to adapt to lighting and improve visibility in low-light or high-contrast scenes.

How to install EverFocus Mini EHN1220

• Plan the installation: Select a mounting location with a clear line of sight, minimal obstructions, and access to power/network cabling. For outdoor use, ensure the chosen spot has appropriate drainage and protection from extreme elements where feasible.
• Prepare power and connectivity: Connect the camera to a PoE-enabled network switch or provide a compatible power supply. PoE simplifies wiring by delivering both power and data over a single Ethernet cable, reducing installation time and complexity.
• Mounting and alignment: Secure the dome housing to the chosen surface using the provided hardware, brackets, and gasket seals. Align the camera to cover the intended field of view, then secure the enclosure to maintain weatherproof integrity.
• Configure the device: Access the camera through its web interface or compatible client software. Set the preferred imaging mode (Color or Monochrome), adjust brightness, contrast, and exposure, and select the desired resolution and frame rate (up to 1080p at 30fps) to balance image quality and bandwidth.
• Security and storage setup: Change default credentials, enable encrypted management if available, configure user access levels, and establish recording profiles. If you’re using local storage or a network video recorder, set up the appropriate storage destination and retention schedule.
• Testing and calibration: Verify live video in the intended area, fine-tune focus and angle, confirm lighting performance in different times of day, and confirm reliable remote viewing via desktop or mobile clients.

Frequently asked questions

• What resolution does the EHN1220 provide? It delivers 2 Megapixel HD video at up to 1920 x 1080 resolution, offering detailed imaging suitable for most surveillance needs.
• Which video codecs does it support? The camera supports H.264, MPEG-4, and M-JPEG, enabling you to tailor streaming quality and bandwidth consumption to your network conditions.
• Is this camera suitable for outdoor deployment? Yes. It features an IP67 weatherproof housing and IK10 vandal resistance, designed to withstand harsh weather, dust, and tampering in outdoor environments.
• Can I use color and monochrome modes with this camera? Yes. The EHN1220 supports both color and monochrome imaging, allowing you to choose the mode that provides better visibility under varied lighting conditions.
• What mounting options are supported? The mini dome form factor is versatile for ceiling and wall installations, making it adaptable for retail spaces, offices, corridors, and entryways.
