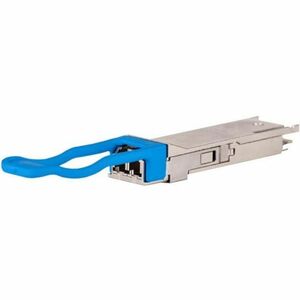

Extreme Networks 40G PSM4 QSFP+ MPO 10km Singlemode Fiber

Engineered for modern data centers and high-performance networks, the Extreme Networks 40G PSM4 QSFP+ MPO module delivers scalable, high-density 40 Gigabit Ethernet connectivity over single-mode fiber. This versatile module is ideal for spine-and-leaf data center architectures, HPC clusters, enterprise core and distribution layers, and service provider networks that demand predictable throughput, compact form factor, and efficient power usage. The 40GBASE Quad Small Form-Factor Pluggable (QSFP+) design uses four parallel 10 Gbps lanes inside a single QSFP+ housing, enabling dense port utilization while preserving full 40G throughput. With an MPO/MTP interface and reach of up to 10 kilometers on OS2 single-mode fiber, it extends your network across data centers, campuses, or metro interconnects while maintaining reliability and ease of management. Built to be hot-swappable and interoperable with a broad ecosystem of 40GBASE-PSM4 devices, this Extreme module is backed by the company’s renowned support and robust engineering.

• High-density 40G connectivity in a QSFP+ package. This module delivers a scalable, four-lane 40 Gigabit Ethernet solution that maximizes port density in data centers and HPC environments, enabling rapid aggregation and backbone performance without sacrificing space or power efficiency.
• Long-distance reach on single-mode fiber up to 10 km. Designed for data center interconnects, campus networks, and inter-data-center links, the PSM4 solution provides a reliable path over long distances while maintaining signal integrity across fiber plant deployments.
• MPO/MTP 12-fiber parallel optic interface. The 12-fiber MPO/MTP connector enables parallel transmission of four 10 Gbps channels, delivering full 40 Gbps throughput with a compact, fiber-friendly footprint suitable for modern infrastructure cabling.
• Low power consumption with proven reliability. Built for 24/7 operation in demanding environments, this module emphasizes energy efficiency and thermal stability, helping to reduce total cost of ownership while supporting consistent performance.
• Plug-and-play compatibility and broad interoperability. The 40G PSM4 module is designed to integrate smoothly with Extreme Networks switches and a wide ecosystem of 40GBASE-PSM4 devices, simplifying upgrades, migrations, and network scaling with minimal downtime.

Technical Details of Extreme Networks 40G PSM4 QSFP+ MPO 10km

• Module type: 40GBASE-PSM4 Quad Small Form-Factor Pluggable Plus (QSFP+)
• Data rate: 40 Gbps aggregated (4 x 10 Gbps lanes)
• Optical interface: Parallel 4-lane PMD (PSM4)
• Connector type: MPO/MTP (12-fiber) interface for high-density fiber cabling
• Fiber type: Single-mode OS2 fiber
• Reach: Up to 10 kilometers
• Standard/compliance: IEEE 802.3ba 40GBASE-PSM4
• Form factor: QSFP+ hot-swappable module
• Wavelength: Per-lane wavelength optimized for single-mode operation
• RoHS/compliance: RoHS compliant

How to install Extreme Networks 40G PSM4 QSFP+ MPO 10km

• Power down or verify hot-swap readiness for the port you are upgrading, and ensure you follow your data-center’s ESD and safety procedures.
• Remove any protective covers from the QSFP+ port and the MPO/MTP fiber harness, and verify that you have the correct fiber harness for 4 parallel lanes.
• Insert the Extreme Networks 40G PSM4 QSFP+ module firmly into the QSFP+ port until the latch engages and the module is securely seated.
• Connect the MPO/MTP fiber harness to the module’s MPO interface, ensuring correct lane mapping and maintaining proper polarity as required by your network design.
• Route fiber with appropriate bend radius and cable management, then connect the other end to the corresponding device or cabling infrastructure.
• Power up the equipment and verify link status, performing basic diagnostics or loopback tests as recommended by your network management tools to confirm that all four lanes are active and aligned for 40 Gbps traffic.
• Document the installation, including port numbers, fiber harness IDs, and distance, to support ongoing maintenance and future scalability.

Frequently asked questions

• Q: What is the Extreme Networks 40G PSM4 QSFP+ MPO 10km module?
  A: It is a hot-swappable 40 Gigabit Ethernet module that uses four parallel 10 Gbps lanes within a QSFP+ package, connected via an MPO/MTP 12-fiber interface, designed for single-mode fiber with up to 10 km reach. It’s intended for data centers, HPC deployments, and service provider networks requiring high density and long-distance interconnects.
• Q: What kind of fiber and connector does it use?
  A: It uses single-mode (OS2) fiber with an MPO/MTP 12-fiber connector, enabling parallel transmission of four lanes and enabling 40 Gbps throughput across longer distances.
• Q: What are common use cases for this module?
  A: Use cases include data center spine-and-leaf architectures, inter-data-center links (metro or campus), HPC clusters, storage area networks, and other high-bandwidth environments that require dense 40G connectivity over long distances.
• Q: Is this module compatible with non-Extreme Networks equipment?
  A: The module is designed to be interoperable with other 40GBASE-PSM4 devices and compatible switches that support IEEE 802.3ba 40GBASE-PSM4. Always verify vendor compatibility and cabling requirements for your specific hardware and firmware versions.
• Q: How should I maintain and troubleshoot this module?
  A: Ensure connectors are clean, avoid excessive bending of fibers, and follow standard installation best practices. If link issues arise, check lane mapping, fiber integrity, and perform basic diagnostics with your network management tools. If problems persist, consult Extreme Networks support resources for guidance.
