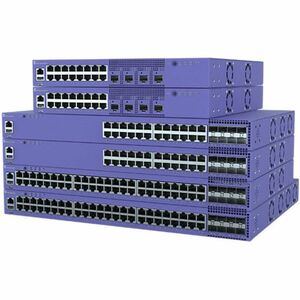

Extreme Networks ExtremeSwitching 5320 Ethernet Switch

The Extreme Networks ExtremeSwitching 5320 Ethernet Switch combines robust performance, scalable design, and flexible connectivity to power midsize campuses, edge data centers, and demanding network environments. With 24 ports of Gigabit Ethernet and support for 10 Gigabit uplinks, this switch is built to deliver high-throughput data forwarding, intelligent traffic management, and streamlined administration. It is engineered for deployments that demand reliability, modular growth, and PoE-enabled devices, making it a smart cornerstone for modern LANs that demand both speed and adaptability. Whether you’re consolidating office networks, supporting a growing number of IP phones and cameras, or creating a resilient uplink fabric, the ExtremeSwitching 5320 is designed to simplify complexity while expanding capacity.

• High-density 24-port copper access—Delivers reliable 10/100/1000BASE-T connectivity for desktops, printers, IP phones, wireless access points, and other endpoint devices, enabling seamless campus and office networks without outgrowing your switch fabric.
• 10GBASE-X uplinks and modular fiber options—Supporting high-speed uplinks through optical fiber, the 5320 enables efficient aggregation and scalable data paths to core switches or data centers, while preserving investment for future growth.
• Modular architecture for future-proofing—A flexible, field-replaceable module approach lets you adapt to evolving requirements. Expand from copper to fiber, add uplink capabilities, or swap modules without replacing the entire switch.
• PoE ports for simplified device deployment—Power over Ethernet capabilities reduce cabling and enable easier deployment of IP cameras, VoIP phones, wireless APs, and other PoE-enabled devices, improving both efficiency and central management.
• Layer 2 switching with network-grade features—Designed to handle VLANs, QoS, security policies, and traffic segregation, the 5320 supports dependable Layer 2 operations for campus and edge networks while enabling streamlined policy enforcement and performance tuning.

Technical Details of Extreme Networks ExtremeSwitching 5320 Ethernet Switch

• Model family: ExtremeSwitching 5320 series (modular, dual-layer capable hardware platform for campus and edge deployments).
• Port configuration: 24 copper ports supporting 10/100/1000BASE-T; modular uplink options for 10GBASE-X fiber connections (SFP+/fiber modules available depending on configuration).
• Topology and layers: Primarily designed for Layer 2 switching with a robust feature set suitable for VLANs, traffic prioritization, and security policies; modular design supports scalable deployment paths.
• Power and sustainability: PoE-capable ports to power compatible devices; energy-aware design to optimize power consumption in enterprise environments.
• Cabling and media: Supports both optical fiber (10GBase-X uplinks) and twisted-pair copper (RJ-45) cabling to suit diverse network layouts.
• Management and security: Includes enterprise-grade management interfaces and security controls to protect data flows, with options for centralized monitoring and policy enforcement.

Note on specifications

The exact specifications may vary by SKU and module configuration. For precise values—such as uplink module types, power budgets, and firmware compatibility—consult the product’s official specification sheet for your exact SKU and deployment scenario.

how to install Extreme Networks ExtremeSwitching 5320

Installing the ExtremeNetworks ExtremeSwitching 5320 is a straightforward process designed for quick deployment in racks, cabinets, or edge environments. Follow these steps to ensure a reliable start and smooth operation from day one:

• Prepare the enclosure and mounting—Rack-mount the switch using the supplied mounting kit. Ensure the chassis has adequate space for airflow and access to power connections. Confirm that the environment meets the switch’s operating temperature and humidity specifications.
• Power connections—Connect the switch to a reliable power source using the appropriate power cables. If your site provides redundant power, configure a second power feed to support failover and uptime objectives.
• Initial cable layout—Connect 24 copper ports to endpoint devices or distribution panels as required. For uplinks and aggregation, insert modular 10GBASE-X fiber modules (or appropriate transceivers) into the uplink slots and connect to core switches or data center devices.
• Management access and configuration—Power on the device and access the management interface via the console, a dedicated management port, or a secure web GUI, depending on your model. Start with a secure admin account and a management VLAN to isolate the switch from user traffic.
• Baseline configuration—Create VLANs, assign ports to appropriate VLANs, enable QoS policies for critical traffic (voice, video, data), and implement basic security measures (MAC locking, port security, ACLs). Apply a baseline firmware version and verify that all interfaces reach expected speeds and duplex settings.
• PoE and device provisioning—If your deployment uses PoE, configure per-port power budgets to support IP phones, cameras, and wireless APs. Validate PoE functionality by powering a sample device and confirming operation.
• Monitoring and validation—Set up SNMP or centralized monitoring, implement a simple health check, and verify that traffic flows correctly between access ports and uplinks. Run throughput tests to confirm line-rate performance and latency benchmarks under typical loads.

After the initial setup, consider enabling features that align with your network goals, such as advanced VLAN segmentation, traffic shaping for critical applications, link aggregation for resilient uplinks, and security policies to mitigate unauthorized access. Regular firmware updates from Extreme Networks help maintain feature parity, security, and performance improvements across your deployment.

Frequently asked questions

• What is the ExtremeSwitching 5320 best suited for? It is designed for mid-size campuses, branch offices, and edge data centers that require a reliable 24-port access layer with optional 10G uplinks and PoE support to power a range of devices.
• Does the 5320 support PoE? Yes, certain configurations of the 5320 include PoE-enabled ports, enabling power delivery to IP phones, cameras, and wireless access points without extra cables. The exact PoE budget depends on the chosen module and configuration.
• What management options are available? The switch supports standard enterprise management approaches, including web-based GUI, command-line interface (CLI), and integration with centralized network management and monitoring tools.
• Can I expand capacity later? Absolutely. The modular design allows for uplink expansion and fiber/copper module upgrades, enabling you to adapt to growing network demands without replacing the entire switch.
• What networks is the 5320 compatible with? It is well-suited for campus networks, edge data centers, and enterprise LANs that require robust Layer 2 switching, VLAN segmentation, and QoS, with the option to scale via high-speed uplinks and modular components.
