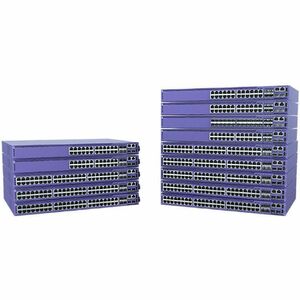

Extreme Networks ExtremeSwitching 5420F Ethernet Switch

The Extreme Networks ExtremeSwitching 5420F Ethernet Switch is engineered for performance, reliability, and scalable growth in modern enterprise networks. Designed to meet the demands of dense workspace environments, campus networks, and data centers, the 5420F combines a robust 48-port surface with flexible uplink options, PoE capabilities, and advanced Layer 2 switching features. This switch is built to deliver consistent throughput, low latency for real-time applications, and straightforward management for IT teams seeking high availability without complexity. With Extreme’s renowned commitment to secure, stable networking, the 5420F helps protect your network edge while enabling seamless policy enforcement, efficient traffic segmentation, and rapid deployment of new services.

• High-density port footprint: 48 Ethernet ports deliver ample access-level connectivity for desktops, IP phones, cameras, and wireless APs, consolidating switching needs into a compact, scalable solution.
• PoE and PoE+ ready: PoE-enabled ports simplify powering IP phones, cameras, and other PoE devices directly from the switch, reducing wiring complexity and centralizing power management.
• Layer 2 switching with enterprise-grade features: Advanced VLANs, QoS, ACLs, port security, and link aggregation support reliable traffic segmentation and performance tuning for voice, video, and data traffic.
• Flexible uplinks and fiber options: Designed to accommodate copper and optical fiber connections, enabling easy integration with core and aggregation layers and future-proofing for higher-speed uplinks.
• Scalable and reliable architecture: Modular design principles, potential for stacking or expansion, along with robust cooling and power considerations to support growing networks over time.

Technical Details of Extreme Networks ExtremeSwitching 5420F Ethernet Switch

• Model: ExtremeSwitching 5420F Ethernet Switch
• Port configuration: 48 fixed Ethernet ports for dense access layer connectivity
• PoE capabilities: PoE/PoE+ support on selected ports to power endpoint devices
• Layer support: Primarily Layer 2 switching with features that enable secure, efficient traffic handling; adaptable for broader network requirements
• Uplink options: Supports flexible fiber and copper interfaces for uplinks to distribution or core layers
• Management: Enterprise-grade management interfaces (CLI, GUI/embedded, and telemetry-compatible tools) for centralized control
• Policy and security: VLANs, ACLs, QoS, and port security to enforce network policies and protect traffic
• Stacking and scalability: Designed to fit into scalable network architectures with potential stacking and growth paths
• Redundancy and reliability: Options for redundant power and robust cooling to enhance availability in critical deployments
• Form factor: Compact chassis footprint suitable for rack-mount installations in data centers or branch facilities

How to Install Extreme Networks ExtremeSwitching 5420F Ethernet Switch

Installing the 5420F is straightforward for administrators familiar with enterprise switches. Follow these best practices to deploy quickly and securely, while ensuring long-term reliability and ease of management:

• Prepare the rack and environment: Verify mounting rails, rack space availability, and proper airflow. Ensure the installation area maintains appropriate temperature and humidity levels for optimal performance.
• Unpack and inspect components: Confirm all listed parts are present, including the 5420F chassis, power supplies (if applicable), and management console access accessories. Check for any shipping damage before powering on.
• Connect power and grounding: Attach power cords to the switch and connect to an appropriate power source. If redundant power is used, install additional power supplies and configure failover settings as needed.
• Establish initial management access: Connect a management workstation to a console or management port. Access the switch’s console for initial configuration and set a secure administrator password.
• Configure basic network settings: Assign an initial management IP, set up VLANs for management and user traffic, and enable essential features such as QoS, ACLs, and port security according to your security policy.
• Enable PoE behavior and uplink media: If PoE devices will be deployed, enable PoE on the appropriate ports and configure any power budgets. Attach fiber or copper uplinks to connect to upstream core or distribution devices.
• Set up monitoring and access controls: Configure SNMP or telemetry as needed, enable logging, and apply access control policies to manage who can administer the switch and view traffic statistics.
• Implement security best practices: Enable features such as storm control, DHCP snooping, and dynamic ARP inspection where applicable. Regularly update firmware to protect against vulnerabilities.
• Test connectivity and performance: Validate end-to-end VLANs, QoS policies, and PoE operation. Run basic throughput tests to verify the switch meets your required performance targets.
• Document the deployment: Record IP addresses, VLAN schemas, QoS policies, and firmware versions for future maintenance and troubleshooting.

Frequently Asked Questions

• What is the ExtremeSwitching 5420F best used for?

  The 5420F is designed for dense access-layer deployments in enterprise networks, campuses, and branch offices. It provides reliable Layer 2 switching with PoE capabilities, flexible uplinks for core/distribution integration, and a scalable path to growth as network requirements evolve.

• Does the 5420F support stacking?

  ExtremeSwitching devices are built with scalability in mind, offering architectures that support expansion and increased bandwidth. While specific stacking configurations depend on model options and firmware, the 5420F is designed to integrate with other Extreme switches to deliver higher port density and consolidated management.

• Can I power devices through PoE on the 5420F?

  Yes. The switch includes PoE-enabled ports to power compatible devices such as IP phones, cameras, and wireless access points, helping to simplify cabling and centralize power management.

• What management tools work with the 5420F?

  Enterprise-grade management tools and interfaces are supported, including CLI access, a graphical management portal, and telemetry/monitoring options that integrate with broader Extreme Networks management ecosystems for centralized control and analytics.

• What should I consider regarding security and QoS?

  Configure VLANs to segment traffic, apply ACLs to restrict unauthorized access, and implement QoS policies prioritizing latency-sensitive traffic such as voice and video. Regular firmware updates and security hardening practices help protect the network edge.
