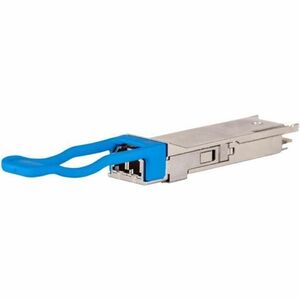

Extreme Networks QSFP+ Module

Experience premium performance in your optical network with the Extreme Networks QSFP+ Module. Designed for high-density data centers and enterprise backbones, this 40 Gigabit Ethernet transceiver uses 40GBase-LR4 technology to deliver long-reach, reliable connectivity over single-mode fiber. Built for efficiency and ease of deployment, the QSFP+ LR4 module combines four 10 Gbps lanes into a single, hot-swappable transceiver that maximizes network throughput while minimizing footprint. Ideal for campus interconnects, metro networks, and data center core-to-core links, it provides robust link budgets, low power consumption, and resilient operation under demanding conditions. The module is engineered to be compatible with Extreme Networks devices and other vendors that support QSFP+ LR4, offering flexible migration paths and future-proof scalability for evolving 40G Ethernet deployments. Whether you’re upgrading an existing 10G network or building a new 40G backbone, this transceiver delivers the reliability and efficiency necessary to keep critical applications—cloud, databases, virtualization, and analytics—moving at optimal speed.

• High-density 40GBase-LR4 QSFP+ module delivering 40 Gbps across four lanes, ideal for data centers and campus backbones. The LR4 optics provide reliable long-reach connectivity over single-mode fiber, enabling scalable, future-ready 40 Gigabit Ethernet networks with minimal fiber footprint and streamlined cabling.
• Flexible deployment and broad compatibility. This QSFP+ module is designed for Extreme Networks switches and other vendor platforms that support QSFP+ LR4, offering plug-and-play integration, hot-swappable installation, and a future-proof upgrade path for mixed-vendor environments. It’s crafted to simplify migration from 10G to 40G by preserving existing fiber infrastructure where possible.
• Single-mode fiber compatibility for long-haul links. Built for long-distance connections, the LR4 optical solution uses four wavelengths to maximize reach while maintaining strong signal integrity. It’s well-suited for inter-building links, data center interconnects (DCI), and distribution across campuses where high bandwidth must traverse distances without compromising quality.
• Efficient, reliable operation in demanding environments. The module emphasizes energy efficiency and thermal stability, helping data centers manage power budgets while maintaining consistent throughput. Its robust design supports standard data-center temperature ranges and provides dependable performance under peak workloads and busy traffic periods.
• Easy installation, powerful diagnostics, and comprehensive support. The QSFP+ LR4 transceiver is built for straightforward deployment—from rack to fiber—with clear indicators and vendor-backed support. Its compatibility with industry standards means you can quickly diagnose link issues, optimize performance, and keep networks aligned with service-level expectations.

Technical Details of Extreme Networks QSFP+ Module

• Form Factor: QSFP+ optical transceiver module
• Data Rate: 40 Gbps (40GBase-LR4)
• Fiber Type: Single-mode fiber (SMF)
• Wavelengths: Four 1310 nm LR4 channels
• Reach: Up to 10 kilometers on standard single-mode fiber (link distance depends on fiber quality and network budget)
• Connector Interface: QSFP+ pluggable module; hot-swappable
• Compliance: MSA compliant; RoHS compliant
• Power Consumption: Designed for typical data-center power envelopes (exact figures vary by model and vendor implementation)
• Operating Conditions: Suitable for standard data-center environments with reliable performance across typical temperature ranges

How to install Extreme Networks QSFP+ Module

• Power down the compatible device (switch, router, or optical line card) or follow vendor guidance for hot-swappable insertion if supported.
• Ground yourself and handle the QSFP+ module by the edges to prevent damage to connectors.
• Remove any protective caps from the module and the fiber connectors, and inspect the fiber ends for cleanliness.
• Insert the QSFP+ module into the appropriate slot until it seats firmly and the latch engages. Do not force the module; if you feel resistance, verify alignment and slot compatibility.
• Reconnect fiber trunks, ensuring connectors are clean and properly mated (use appropriate LC/MPO connectors as required by your cabling plan). Avoid bending fibers sharply and maintain correct bend radii.
• Power up the device and monitor the status LEDs and management console for a healthy link. Run basic connectivity tests and verify throughput to confirm proper operation.

Frequently asked questions

• Q: What is a QSFP+ LR4 module and what is it used for? A: A QSFP+ LR4 module is a 40GBASE-LR4 optical transceiver that uses four 10 Gbps lanes to provide 40 Gbps Ethernet over single-mode fiber for long-reach connections between data centers, campus networks, and backbone links.
• Q: What type of fiber is required? A: Single-mode fiber (SMF) is required for LR4 operation to achieve the advertised reach and performance.
• Q: How far can this module reach? A: Reach can vary with fiber quality and installation, but LR4 transceivers typically support distances up to about 10 kilometers on standard SMF; actual distance should be validated in your link budget calculation.
• Q: Is the module hot-swappable? A: Yes. The QSFP+ LR4 transceiver is designed for hot-swappable deployment on devices that support QSFP+ modules, enabling flexible maintenance without powering down the entire system.
• Q: How do I verify the module is functioning correctly after installation? A: Check device management software or LEDs on the transceiver, verify link status, and perform basic throughput and BER testing using your network testing tools to ensure proper operation and performance.
• Q: Will this module work with non-Extreme Networks equipment? A: It is designed to be compatible with devices that support QSFP+ LR4, including many enterprise and data-center switches. Always confirm with the device vendor’s compatibility matrix and ensure firmware support for optimal operation.
