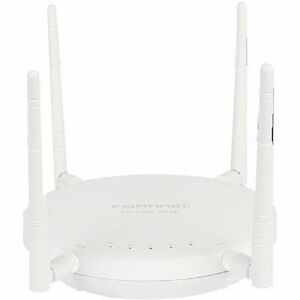

Fortinet FortiAP 223E Dual Band Indoor Wi-Fi 6 Access Point

The Fortinet FortiAP 223E is a robust, enterprise-grade indoor wireless access point designed for medium-density environments such as offices and classrooms. Built to deliver reliable, high-speed connectivity, this dual-band Wi‑Fi 6 (802.11ax) device combines two radios and two spatial streams to support seamless collaboration, video conferencing, and bandwidth-intensive applications. With a total aggregate throughput up to 1.24 Gbps and integration with Fortinet’s Security Fabric, the FortiAP 223E unites powerful wireless performance with advanced threat protection, centralized management, and easy deployment for IT teams handling growing network demands.

• High-performance Wi‑Fi 6 for medium-density spaces: The FortiAP 223E delivers modern 802.11ax capabilities across 2.4 GHz and 5 GHz bands, providing more efficient spectrum use, improved device capacity, and lower latency to support classrooms, offices, and other busy environments.
• Two radios with two spatial streams for reliable coverage: With two radio chains and two spatial streams, this access point maintains strong, stable connections even as more devices join the network, ensuring smooth video, voice, and data traffic.
• Enterprise-grade security integrated with Fortinet Security Fabric: FortiAP 223E leverages Fortinet’s security architecture to enforce granular access controls, threat protection, and seamless policy orchestration across wired and wireless segments. It supports modern encryption standards and centralized authentication to keep your network safe.
• Centralized management and scalable deployment: Manage FortiAP devices via FortiGate for on-premises orchestration or FortiCloud for cloud-based provisioning. Features like zero-touch deployment, templated configurations, and real-time monitoring simplify day-to-day administration and rollout across multiple sites.
• Flexible installation and power options for easy deployment: Designed for indoor use, the FortiAP 223E supports Power over Ethernet (PoE) to simplify cable management, enabling ceiling or wall mounting in classrooms, offices, and conference rooms while minimizing clutter.

Technical Details of Fortinet FortiAP 223E

• Wireless standards: 802.11a/b/g/n/ac/ax
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum aggregate throughput: Up to 1.24 Gbps
• Radio configuration: 2 radios with 2 spatial streams
• Security features: WPA2/WPA3 Enterprise, 802.1X, integrated Fortinet Security Fabric capabilities
• Management: Compatible with FortiGate-based management and FortiCloud for cloud-based administration
• Power: Power over Ethernet (PoE) compliant (IEEE 802.3af)
• Mounting options: Ceiling or wall mount for flexible installation
• Environment: Indoor use, suitable for offices and classrooms

How to install Fortinet FortiAP 223E

Installing the Fortinet FortiAP 223E is designed to be straightforward and scalable, allowing IT teams to quickly expand wireless coverage across campuses or office floors. Follow these general steps to ensure a smooth deployment that aligns with best practices for security, performance, and manageability:

1) Plan and prepare: Assess your floor plan to determine optimal AP placement, aiming for even coverage and minimal interference. Identify the PoE switch port and ensure the device will be powered through PoE, with network accessibility to the FortiGate or FortiCloud deployment target.

2) Mount and connect: Install the FortiAP 223E in a suitable indoor location—typically on the ceiling or high on a wall to maximize coverage. Run an Ethernet cable from the PoE switch to the FortiAP’s network interface. Power will be supplied via PoE, reducing the need for extra power adapters and cables.

3) Adopt and configure: Access your FortiGate or FortiCloud management interface to discover the new FortiAP. Adopt the device into the appropriate FortiGate unit or cloud project, assign the device to a specific wireless network (SSIDs) and VLANs, and apply the desired security and access policies.

4) Create wireless profiles: Define separate SSIDs for 2.4 GHz and 5 GHz bands, configure encryption (WPA2/WPA3 Enterprise or other supported modes), and set authentication methods appropriate for your environment. Consider guest access with captive portal support and rate-limiting to protect your network from misuse.

5) Tune for performance and security: Adjust transmit power and channel selection to reduce interference and optimize throughput. Enable features such as band steering, airtime fairness, and client health monitoring as needed. Regularly monitor device status, throughput, and client distribution from the FortiGate or FortiCloud dashboard to ensure consistent performance across the deployment.

6) Maintain and scale: As your network grows, extend coverage by adding additional FortiAP 223E units or other Fortinet wireless access points. Use templated configurations and centralized management to ensure consistent policy enforcement and simplified maintenance across all sites.

Frequently asked questions

• What wireless standards does the FortiAP 223E support? It supports 802.11a/b/g/n/ac/ax, giving you backward compatibility with older devices while delivering the efficiency and capacity benefits of Wi‑Fi 6 for newer devices.
• Is FortiAP 223E managed through FortiGate or FortiCloud? Yes. FortiAP devices can be managed via FortiGate on-premises or through FortiCloud for cloud-based provisioning and monitoring, enabling scalable centralized management.
• Does the FortiAP 223E require a specific PoE standard? The device is designed to operate with Power over Ethernet (PoE) via IEEE 802.3af, allowing for flexible, cleaner installations with a single Ethernet cable delivering both data and power.
• Can I deploy guest networks with FortiAP 223E? Yes. Fortinet’s wireless solutions support guest access with captive portal, isolation from corporate resources, and appropriate bandwidth controls to protect internal networks.
• What environments is the FortiAP 223E best suited for? It is ideal for medium-density spaces such as offices, classrooms, and meeting rooms where reliable wireless performance and centralized security management are priorities.

With its Wi‑Fi 6 capabilities, dual-band operation, and enterprise-grade security, the Fortinet FortiAP 223E is designed to deliver scalable, secure, and reliable wireless coverage for modern organizations. Its integration with FortiGate and FortiCloud means you can deploy, monitor, and optimize performance from a single pane of glass, simplifying administration while maintaining rigorous security standards. The FortiAP 223E’s compact indoor form factor, PoE-powered installation, and flexible management options make it a practical choice for IT teams seeking to modernize their wireless infrastructure without sacrificing control or protection. Whether you’re refreshing a university classroom, upgrading an office floor, or expanding a retail network, the FortiAP 223E offers the performance, security, and manageability required to meet today’s connected demands.
