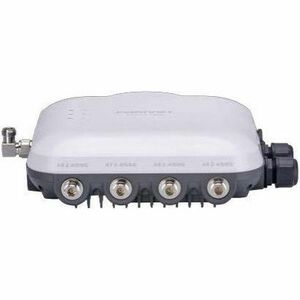

Fortinet FortiAP 432G Tri-Band Wi-Fi 6E Indoor/Outdoor Access Point

The Fortinet FortiAP 432G is an enterprise-class, ruggedized wireless access point built to deliver high-performance connectivity in challenging environments. This indoor/outdoor device brings three radios for tri-band coverage and supports IEEE 802.11ax with the latest Wi‑Fi 6E features, including operation on the 6 GHz band. With a total up to 8.16 Gbit/s aggregate data rate, it handles dense client populations, bandwidth-intensive applications, and mission-critical workloads across campuses, warehouses, stadiums, and outdoor spaces. The FortiAP 432G pairs top-tier wireless performance with robust network integration, offering a 10 Gigabit Ethernet uplink and an additional 1 Gigabit Ethernet port with PoE out to power nearby devices. In essence, it combines speed, scale, and security in a rugged form factor designed for both indoor and outdoor deployments.

• Tri-band Wi-Fi 6E coverage with three radios enables robust indoor and outdoor performance across 2.4 GHz, 5 GHz, and 6 GHz bands, supporting high-density client environments and smoother experiences for latency-sensitive applications.
• Up to 8.16 Gbps aggregate data rate with a radio capable of up to four spatial streams, delivering strong throughput for users and devices in busy venues, classrooms, and warehouses.
• High-speed networking with a 10 Gigabit Ethernet uplink plus an additional 1 Gigabit Ethernet port with PoE out, allowing extensive data paths and the power over Ethernet needs for nearby devices such as cameras and sensors.
• Enterprise-grade security and centralized management through Fortinet’s Security Fabric, enabling policy enforcement, threat protection, and seamless integration with FortiGate/ FortiAP management and FortiCloud for cloud-based administration.
• Rugged indoor/outdoor design that supports deployment in challenging environments, delivering reliable performance while maintaining a flexible installation footprint for diverse venues.

Technical Details of Fortinet FortiAP 432G

• Wireless Standards: 802.11ax (Wi-Fi 6E), with backward compatibility to 802.11ac/802.11n technologies, enabling tri-band operation across 2.4 GHz, 5 GHz, and 6 GHz bands; capable radio supports up to four spatial streams.
• Data Rate: Up to 8.16 Gbps aggregate throughput, leveraging three radios for high-speed client access and efficient spectrum use.
• Radio Configuration: Three radios delivering tri-band coverage to maximize capacity and minimize interference in dense environments.
• Ethernet Interfaces: 1 x 10 Gigabit Ethernet uplink and 1 x 1 Gigabit Ethernet port with PoE out for powering adjacent devices; supports PoE for flexible placement and simplified wiring.
• Deployment & Form Factor: Ruggedized indoor/outdoor access point designed for versatile mounting and operation in varied environments, from classrooms and campuses to warehouses and outdoor spaces.
• Security & Management: Integrated with Fortinet Security Fabric for centralized policy management, threat protection, and visibility; managed via FortiGate/ FortiAP ecosystem with optional FortiCloud support for cloud-based administration.

How to install Fortinet FortiAP 432G

To install the Fortinet FortiAP 432G and achieve optimal performance, follow these general steps:

• Plan the deployment by assessing coverage needs, environmental conditions, and mounting locations to maximize signal quality across all bands.
• Mount the AP in a secure, weather-tolerant location suitable for indoor or outdoor use, ensuring clear air around the device and proper clearance for heat dissipation.
• Connect the unit to the network using the 10 Gigabit Ethernet uplink for high-speed backhaul; connect the secondary 1 Gigabit Ethernet port if PoE out power delivery is required for nearby devices.
• Power on the device and access the Fortinet management interface through FortiGate (or FortiCloud if you’re using cloud management) to adopt the AP into the Fortinet Security Fabric.
• Configure SSIDs, security policies (including WPA3 and enterprise-grade authentication), RF profiles, and access controls to align with your network design and user requirements.
• Deploy coverage optimizations by adjusting channel selection, transmit power, and band steering settings; verify performance with client tests and monitor alerts through Fortinet’s management platform.

Frequently asked questions

• Q: What bands does the FortiAP 432G support? A: It supports 2.4 GHz, 5 GHz, and 6 GHz bands (Wi-Fi 6E), enabling tri-band coverage for high-density environments.
• Q: How fast is the uplink? A: It features a 10 Gigabit Ethernet uplink and an additional 1 Gigabit Ethernet port with PoE out for powering nearby devices.
• Q: How is the device managed? A: It can be centrally managed through Fortinet’s FortiGate/FortiAP management platform and can be integrated with Fortinet Security Fabric; cloud management via FortiCloud is also available.
• Q: Is this AP suitable for outdoor deployments? A: Yes, it is designed as an indoor/outdoor, ruggedized access point suitable for a range of environments including outdoor spaces.
• Q: Does it support OFDMA? A: Yes, as part of the Wi-Fi 6E specification, OFDMA is supported to improve efficiency in dense deployments.
