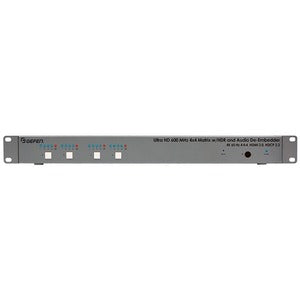

Gefen 4K Ultra HD 600 MHz 4x4 Matrix
Designed for top-tier AV installations, the Gefen 4K Ultra HD 600 MHz 4x4 Matrix is a high-performance HDMI distribution solution that channels up to four HDMI sources to four displays or video zones with flawless 4K quality. Built to handle today’s 4K content while offering headroom for tomorrow’s formats, this matrix switch provides flexible routing, advanced control options, and enterprise-grade reliability for home theaters, corporate conference rooms, and multi-room installations.
- Flexible 4x4 routing that lets you send any of four HDMI sources to any of four displays, with independent routing across zones. This enables dynamic multi-room distribution, picture-in-picture setups, and complex AV configurations without compromising signal integrity.
- 600 MHz bandwidth delivers pristine 4K Ultra HD video at 60 Hz with wide color support, including 4:4:4 color spaces and HDR signals. This ensures rich, accurate imagery from source to display, even in demanding cinematic scenes or bright intervention content.
- Advanced EDID management keeps every connected device operating in harmony. Automatic EDID detection with options for manual override ensures compatibility across a mix of players, projectors, TVs, and displays, reducing signal dropouts and display blanking.
- Comprehensive control and integration options, including front-panel switching, an IR remote, RS-232, and Ethernet control. Perfect for custom installers who want reliable, scriptable control within a larger automation system or standard classroom and boardroom environments.
- Durable, professional-grade enclosure with 1U rack-mount compatibility. The compact chassis is designed for quiet operation in home theaters and dedicated rooms, while its robust build supports long-term reliability in demanding venues.
Technical Details of Gefen 4K Ultra HD 600 MHz 4x4 Matrix
- Video bandwidth: 600 MHz (approximately 18 Gbps)
- Inputs: 4 HDMI inputs
- Outputs: 4 HDMI outputs
- Max resolution: 4K Ultra HD at 60 Hz (3840×2160) with support for 4:4:4 color and HDR
- HDCP compliance: HDCP 2.2 compliant for protected 4K playback
- Color and imaging: Supports standard color spaces with 4:4:4 and 4:2:2 options where applicable
- EDID management: Automatic EDID detection with programmable overrides
- Control interfaces: Front-panel switching, IR remote, RS-232, Ethernet
- Power: External power supply (universal AC input)
- Enclosure: 1U rack-mountable chassis with attachment ears for standard racks
How to install Gefen 4K Ultra HD 600 MHz 4x4 Matrix
- Plan your routing: Map which sources will connect to which displays or zones and determine the preferred EDID and control method for the installation.
- Connect sources: Attach each HDMI source device (Blu-ray players, streaming boxes, gaming consoles, etc.) to the four HDMI inputs on the matrix using high-quality HDMI cables rated for 18 Gbps or higher.
- Connect displays: Run HDMI cables from the matrix’s four outputs to the corresponding displays or video zones. Ensure that each display is configured to the expected input and resolution.
- Power and placement: Connect the matrix to its external power supply and place it in a ventilated area. Install the unit in a rack or on a stable surface, ensuring adequate clearance for cooling.
- Initial configuration and testing: Use the front panel or IR remote to perform the initial routing tests. If needed, adjust EDID settings to ensure compatibility with all connected devices. Verify each source-to-display path at the desired resolutions and confirm that audio, video, and any HDR metadata are transmitted correctly.
- Integrate control: For installations requiring automation, connect the matrix via RS-232 or Ethernet to the control system. Save and test control commands, ensuring reliable switching and system-wide responsiveness.
Frequently asked questions
-
Q: What resolutions does the Gefen 4K Ultra HD 600 MHz 4x4 Matrix support?
A: It supports 4K Ultra HD at 60 Hz (3840×2160) with robust color and HDR capabilities, along with standard 1080p and other supported formats for compatibility with legacy devices. -
Q: How is video quality maintained across multiple outputs?
A: The matrix uses a 600 MHz bandwidth pathway to preserve signal integrity across all inputs and outputs, minimizing artifacts and preserving sharp detail from source to display. -
Q: What control options are available?
A: Control is available via front-panel buttons, an IR remote, RS-232, and Ethernet, making it suitable for standalone use or integration into larger control systems and automation environments. -
Q: Is EDID management supported?
A: Yes. The matrix features EDID detection with programmable override to ensure consistent compatibility across diverse devices and display configurations. -
Q: Can this device be rack-mounted?
A: Absolutely. The Gefen matrix is designed in a 1U rack-mountable chassis and includes rack ears for secure installation in standard equipment racks.
