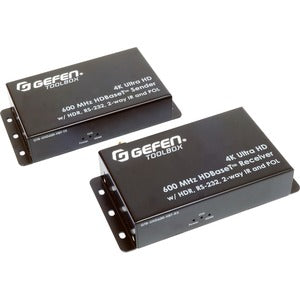

Gefen GTB-UHD600-HBT: 4K Ultra HD HDBaseT Extender with 600 MHz Bandwidth, 80m Reach

Experience uncompromising 4K HDR video distribution with this compact, high‑performance HDBaseT extender. The Gefen GTB-UHD600-HBT extends full-bandwidth HDMI 2.0 signals with HDR up to 80 meters (264 feet) over a single CAT-5e or better cable, delivering pristine 4K imagery, 12‑bit deep color, and HDCP 2.2 protection. Designed for AV installers, home theaters, and corporate environments, it combines robust performance with flexible control options, including RS-232 and bi-directional IR, so you can manage displays and sources from either end of the link. Whether you’re wiring a multi‑room home cinema, a conference room, or a digital signage setup, this extender ensures reliable, studio‑quality signal transmission across long distances without sacrificing color, detail, or immersion.

• Full‑bandwidth HDMI 2.0 transmission supports 4K at 60 Hz with HDR and 12‑bit Deep Color, preserving color accuracy and detail from source to display for a cinematic viewing experience.
• Long‑reach performance over CAT-5e or better delivers up to 80 meters (264 feet) of extension on a single cable, reducing the need for multiple runs and simplifying installation in large rooms or venues.
• HDMI 2.0 compatibility with HDCP 2.2 ensures seamless compatibility with the latest 4K content protections, letting you enjoy streaming services, Blu-ray disks, and gaming without handshake issues.
• Integrated control options for total system management include bi-directional IR and RS‑232, enabling remote device control and integration with automation systems from either end of the link.
• Audio and video fidelity with immersive formats supports Dolby Atmos and high color depth, delivering expansive audio and vivid, lifelike visuals to create a true theater-like experience in any environment.

Technical Details of Gefen GTB-UHD600-HBT

• Model: Gefen GTB-UHD600-HBT
• Bandwidth: 18.2 Gbps (600 MHz)
• Video: HDMI 2.0, 4K at 60 Hz, HDR, 12-bit Deep Color
• HDCP: HDCP 2.2 compliant
• Distance: Up to 80 meters (264 feet) over CAT-5e or better
• Interfaces: HDMI input/output, HDBaseT transport, IR in/out (Bi-Directional), RS-232
• Audio: Dolby Atmos support for immersive multi‑channel audio
• Cable Type: CAT-5e or better recommended for best performance
• Protection: Designed to maintain signal integrity with resilient, professional-grade circuitry

How to install Gefen GTB-UHD600-HBT

Setting up the Gefen GTB-UHD600-HBT is straightforward, designed to minimize complexity while maximizing reliability in critical AV installations. Follow these steps to achieve a clean, rock‑solid 4K extension from source to display:

• Begin by identifying the HDMI source you want to extend (Blu-ray player, media server, game console, etc.) and connect its HDMI output to the transmitter’s HDMI input port.
• Run a single CAT-5e (or better) cable from the transmitter to the receiver. For best results, use a high-quality shielded CAT‑5e/6 cable and keep runs away from power lines to minimize interference.
• Connect the receiver’s HDMI output to the display or projector that will receive the extended signal. Ensure the display is configured to the correct HDMI input and that mirroring or extended display modes align with your setup.
• Set up any control integration required for your environment. If you’re using IR, connect the IR blaster/eye or IR cables as appropriate for bi-directional control, and if RS‑232 control is part of your automation system, connect RS‑232 cables between the transmitter and receiver or your control hub.
• Power on all devices and verify the HDMI handshake. Confirm you’re receiving 4K at 60 Hz with HDR on the display, and test any audio pathways to ensure Dolby Atmos or other surround formats are being carried through correctly. Adjust any display or source settings if needed to optimize color depth and HDR performance.

Frequently asked questions

• Q: What is the maximum transmission distance? A: Up to 80 meters (264 feet) over CAT-5e or better, enabling long runs from a single transmitter to a distant display.
• Q: Which video features are supported? A: HDMI 2.0 with 4K at 60 Hz, HDR, and 12-bit Deep Color, ensuring high‑fidelity video with rich color detail.
• Q: Is HDCP 2.2 supported? A: Yes, the extender is HDCP 2.2 compliant, compatible with current 4K content protections.
• Q: Can I control devices remotely? A: Yes, via bi-directional IR and RS‑232, allowing remote source or display control across the link.
• Q: Does it pass through Dolby Atmos? A: Yes, the system supports Dolby Atmos through HDMI for immersive audio experiences.
