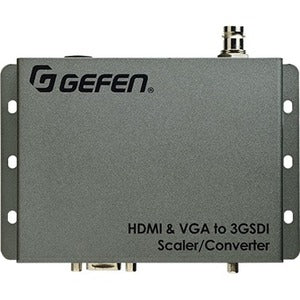

Gefen HDMI & VGA to 3GSDI Scaler/Converter

The Gefen EXT-HDVGA-3G-SC is a versatile video scaler and converter that bridges consumer and professional AV equipment by converting HDMI or VGA sources to SDI formats. It scales the input image to a professional SDI output, supporting 3G-SDI and single-link HD-SDI, while offering flexible audio embedding options. Whether you’re building a live production setup, a broadcast workflow, or an AV presentation system, this compact device delivers reliable signal integrity, flexible connectivity, and straightforward operation designed for demanding environments.

• Flexible signal paths: Connect a wide range of source devices via HDMI or VGA and route the signal to SDI hardware. The unit outputs compatible SDI formats, including 3G-SDI and single-link HD-SDI, enabling long-distance transmission over standard SDI cables without compromising image quality.
• Audio embedding options: Seamlessly combine audio with video by embedding HDMI audio or analog L/R audio into the SDI stream. This makes it easy to synchronize video with multi-channel sound in professional workflows, eliminating separate audio cables for many setups.
• Powerful scaling and compatibility: The device scales the incoming signal to match SDI device requirements, adjusts aspect ratio, and preserves color fidelity. It supports a variety of input resolutions and formats so you can work with mixed sources without manual reconfiguration at every step.
• Build for professional use: Designed for reliability in live events, studios, and broadcast environments. The unit’s robust processing and stable SDI output ensure consistent performance during demanding productions and long cable runs.
• Easy integration and setup: Quick-connect input/output, straightforward power connection, and intuitive operation make it easy to integrate into existing AV pipelines. It’s a practical solution for rental houses, post houses, churches, and corporate AV installations requiring SDI-ready video from consumer sources.

Technical Details of Gefen HDMI & VGA to 3GSDI Scaler/Converter

• Model: Gefen EXT-HDVGA-3G-SC
• Inputs: HDMI and VGA source options for flexible connectivity with computers, Blu-ray players, set-top boxes, or other video devices
• Outputs: SDI formats including 3G-SDI and single-link HD-SDI to feed professional monitors, switchers, or broadcast equipment
• Video processing: Scales and converts HDMI or VGA input to SDI, with support for matching output resolution to your SDI-enabled devices
• Audio embedding: Embeds HDMI audio or analog L/R audio into the SDI output for synchronized video and audio in a single SDI stream
• Resolution and color: Supports common HD resolutions and color spaces compatible with SDI workflows, preserving image quality during scaling
• Power: External power supply required for operation
• Physical design: Compact form factor suitable for desktop use or integration within AV racks and desks
• Compatibility: Works with standard SDI infrastructure, enabling long cable runs and integration with routers, switchers, and displays that accept SDI inputs

how to install Gefen HDMI & VGA to 3GSDI Scaler/Converter

1) Power down all equipment. Connect the Gefen EXT-HDVGA-3G-SC to a suitable power source using the included power supply. 2) Connect your HDMI or VGA source to the appropriate input on the scaler/converter. If you’re using HDMI, ensure the source’s audio is set to HDMI audio if you plan to embed HDMI audio into SDI. 3) Connect the SDI output from the Gefen device to your SDI-capable monitor, switcher, or recording device using a standard SDI cable. For best results over long distances, use high-quality SDI cables and verify cable lengths are within recommended specifications. 4) If you plan to embed analog audio, connect the analog L/R audio source to the device’s audio input as described in the user manual. 5) Power on the source device and the Gefen scaler/converter. If needed, adjust the output settings (resolution, aspect ratio, or color space) to match the capabilities of your SDI device, ensuring correct framing and synchronization. 6) Test the signal by viewing the SDI-connected display or monitoring device. If you encounter issues, verify input format compatibility, ensure the correct audio routing, and confirm that the SDI device is configured to receive the specified SDI family (3G-SDI or HD-SDI). 7) Save any preferred settings if the unit provides a memory option, and note your configuration for future use in similar deployments.

Frequently asked questions

Q: What sources can I connect to the Gefen HDMI & VGA to 3GSDI Scaler/Converter?

A: You can connect HDMI and VGA sources to the scaler/converter. The device then outputs a scaled SDI signal suitable for 3G-SDI or single-link HD-SDI inputs on compatible equipment.

Q: Can I embed audio into the SDI stream?

A: Yes. The device supports embedding HDMI audio or analog L/R audio into the SDI output, allowing synchronized video and audio in a single SDI signal for professional workflows.

Q: What resolutions and formats does it support?

A: The scaler/converter is designed to handle common HD resolutions and adapt them for SDI output formats such as 3G-SDI and HD-SDI. It scales input from HDMI or VGA to match the requirements of SDI devices, preserving image integrity across formats.

Q: Is external power required?

A: Yes. An external power supply is required to operate the Gefen EXT-HDVGA-3G-SC, and proper power management helps ensure stable performance during long sessions or broadcasts.

Q: How do I optimize installation in a complex AV setup?

A: Plan your signal path to minimize hops and maintain consistent timing. Use high-quality cables, configure the input source to a compatible resolution, and ensure the SDI device is set to the correct SDI format. If you’re integrating audio, verify that the audio route (HDMI or analog) is correctly selected and that the SDI device accepts embedded audio. Finally, test with a live signal and adjust scaling or aspect ratio as needed to achieve the desired presentation quality.
