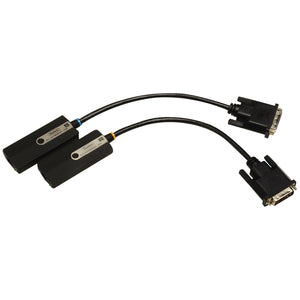

Gefen Small Fiber Optic Pigtail Module Extends DVI up to 1000 feet

GefenSKU: 3366137

Price:
Sale price$1,905.99

Description

Gefen Small Fiber Optic Pigtail Module Extends DVI up to 1000 feet

Experience reliable, high-quality DVI transmission over long distances with Gefen’s Small Fiber Optic Pigtail Module. Designed for professional installations and demanding home theater setups alike, this compact extender uses a single-strand multimode fiber optic cable to deliver pixel-perfect video across vast spaces. With HDCP support, robust fiber optics, and easy integration into existing AV racks, it’s the smart choice when copper cables fall short. Whether you’re wiring a large conference room, digital signage network, or a multi-room home theater, this module breaks the distance barrier while preserving image clarity and color fidelity.

  • Long-distance DVI extension: Extend DVI signals up to 1000 feet (300 meters) from source to display, enabling versatile room layouts, balcony setups, or large viewing environments without compromising image quality.
  • HDCP-compliant transmission: Maintain secure playback for protected content across the extended link, ensuring compatibility with Blu-ray discs, streaming services, and other HDCP-protected media.
  • Fiber-optic reliability: Uses a single-strand 50/125 µm multimode OM2 fiber with SC-terminated connectors to minimize electromagnetic interference, reduce crosstalk, and deliver stable, pristine video across long runs.
  • Compact, plug-and-play design: A small, unobtrusive module that fits neatly in equipment racks or cabinet spaces, simplifying installation and maintaining a clean AV infrastructure with fewer bulky components.
  • Versatile DVI support and compatibility: Delivers standard DVI signals across supported resolutions, ensuring sharp images, precise color, and reliable performance with a wide range of displays and source devices.

Technical Details of Gefen Small Fiber Optic Pigtail Module Extends DVI up to 1000 feet

  • Distance: Up to 1000 feet (300 meters) DVI extension for large rooms and multi-zone installations
  • Fiber type: Single-strand 50/125 µm multimode OM2 fiber for high bandwidth and low attenuation
  • Connector: SC-terminated fiber optic cable for secure, simple connections
  • HDCP support: HDCP-compliant transmission to protect and enable protected content playback
  • DVI compatibility: Extends standard DVI signals to preserve image clarity and color accuracy

How to install Gefen Small Fiber Optic Pigtail Module Extends DVI up to 1000 feet

To achieve the best results, plan your installation with careful attention to fiber routing and device placement. Follow these steps to install the Gefen fiber optic DVI pigtail module and maximize performance across long distances:

  • Step 1: Plan the path. Map out the route from the video source to the display, selecting a fiber-friendly path that minimizes bends, kinks, and potential stress points. Avoid tight radii and ensure the fiber can be routed securely within racks or conduit.
  • Step 2: Prepare the fiber. Confirm you have a single-strand 50/125 µm OM2 multimode fiber with SC termination. Inspect the fiber ends for cleanliness, and keep connector ends protected until you’re ready to connect.
  • Step 3: Connect the DVI source to the module. Attach the DVI output from your video source to the appropriate port on the Gefen pigtail module. Ensure a snug, secure connection to prevent signal loss.
  • Step 4: Route and connect the fiber. Insert the SC-terminated fiber into the fiber port of the pigtail module, securing it to prevent accidental disconnection. Route the fiber along the planned path, preserving bend radii and avoiding excessive tension.
  • Step 5: Connect the display side. At the receiving end, connect the other module or end of the fiber run to the display’s corresponding DVI input. Verify the DVI connection at the display and ensure HDCP is enabled if required for your content.
  • Step 6: Power up and test. Power on the source and display, then verify that the video is clean, stabilizes correctly at the desired resolutions, and that HDCP content plays without interruption. If you encounter artifacts, recheck fiber connections and routing for any bends or dust on connectors.

Frequently asked questions

  • Q: What is the maximum extension distance? A: The Gefen Small Fiber Optic Pigtail Module extends DVI up to 1000 feet (300 meters).
  • Q: What type of fiber is used? A: It uses a single-strand 50/125 µm multimode OM2 fiber with SC termination.
  • Q: Does it support HDCP? A: Yes, the device supports HDCP-protected content over the extended link.
  • Q: What video formats and resolutions are supported? A: The system extends standard DVI signals; supported resolutions align with the capabilities of your DVI source and display.
  • Q: Is additional power required? A: The description notes a passive fiber-based DVI extension; no separate power supply is typically required for the basic link, but always refer to the installation guide for your specific configuration.
  • Q: Can I run multiple displays from a single source? A: This solution is designed for a point-to-point DVI extension. For multi-display setups, use appropriate splitters or matrix solutions compatible with fiber DVI extenders.
