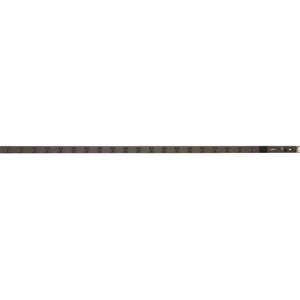

Geist Basic 20-Outlets PDU

The Geist Basic 20-Outlets PDU (Model NSVBN200-102R20TL) is a straightforward, cost-effective power distribution solution engineered for facilities that already have surge protection in place. This non-surge unit provides reliable, organized power distribution to wiring closets, server rooms, and equipment racks, delivering 20 NEMA 5-20R outlets fed from a NEMA L5-20P input. Designed for simplicity and durability, it is the ideal choice for data centers and IT environments seeking a dependable, easy-to-deploy PDU without redundant surge protection features. If your repertoire includes surge-protected systems, this basic PDU complements your existing protection while streamlining power delivery to critical hardware.

• 20 NEMA 5-20R outlets offer ample, flexible access to powered devices across racks and enclosures, enabling clean cable management and centralized power distribution for IT gear.
• Non-surge design ensures compatibility with facilities that already deploy surge protection, avoiding duplicate protection while delivering reliable power to servers, switches, and network appliances.
• Rugged, rack-ready construction with a standard 19-inch footprint makes it a natural fit for data centers, wiring closets, and equipment racks in enterprise environments.
• Effortless installation and universal compatibility with 120V, 20A circuits; features a NEMA L5-20P input plug and 20 NEMA 5-20R receptacles for straightforward power distribution.
• Cost-effective power distribution that simplifies power management, reduces wiring clutter, and supports uptime for critical infrastructure in a compact, dependable package.

Technical Details of Geist Basic 20-Outlets PDU

• Model: NSVBN200-102R20TL
• Type: Basic non-surge PDU
• Outlets: 20 x NEMA 5-20R
• Input plug: NEMA L5-20P
• Voltage: 120V
• Current rating: 20A
• Protection: Non-surge (no built-in surge protection)
• Mounting: 19-inch rack-mount compatible
• Construction: Steel chassis for durability

How to install Geist Basic 20-Outlets PDU

• Plan the mounting location inside a standard 19-inch equipment rack, ensuring there is adequate space for cord routing and accessibility to all twenty outlets.
• Install the PDU into the rack using the appropriate hardware (rack screws or brackets) to secure it firmly in a 1U (or compatible) position as supported by your rack system.
• Connect the input power by inserting the NEMA L5-20P plug into a 120V, 20A power source that matches your facility’s electrical distribution plan.
• Route power cords cleanly from devices to the 20 NEMA 5-20R outlets, using cable management features in the rack to minimize tangling and maximize airflow.
• Label each outlet if needed, verify that total connected load remains within your circuit’s 20A limit, and perform a functional check by powering on essential equipment to confirm proper operation.

Frequently asked questions

• What is the Geist Basic 20-Outlets PDU designed for? It is a non-surge, basic power distribution unit intended to deliver reliable, organized power to equipment racks, wiring closets, and server rooms, particularly in environments where surge protection is already provided by separate devices.
• How many outlets does it have and what outlet type? It features 20 NEMA 5-20R receptacles for versatile 120V power distribution.
• What plug type is used to feed the PDU? The unit uses a NEMA L5-20P input plug, suitable for 120V, 20A power sources.
• Is there built-in surge protection? No. This is a basic non-surge PDU that assumes existing surge protection in the facility or on upstream devices.
• Where should I install this PDU? It is designed for rack-mount installation in standard 19-inch racks, typical of data centers, server rooms, and wiring closets, to maximize accessibility and cable management.
