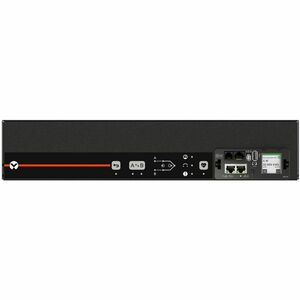

Geist rPDU AN05M2R0-20S203-2TL5TL5A011-D: 20-Outlets PDU with Rack Transfer Switch

The Geist rPDU AN05M2R0-20S203-2TL5TL5A011-D is engineered to deliver unparalleled reliability for critical IT equipment. This 20-outlet rack PDU integrates a sophisticated Rack Transfer Switch (RTS) that keeps your servers, storage, and networking gear powered without interruption. Designed for data centers, edge deployments, and high-density racks, it provides seamless automatic load transfer between power sources in milliseconds, reducing downtime and extending uptime for essential workloads.

• Automatic RTS power switching in milliseconds: The Geist rPDU detects a loss of power and jumps to the alternate source in less than 4-8 milliseconds, ensuring continuous operation for single corded devices and minimizing service disruption.
• 20 outlets for dense rack environments: A compact, 19-inch rack-mountable solution that offers 20 outlets to support a wide range of servers, storage arrays, switches, and other essential equipment from a single, organized power distribution point.
• No phase synchronization required: The transfer logic operates independently of phase alignment, enabling rapid, autonomous switching without complex configuration or timing dependencies.
• Redundant power paths for mission-critical uptime: Dual-path power routing helps protect against power loss, providing an added level of resilience for devices that cannot tolerate outages.
• Intelligent monitoring and straightforward management: Clear status indicators and an intuitive design make monitoring simple, enabling quick diagnostics and easier maintenance in busy data centers and server rooms.

Technical Details of Geist rPDU AN05M2R0-20S203-2TL5TL5A011-D

• Outlet count: 20
• RTS transfer time: 4–8 milliseconds
• Redundant power-path capability: Supports automatic switching between primary and secondary power sources to sustain critical loads
• Phase synchronization: Not required for operation; RTS handles transfer autonomously
• Mounting compatibility: 19-inch rack-mountable design suitable for standard data center racks

how to install Geist rPDU AN05M2R0-20S203-2TL5TL5A011-D

• Plan your rack layout to accommodate 20 outlets and allocate space for the RTS controls and wiring. Ensure both primary and backup power sources are available and meet the electrical requirements of the RTS system.
• Prepare the rack by aligning rails and securing them according to your rack manufacturer’s guidelines. Position the Geist rPDU so the back of the unit remains accessible for cable management and maintenance.
• Mount the PDU into the rack using the appropriate hardware for your enclosure. Ensure fasteners are tightened to specification and that there is adequate clearance for airflow and service access.
• Connect the primary power source and the secondary (backup) source to the designated input paths on the RTS-enabled PDU. Follow the included wiring diagram to ensure correct polarity and labeling.
• Route and label the outlet cables to your devices. Power on the equipment and verify that the RTS indicators show healthy operation. Test the automatic transfer by simulating a loss of primary power and observing the rapid switch to the alternate source.

Frequently asked questions

• What is a rack transfer switch (RTS) in a PDU? An RTS is a smart feature within a PDU that automatically transfers the load from a failed or interrupted power source to an alternate, healthy source, without human intervention, to protect critical equipment.
• How quickly does the Geist rPDU switch power? The RTS is designed to transfer the load in less than 4-8 milliseconds, minimizing downtime for connected devices.
• Do I need phase synchronization for proper RTS operation? No. The RTS in this Geist PDU operates independently of phase synchronization, ensuring seamless transfer without additional configuration.
• How many devices can I power with this 20-outlet PDU? The unit provides 20 outlets, suitable for a range of servers, storage, switches, and other essential IT equipment within a standard 19-inch rack.
• Can I monitor the PDU’s status and transfers? Yes. The design includes status indicators and an intuitive interface to help you monitor power health and RTS activity easily, simplifying maintenance and uptime planning.
