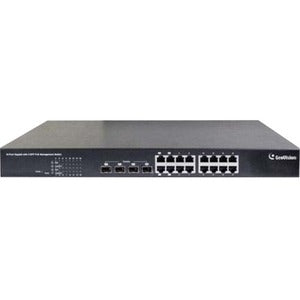

GeoVision GV-POE1611 16-Port Gigabit PoE+ Switch

The GeoVision GV-POE1611 is a robust 16-port Gigabit PoE+ web-managed switch designed for expanding IP-based deployments with ease. Built to power and connect networked devices like IP cameras, access points, and VoIP phones, this 16-port PoE+ switch delivers reliable performance in a compact 1U chassis. With IEEE 802.3at PoE+ support and a generous total power budget, it eliminates the need for multiple power outlets to drive powered devices, simplifying installations and reducing clutter. Whether you’re building a small surveillance system, a campus-wide IP network, or an enterprise-ready backbone, GV-POE1611 provides the capability and management flexibility you need to keep devices online, securely monitored, and easily scalable.

• Power over Ethernet Plus (PoE+) with up to 250 W total power budget allows you to run IP cameras, wireless access points, and VoIP phones directly from the switch, minimizing the need for extra power outlets and cables across installations.
• 16x 10/100/1000BaseTX PoE+ ports plus 4 combo SFP uplink ports deliver flexible, high-speed connectivity. Each PoE+ port can deliver up to 30 W for demanding devices, while the SFP uplinks provide fiber or copper options for reliable backhaul and extension to distant network segments.
• Web-based management (Web Smart) enables quick setup, monitoring, and control. Centralized features include traffic prioritization, QoS, VLAN support, port security, and comprehensive status monitoring to maintain optimal performance across all connected devices.
• Rack-mount design and solid 1U metal chassis provide durable, enterprise-grade reliability in server rooms, equipment racks, or network closets. The 19-inch rack compatibility makes it easy to integrate with other networking gear and maintain a clean, professional install.
• Energy-efficient operation and streamlined administration help you optimize power usage and reduce maintenance effort. The switch supports automatic negotiation and stable link management, ensuring compatibility with a wide range of PDs and minimizing wasted power.

Technical Details of GeoVision GV-POE1611

• Ports: 16x RJ-45 Gigabit Ethernet PoE+ ports + 4 combo SFP ports for fiber or copper uplinks
• PoE Standard: IEEE 802.3at PoE+ with a total power budget up to 250 W
• Per-Port PoE Capability: Up to 30 W per PoE+ port (subject to total power budget and device requirements)
• Management: Web-based Web Smart management interface for configuration, monitoring, and control
• Performance: Gigabit forwarding for high-throughput data transfer and smooth handling of HD video streams
• Rack-Mount: 1U height, 19-inch rack-friendly chassis for easy installation alongside other equipment
• Routing/Layer Capabilities: Primarily Layer 2 features with VLAN, QoS, and security options for optimized traffic handling
• Power Consumption: Designed for efficient operation within its PoE budget (maximum consumption aligned with total PoE load)
• Security and Management: Centralized user access control and status monitoring via web interface to help secure deployments

How to Install GeoVision GV-POE1611

Setting up the GV-POE1611 is straightforward and network-ready for immediate use in most environments. Follow these steps to deploy quickly and safely:

• Unpack and verify: Remove the switch from its packaging and check that all included mounting hardware and cables are present. Ensure the 1U chassis and rack ears are ready for installation in your server room or equipment closet.
• Rack mounting: Attach the rack ears to the sides of the switch using the supplied screws. Slide the unit into an available 19-inch rack space and secure it with screws to prevent movement.
• Power connection: Plug the switch into a reliable AC power source using the appropriate power cord. Ensure the power outlet can support the total PoE load you plan to deploy across PD devices.
• Network cabling: Connect the GV-POE1611 to your core network or router using one of the four combo SFP uplinks for high-speed backhaul or fiber/copper options. Then connect your PoE-enabled devices (cameras, phones, APs) to the 16 RJ-45 PoE+ ports.
• Initial configuration: Access the Web Smart interface by entering the switch’s management IP address into your web browser. Use the provided credentials or the quick-start guide to log in and configure basic settings such as VLANs, QoS policies, and port assignments. Set up a secure management account and, if needed, enable HTTPS for encrypted access.
• Power and device management: Verify that PoE devices are receiving power and that the appropriate ports have the intended power priority. Use the web interface to monitor PoE status, power consumption, and device connectivity in real-time.
• Security and optimization: Configure VLANs to segment traffic, establish QoS rules to prioritize video streams, and enable port security to prevent unauthorized access. Regularly review port statistics to identify bottlenecks or misconfigurations.
• Documentation and maintenance: Keep a copy of your switch’s configuration and a simple network diagram for future maintenance. Plan periodic checks on firmware updates and security advisories from GeoVision to ensure continued protection and compatibility with evolving PDs.

Frequently asked questions

• What is the PoE budget of the GV-POE1611, and how many devices can it power simultaneously? The GV-POE1611 provides a total PoE+ budget of up to 250 W, enabling you to power several IP cameras, access points, or VoIP phones across its 16 PoE+ ports. The exact number of PDs supported depends on the power requirements of each device; high-demand devices will share the 250 W budget across ports, so plan your deployment accordingly.
• Which devices are compatible with the 4 combo SFP uplinks? The 4 combo SFP ports support both SFP fiber modules and copper SFP/RJ-45 connections. This allows you to connect to fiber backbones for longer distances or to copper-based uplinks, giving you flexible options for integrating the switch into different network topologies.
• Does it support remote management and monitoring? Yes. The GV-POE1611 includes a Web Smart management interface that enables you to configure, monitor, and manage the switch from a web browser. This facilitates quick setup, ongoing monitoring of PoE usage, port status, and network traffic without requiring complex command-line access.
• Can I mount this switch in a standard rack? Absolutely. The GV-POE1611 is designed for easy rack installation in a 19-inch rack, occupying 1U of vertical space. This makes it ideal for data centers, IT closets, or media rooms where organized rack setups are preferred.
• Is this switch suitable for IP camera deployments? Yes. With PoE+ support and Gigabit speeds on all ports, the GV-POE1611 is well-suited for IP camera setups, delivering both power and data over a single cable, simplifying installation and reducing clutter. The combination of PoE budget and reliable management features helps ensure stable, scalable surveillance solutions.
