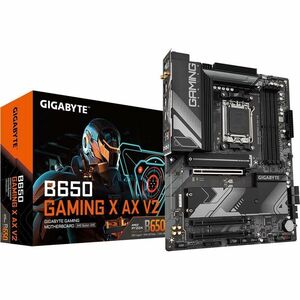

Gigabyte Ultra Durable B650 GAMING X AX V2 Motherboard | AMD AM5 | ATX

Experience durable, high-performance computing with the Gigabyte Ultra Durable B650 GAMING X AX V2 motherboard. Built for AMD’s AM5 ecosystem, this ATX motherboard blends robust power delivery, premium components, and advanced connectivity to unlock the full potential of the latest Ryzen processors. The design philosophy centers on longevity and reliability, delivering a steady foundation for gaming rigs, content creation stations, and enthusiast builds alike. With the B650 chipset at its core, you gain a balance of modern features, efficient power management, and flexible expansion options that keep pace with evolving hardware while maintaining value and stability. This motherboard is engineered to stay cool under pressure, enable smooth overclocking, and provide a stable platform for long sessions of gaming, streaming, and multitasking.

• Durable 8+2+2 Digital VRM design: The UD-inspired power delivery uses a precise digital PWM setup to deliver clean, stable power to the CPU, supporting AMD’s latest generations and providing headroom for overclocking within safe thermal and electrical limits.
• Premium cooling and thermal management: Integrated heatsinks, heat spreaders, and intelligent fan controls help maintain lower temperatures for the VRM, chipset, and M.2 drives, ensuring sustained performance during extended gaming marathons or rendering workloads.
• DDR5 memory support with robust overclocking: Designed for high-speed DDR5 modules, the board enables faster data transfer, improved efficiency, and enhanced system responsiveness, making multitasking and creative workflows feel snappier than ever.
• Comprehensive storage and expansion: Dual M.2 PCIe 4.0 slots and multiple SATA ports provide fast NVMe storage options and flexible data storage configurations, while PCIe slots and lanes offer ample room for GPUs, add-in cards, and peripherals.
• Solid connectivity suite: Built-in networking options, including wireless connectivity via a compatible Wi‑Fi/AX module and Bluetooth, along with Gigabit LAN and plentiful USB ports, ensure quick access to peripherals, external storage, and high-speed networks.

Technial Details of Gigabyte Ultra Durable B650 GAMING X AX V2

• CPU Socket: AM5 — ready for AMD Ryzen 7000 series and future generations, providing a stable, feature-rich platform for high-performance CPUs.
• Chipset: AMD B650 — balancing modern features with value-focused performance for mainstream gaming and multitasking builds.
• Form Factor: ATX — standard size compatible with a wide range of cases, offering ample I/O and expansion space.
• Memory Support: DDR5 memory slots with support for high-speed modules and robust overclocking headroom; designed to maximize bandwidth and responsiveness for gaming and production tasks.
• Memory Capacity: Supports ample memory capacity across four DIMM slots, enabling large RAM configurations for demanding workloads.
• Storage Options: Dual M.2 PCIe 4.0 slots for ultra-fast NVMe storage and multiple SATA ports for additional SSDs and HDDs, providing flexible data storage configurations.
• Expansion Slots: PCIe expansion including a PCIe 4.0 x16 slot for graphics and additional PCIe slots for expansion cards, with layout designed for optimal airflow and power delivery.
• Networking: Integrated wireless connectivity via a Wi‑Fi/AX module (as available on variant) and Bluetooth, plus Gigabit Ethernet for reliable wired connections.
• USB Connectivity: Multiple USB ports including USB 3.x front and rear connections, supporting fast peripheral interfaces and high-speed data transfer.
• Power Design: 8+2+2 digital VRM with high-quality components to ensure stable voltage regulation and reliable CPU performance under load.
• Cooling Solutions: Comprehensive cooling strategy with integrated heat sinks and cooling features to maintain system temperatures during intensive tasks.
• BIOS and Software: User-friendly BIOS with intuitive controls for tuning, profiles, and fan curves; Gigabyte software ecosystem to help customize performance and peripherals.

How to Install Gigabyte Ultra Durable B650 GAMING X AX V2

• Prepare your workstation: Gather an AMD AM5 CPU, DDR5 memory modules, a compatible ATX case, a power supply with adequate wattage, and any expansion cards you plan to install.
• Install the CPU: Open the AM5 socket lever, align the CPU, and carefully seat it in the socket. Secure the retention mechanism and apply thermal compound if your cooler requires it.
• Memory installation: Insert DDR5 DIMMs into the correct memory slots as indicated by the motherboard manual, ensuring each module clicks into place with even pressure.
• Mount the motherboard: Align the I/O shield with the case, then secure the motherboard to the standoffs using the provided screws. Ensure there is no contact between metal standoffs and PCB.
• Storage and expansion: Install NVMe SSDs into the M.2 slots with the screws provided, and install any PCIe expansion cards or a discrete GPU into the appropriate PCIe slots. Connect power cables to the GPU as required.
• Power and cooling: Connect the 24-pin ATX and 8-pin CPU power connectors from the power supply. Attach the CPU cooler and any case fans to the appropriate headers on the motherboard for optimal thermal management.
• Initial boot and BIOS setup: Power on and enter the BIOS to configure memory XMP profiles, boot order, and fan profiles. Check hardware recognition and update the BIOS to the latest version if needed.
• OS installation: Proceed with your preferred operating system installation on the NVMe drive, then install chipset drivers, audio drivers, and any necessary utility software from Gigabyte’s support page.

Frequently asked questions

• Q: What processor socket does this motherboard support? A: It uses the AMD AM5 socket, designed for Ryzen 7000-series processors and newer generations within the AM5 platform.
• Q: Does this motherboard support DDR5 memory? A: Yes. It is equipped with DDR5 memory slots and is tuned for high-speed DDR5 modules with reliable overclocking potential.
• Q: What storage options are available? A: The board provides dual M.2 PCIe 4.0 slots for fast NVMe storage and multiple SATA ports for additional SSDs and HDDs, offering flexible storage configurations.
• Q: What about networking and Wi‑Fi? A: The design includes built-in wireless connectivity via a Wi‑Fi/AX module (depending on SKU) and Bluetooth, plus Gigabit Ethernet for wired networking. USB ports cover a broad range of peripherals.
