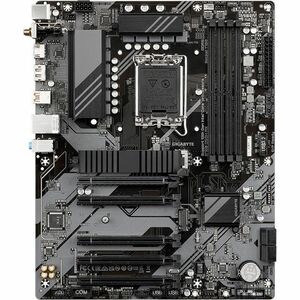

Gigabyte B760 DS3H AX Gaming Desktop Motherboard – Intel B760, LGA-1700, ATX

Elevate your gaming rig with the Gigabyte Ultra Durable B760 DS3H AX Gaming Desktop Motherboard. Crafted around the Intel B760 chipset and the reliable LGA-1700 socket, this ATX motherboard is built to deliver steady power, fast PCIe 4.0 connectivity, and robust durability for demanding gaming sessions and everyday PC tasks. It combines Gigabyte’s signature Ultra Durable engineering with a practical feature set designed to support modern CPUs, high-speed storage, and a clean, stable platform for immersive gameplay and content creation alike.

• 8+2+1 Phases Hybrid Digital VRM Design: This power delivery system is engineered to maintain clean, stable voltage under load, ensuring CPUs receive consistent power for long gaming marathons or heavy multitasking. The hybrid digital VRM architecture optimizes efficiency and thermal performance, helping your system stay responsive during intense gaming moments or CPU-intensive workloads. With this design, you gain improved stability, reduced voltage fluctuations, and smoother performance across extended sessions.
• 8+2+1 Phases Low RDS(on) MOSFETs with Premium Choke and Capacitors: The board uses low resistance MOSFETs paired with premium chokes and capacitors to improve transient response and minimize oscillation. This combination translates to faster, more reliable power delivery to critical components, improved thermal behavior, and enhanced overall system stability even when overclocking or pushing the platform to its limits. The result is a rugged foundation for your gaming rig or productivity workstation.
• PCIe 4.0 Design for Next-Gen Speed: Built to work seamlessly with PCIe 4.0 devices, the B760 DS3H AX is ready to harness the higher bandwidth and faster data transfer rates that PCIe 4.0 enables. This translates into snappier NVMe SSD performance, quicker game loading, and smoother streaming or content creation workflows that rely on fast storage and peripheral throughput. The board’s PCIe 4.0 design helps you stay ahead as your components and accessories evolve.
• Ultra Durable Engineering for Long-Term Reliability: Gigabyte’s Ultra Durable philosophy focuses on enduring performance through quality components and thoughtful layout. Expect sturdier build quality, better voltage regulation, and reliable operation over time, even in dynamic cooling environments or more demanding setups. This translates to fewer interruptions, more consistent frame rates, and a platform you can trust for daily use or extended gaming sessions.
• Expansion, Compatibility, and Ready for Modern Builds: The B760 DS3H AX supports a versatile set of expansion options and peripherals, giving you room to grow as your needs change. Whether you’re adding high-speed storage, multiple GPUs (where applicable by form factor and slot availability), or additional USB and I/O capabilities, this motherboard provides a solid foundation for a capable gaming desktop that can adapt to new components and features over time.

Technical Details of Gigabyte B760 DS3H AX Gaming Desktop Motherboard

• Chipset: Intel B760
• Socket: LGA-1700
• Form Factor: ATX
• VRM Design: 8+2+1 Phases Hybrid Digital VRM
• Power Delivery: Low RDS(on) MOSFETs with premium choke and capacitors
• PCIe 4.0 Ready: PCIe 4.0 design for higher bandwidth devices
• Durability: Ultra Durable components and layout for stability

how to install Gigabyte B760 DS3H AX Gaming Desktop Motherboard

• 1) Prepare your workspace and install the I/O shield into the PC case. Ensure the shield is firmly seated and aligned with the motherboard mounting hole layout.
• 2) Install the motherboard standoffs in the case according to the case’s screw hole pattern for an ATX board.
• 3) Place the motherboard into the case, align the rear I/O cutouts with the I/O shield, and secure it with screws at all mounting points.
• 4) Connect the 24-pin ATX power connector and the CPU power connector to the motherboard, ensuring firm seating for reliable power delivery.
• 5) Install the CPU, apply thermal paste if needed, and attach the CPU cooler. Connect the CPU fan and any additional cooling fans to the appropriate headers on the motherboard.
• 6) Insert RAM modules into the correct dual-channel slots as indicated by the motherboard’s documentation. Ensure they click into place and are fully seated.
• 7) Install storage devices (NVMe SSDs or SATA drives) and connect them to the appropriate motherboard headers or M.2 slots as applicable.
• 8) Install expansion cards (GPU, sound cards, etc.) into the PCIe slots, securing them with screws and reconnecting any required power cables from the PSU.
• 9) Connect case USB, audio, and front-panel headers to the motherboard according to the motherboard’s labeling. Double-check all connections before powering on.
• 10) Power on and enter BIOS to configure boot order, memory XMP profiles, and any system settings. Save changes and install your operating system and drivers for a smooth first boot.

Frequently asked questions

• Q: What processor does this motherboard support?
  A: This motherboard uses the Intel LGA-1700 socket and is built on the Intel B760 chipset, making it compatible with compatible 12th/13th generation Intel Core processors. Always verify CPU compatibility with the motherboard’s CPU support list before purchase.
• Q: Does it support PCIe 4.0?
  A: Yes. The board features PCIe 4.0 design, enabling high-bandwidth devices and faster storage performance as PCIe 4.0 components become standard in modern builds.
• Q: Is this motherboard suitable for overclocking?
  A: The 8+2+1 Phases Hybrid Digital VRM and premium components provide robust power delivery for stable operation. While it supports demanding workloads, high-end CPU overclocking capabilities depend on the CPU model and cooling solution in use. Refer to Gigabyte’s official documentation for processor-specific guidance.
• Q: What form factor is it?
  A: The Gigabyte B760 DS3H AX is an ATX motherboard, suitable for standard ATX cases with appropriate mounting and clearance.
• Q: Are there any features to improve durability?
  A: Yes. The board emphasizes Ultra Durable design, premium chokes, capacitors, and low RDS(on) MOSFETs to improve transient response and minimize oscillation, contributing to long-term reliability in gaming and everyday use.
