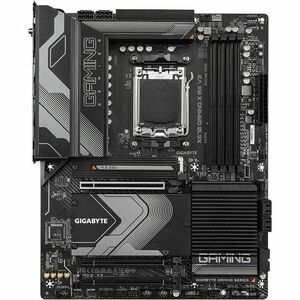

Gigabyte Ultra Durable X670 GAMING X AX V2 Motherboard – AMD X670 Chipset, AM5 Socket, ATX

This Gigabyte motherboard is built for serious gaming and productivity on the AMD X670 platform, pairing an AM5 socket with robust power delivery and cutting-edge PCIe 5.0 support. Designed for high-performance Ryzen processors, it blends a premium 6-layer 2X copper PCB, advanced cooling, and a mid to high-end feature set to deliver stable overclocking, fast storage, and responsive system performance. The board’s 8+8 solid pin CPU power connectors, 60A DrMOS, and digital VRM design work together to keep heat low and efficiency high even when pushing the clock speeds. With PCIe 5.0 readiness, an expansive M.2 storage layout, and an aluminum I/O cover, this motherboard blends aesthetics, durability, and formidable functionality for gamers, creators, and enthusiasts who demand the best from their AMD Ryzen build.

• Robust power design for demanding Ryzen CPUs: 8+8 solid pin CPU power connectors paired with a Twin 14+2+2 digital VRM design and 60A DrMOS deliver clean, stable power to overclocked CPUs while maintaining efficiency and thermal performance under load.
• PCIe 5.0 readiness with multi-SSD potential: Ready for PCIe 5.0 with a dedicated PCIe 5.0 x4 M.2 slot, enabling blazing-fast NVMe storage and future-proof bandwidth for demanding games and applications.
• Advanced thermal management: A fully covered MOSFET heatsink system supported by an 8 mm mega-heatpipe and 7 W/mK thermal conductivity pads to keep hot zones cool during extended gaming sessions or heavy workloads.
• Premium PCB construction and cooling: A 6-layer, 2X copper PCB design reduces impedance and improves signal integrity, while the mid-loss PCB layout, aluminum I/O cover, and high-grade thermal components maximize reliability and aesthetics.
• Comprehensive I/O and expandability: Ample connectivity with PCIe 5.0 ready slots, M.2 storage support, and an aluminum I/O cover that adds durability and a sleek finish to your build while keeping ports accessible and protected.

Technical Details of Gigabyte Ultra Durable X670 GAMING X AX V2 Gaming Desktop Motherboard - AMD X670 Chipset - Socket AM5 - ATX

• Chipset: AMD X670
• Socket: AM5
• Form Factor: ATX
• Power Design: 8+8 solid-pin CPU power connectors, Twin 14+2+2 Digital VRM, 60A DrMOS
• PCB Construction: 6-layer, 2X copper
• Thermal System: Fully covered MOSFET heatsinks, 8 mm Mega-Heatpipe, 7 W/mK thermal conductivity pad
• PCIe: PCIe 5.0 readiness with at least one PCIe 5.0 x4 M.2 slot
• I/O: Aluminum I/O cover design for enhanced durability and aesthetics
• Storage: Support for PCIe Gen5 storage via M.2, with configuration aligning to the X670 platform
• Note: For complete compatibility, refer to the motherboard manual and verify memory/CPU support lists provided by Gigabyte for AMD Ryzen 7000-series processors.

How to Install Gigabyte Ultra Durable X670 GAMING X AX V2

• Prepare your case and motherboard tray, ensuring you have the correct standoffs installed in the chassis for an ATX motherboard. Ground yourself to prevent electrostatic discharge before handling components.
• Install the CPU into the AM5 socket with the correct orientation as indicated by the motherboard and socket markings. Secure the CPU lever and apply any recommended thermal solution if you’re pairing a cooler that requires it.
• Open the memory slots and install your DDR5 modules in the recommended configuration for dual- or quad-channel operation. Ensure each module is fully seated and the locking latches click into place.
• Mount the motherboard into the case using the correct standoff positions. Align the I/O shield with the rear ports and secure the board with screws, ensuring it sits flat and evenly in the chassis.
• Connect the power supply cables: attach the 24-pin ATX power connector to the motherboard and the 8+8 CPU power connectors to the VRM. Tie in PCIe power to expansion cards as needed and route cables neatly to maximize airflow.
• Install PCIe devices, M.2 SSDs, and other expansion cards. If using an M.2 drive on the PCIe 5.0 x4 slot, secure it with the appropriate screws and ensure it is properly seated.
• Connect all case fans and cooling solutions. Recheck all front panel headers (Power, Reset, USB, audio) and BIOS/JBAT jumpers as specified in the manual. Power on to enter the BIOS and configure boot order, RAM timings, and any XMP/DOCP profiles for memory.
• Update the BIOS to the latest version from Gigabyte’s support site to ensure optimal compatibility with Ryzen CPUs and PCIe 5.0 devices. Save settings and reboot, then monitor system temperatures and fan curves to achieve the best balance between performance and acoustics.

Frequently asked questions

• What CPU sockets does this motherboard support? It is designed for AMD Ryzen processors using the AM5 socket, aligning with the latest generation of Ryzen CPUs and future-proofing for upcoming releases that support the AM5 platform.
• Is PCIe 5.0 supported? Yes. The board is PCIe 5.0 ready, including at least one PCIe 5.0 x4 M.2 slot, enabling high-speed NVMe storage and future-proof expansion options.
• How is the VRM system configured? The motherboard features an 8+8 solid-pin CPU power design with a Twin 14+2+2 Digital VRM and 60A DrMOS, delivering stable, clean power to overclocked CPUs and demanding workloads.
• What cooling features stand out? It includes fully covered MOSFET heatsinks, an 8 mm mega-heatpipe, and 7 W/mK thermal conductivity pads, designed to keep VRMs and other critical components cool under load.
• What about build aesthetics and durability? An aluminum I/O cover enhances durability and provides a sleek look, while the high-quality 6-layer, 2X copper PCB improves signal integrity and long-term reliability.
