Hall 4K 4X4 HDMI Matrix Switch with simultaneous HDMI and HDBaseT outputs

HallSKU: 6792922

Price:
Sale price$2,816.28

Description

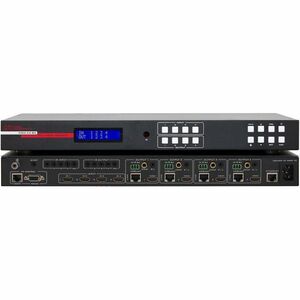

Introducing the Hall 4K 4X4 HDMI Matrix Switch (HSM-44-BX), a cornerstone in Genesis Digital Matrix series engineering that fuses exceptional video quality with intuitive control. In a compact 1-U enclosure, this 4x4 cross-point matrix delivers reliable routing from any of four sources to any of four displays, making complex AV deployments straightforward and scalable. The HSM-44-BX is designed for professional environments where seamless distribution, minimal latency, and flexible outputs matter—from classrooms and boardrooms to control rooms, medical facilities, retail environments, and high-end home theaters. Its standout feature is the ability to deliver simultaneous HDMI and HDBaseT outputs, enabling both local monitoring on HDMI displays and long-distance distribution over standard CAT cables, all from the same matrix. Built to endure demanding installations, this switcher merges robust build quality with a user-centric control approach, allowing installers and end-users to manage sources, routing, and configurations with ease. With 4K capabilities, broad compatibility with popular AV devices, and a feature set tuned for reliability, the HSM-44-BX is a practical, future-proof solution for creating distributed video networks that stay in sync and stay simple.

  • 4x4 cross-point matrix for full routing flexibility: four HDMI inputs can be switched to any or all four outputs, enabling complex source-to-display configurations without signal degradation or latency that disrupts presentations or media playback.
  • Simultaneous HDMI and HDBaseT outputs: each display path can receive both a native HDMI signal and a long-reach HDBaseT-enabled feed, giving you local viewing options while extending distribution to distant rooms or ceiling-mounted displays via a single CAT cable.
  • Compact 1-U rack-mount form factor with professional-grade reliability: designed to fit neatly in standard AV racks, preserving space in equipment rooms while delivering robust performance for day-to-day deployments and event environments.
  • Flexible control ecosystem for installers and users: control the matrix via front-panel operation, RS-232, Ethernet (network/control), and IR, with compatibility for integration into existing AV control systems and automation workflows.
  • Genesis Digital Matrix heritage and scalable architecture: part of Hall Research’s trusted family of matrix switchers, the HSM-44-BX leverages established design practices, firmware stability, and update potential to support evolving installation needs over time.

Technical Details of Hall 4K 4X4 HDMI Matrix Switch with simultaneous HDMI and HDBaseT outputs

  • Configuration: 4 inputs x 4 outputs cross-point matrix enabling flexible routing of any source to any display.
  • Outputs: HDMI outputs paired with HDBaseT outputs on each channel for simultaneous local viewing and extended-distance distribution.
  • Video capability: designed for 4K video distribution, enabling high-resolution content across multiple displays with reliable color fidelity and signal integrity.
  • Enclosure: compact 1-U rack-mountable chassis ideal for clean, space-conscious AV installations.
  • Control interfaces: front panel, RS-232, Ethernet control, and IR compatibility to support diverse installation environments and integration with existing control systems.
  • Compatibility note: built to work with standard AV devices in mixed environments, emphasizing interoperability with widely used HDMI-equipped sources and displays.
  • Power and installation considerations: designed for standard AV rack integration, with consideration for appropriate power provisioning and cable management in professional settings.
  • Reliability and support: backed by Hall Research’s reputation for durable, enterprise-grade AV hardware and ongoing firmware updates to address evolving needs.

How to install Hall 4K 4X4 HDMI Matrix Switch with simultaneous HDMI and HDBaseT outputs

  • Plan your AV layout: map each source to the destinations where you want to route content, noting which outputs will be used for HDMI displays and which will leverage HDBaseT extenders if distant displays are involved.
  • Connect video sources: plug each HDMI source (Blu-ray players, computers, media players, etc.) into the 4 HDMI inputs on the HSM-44-BX, ensuring clean, properly shielded HDMI cables to preserve signal integrity.
  • Connect HDMI displays: connect HDMI displays or projectors to the 4 HDMI outputs; verify that displays support the intended resolutions and refresh rates for the content you plan to run.
  • Configure HDBaseT paths: attach HDBaseT receivers to each HDBaseT output as needed, and run CAT cables from the matrix to the remote displays. Use high-quality CAT6a or better to maximize performance and distance coverage.
  • Establish control channels: connect control interfaces (RS-232 or Ethernet) to the matrix and ensure your control system or computer can reach the device on the network or via serial connection. If using an HDMI-CEC workflow, ensure compatibility with connected equipment where applicable.
  • Power up and initial setup: apply power to the matrix and verify the unit boots normally. Access the front panel setup or network interface to configure routing presets, confirm 4K operation, and begin building source-to-display mappings.
  • Test routing and synchronization: switch between different input-to-output pairings to confirm signal integrity across HDMI and HDBaseT paths. Validate color, black level, audio return (if applicable), and lip-sync where relevant to your content across all displays.
  • Save presets and document configurations: create and store commonly used routing presets for different scenes or events (e.g., meeting mode, presentation mode, or classroom lesson). Document the routing matrix so technicians can restore configurations quickly after maintenance.
  • Integrate with control systems: if you’re using an automation or control system, program the RS-232/Ethernet commands to streamline switching, and test automated routines to ensure reliability during live operations.
  • Ongoing maintenance: monitor firmware updates from Hall Research, perform periodic checks on cabling and connectors, and verify compatibility with new source devices or displays as your installation evolves.

Frequently asked questions

  • Q: What does “4x4” mean for this matrix? A: It indicates four HDMI inputs and four outputs, allowing four sources to be routed to four displays in any desired combination.
  • Q: Can I use HDMI and HDBaseT outputs at the same time? A: Yes. The HSM-44-BX is designed to support simultaneous HDMI and HDBaseT outputs to provide both local viewing and long-distance distribution from the same matrix.
  • Q: What control options are available? A: Control is available via front panel, RS-232, Ethernet (network), and IR, enabling integration with standard AV control systems and custom automation workflows.
  • Q: Is 4K support included? A: The unit is designed for 4K video distribution, offering high-resolution performance for compatible sources and displays.
  • Q: Is the enclosure suitable for rack installations? A: Yes, the device comes in a compact 1-U form factor suitable for standard AV racks and controlled environments.
