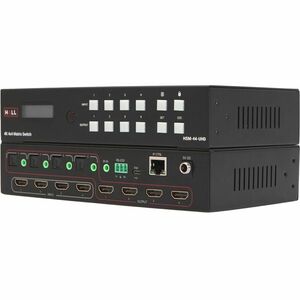

Hall 4K 4x4 Matrix Switch
The Hall 4K 4x4 Matrix Switch is a cornerstone of Hall Technologies’ Genesis Digital Matrix series, engineered to deliver pristine video routing with effortless control. Designed for professional AV environments—from control rooms and lecture halls to corporate lobbies and broadcast studios—this compact 1‑RU HDMI matrix provides reliable, scalable performance that meets the demands of modern 4K workflows. With four HDMI inputs and four HDMI outputs, the HSM-44-UHD enables flexible source-to-display routing, rapid source switching, and consistent signal integrity across multiple displays, all housed in a space‑savvy enclosure that fits neatly into standard rack setups. It combines high‑quality video fidelity with intuitive operation, helping technicians and operators focus on the content rather than the technology.
- Flexible 4×4 routing: Connect four HDMI sources to four displays or projectors and switch between any of the 16 possible input/output paths, ensuring the right content reaches the right screen at the right time in live environments.
- 4K UHD clarity and color fidelity: Designed to handle high‑resolution content with sharp detail and accurate color, preserving image integrity from source devices to displays even in dynamic presentations and dense AV environments.
- Compact, rack‑mountable design: A slim 1‑RU footprint makes installation straightforward in existing racks, control rooms, or portable AV setups, while keeping cabling organized and accessible for maintenance.
- Robust control options: Take command from the front panel for quick local routing, or integrate with room automation systems via Ethernet or serial interfaces, enabling seamless, programmable control within larger AV ecosystems.
- Part of a proven family: As a member of the Genesis Digital Matrix series, the Hall HSM family emphasizes reliable switching, consistent performance, and scalable expansion to meet growing installation needs over time.
Technical Details of Hall 4K 4x4 Matrix Switch
- Model: HSM-44-UHD (Hall 4K 4x4 Matrix Switch)
- Configuration: 4 HDMI inputs, 4 HDMI outputs; 4×4 cross‑point matrix
- Video format: 4K UHD capable routing for high‑resolution content with strong color fidelity
- Enclosure: 1‑U rack‑mount chassis designed for compact, professional AV installations
- Power: Standard AC power input compatible with typical 100–240V systems
- Control interfaces: Front panel for quick local routing, plus Ethernet and RS‑232 options for integration with existing control systems
- Dimensions (W×D×H): Standard 19" rack width; height of 1U with depth accommodating cabling and connectors
- Certifications: Conforms to common safety and electrical standards for professional AV gear
How to install Hall 4K 4x4 Matrix Switch
- Plan your routing and labeling to simplify setup and future maintenance, identifying which sources connect to which displays and how you intend to switch between routes.
- Mount the unit in a standard 19" equipment rack, securing the 1U chassis with appropriate rack ears, and ensuring adequate ventilation to prevent thermal buildup during long deployments.
- Connect sources to the four HDMI inputs and connect displays to the four HDMI outputs using high‑quality HDMI cables rated for 4K at the required distance to maintain signal integrity.
- Configure EDID handling and color settings to match your displays and content, ensuring reliable color reproduction and proper resolution negotiation across all routes.
- Establish control paths by connecting the matrix to your control network via Ethernet and/or the RS‑232 port, and verify reachability with your control system or software dashboard.
- Power up the device and perform a structured test: verify that each input can be routed to each output, confirm that the on‑screen image is stable, and check for any latency or artifacting across routes.
- Document the final routing map and backup configuration settings, labeling cables and keeping notes for future changes or expansions within the Genesis Digital Matrix ecosystem.
Frequently asked questions
- Q: What is the Hall 4K 4x4 Matrix Switch? A: It is a compact 1‑RU HDMI matrix switch that provides four inputs and four outputs, enabling flexible routing of 4K content between sources and displays in professional AV environments.
- Q: How many sources and displays can it manage at once? A: It supports four input sources and four display destinations simultaneously, offering 16 possible routing combinations to cover common classroom, conference, and control room configurations.
- Q: What control methods are available? A: Operators can use the front panel for quick in‑room adjustments, while system integrators can interface via Ethernet or RS‑232 to integrate with room control systems or digital matrix software for automated routing.
- Q: Does the matrix support 4K content? A: Yes, the device is designed for 4K UHD routing, delivering sharp detail and stable performance for modern 4K sources and displays when used with compatible cables and devices.
- Q: How should I install and configure it for best results? A: Install in a standard rack, connect sources and displays with proper HDMI cables, set EDID accordingly, configure control interfaces, and perform a structured routing test to confirm all paths operate as intended.
