Hanwha PNO-A9311R 4K Network Camera - Color - Bullet - White

HanwhaSKU: 9078349

Price:
Sale price$1,916.26

Description

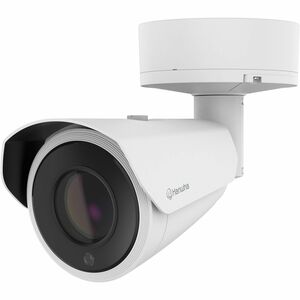

Hanwha PNO-A9311R 4K Network Camera - Color - Bullet - White

The Hanwha PNO-A9311R 4K Network Camera is built for serious outdoor surveillance, delivering ultra-crisp 4K UHD imagery and reliable performance in challenging environments. This color bullet camera captures exceptional detail at 3840 x 2160 resolution, ensuring recognizable faces, license plates, and fine scene elements even from a distance. With a powerful 31x optical zoom through a wide 6.91 mm to 214.70 mm varifocal lens, you can quickly switch from wide-area monitoring to close-up identification without repositioning the unit. The camera is designed to perform after dark thanks to infrared night vision that reaches up to 229.66 feet, providing clear monochrome detail when lighting is poor. Its rugged exterior, rated IP66 for weather resistance and IK10 for impact resistance, makes it a dependable choice for exterior walls, building facades, parking areas, and perimeter monitoring. Flexible mounting options (Conduit Mount and Gang Box Mount) combined with Gigabit Ethernet and USB connectivity simplify integration into existing security systems. In short, the PNO-A9311R blends 4K clarity with robust protection and versatile installation to meet demanding security needs across commercial applications.

  • 4K Ultra HD imaging: Captures video at 3840 x 2160 resolution with smooth 30 fps playback, delivering highly detailed footage suitable for facial recognition and license plate capture in outdoor scenes.
  • 31x optical zoom with varifocal lens: The 6.91 mm to 214.70 mm lens provides exceptional flexibility, enabling wide views for scene monitoring and powerful close-ups on distant subjects without losing image quality.
  • Infrared night vision up to 229.66 ft: Integrated infrared illumination preserves visibility in complete darkness, producing usable color images during the day and clear monochrome images at night.
  • Rugged enclosure and tamper protection: IP66-rated weatherproof housing shields against dust and heavy rain, while IK10-rated impact resistance helps prevent tampering and vandalism in outdoor settings.
  • Flexible connectivity and mounting: Gigabit Ethernet and USB interfaces support fast network integration, with mounting options including Conduit Mount and Gang Box Mount for versatile installation on building structures.

Technical Details of Hanwha PNO-A9311R

  • Imaging sensor: CMOS
  • Resolution: 3840 x 2160 (4K)
  • Frame rate: Up to 30 fps
  • Lens: 6.91 mm – 214.70 mm Varifocal, 31x Optical Zoom
  • Infrared range: 229.66 ft
  • Video codecs: H.264, H.265, MJPEG, H.264H, H.264M, H.265M, H.265H
  • Network interface: Gigabit Ethernet
  • USB interface: USB
  • Mounting options: Conduit Mount, Gang Box Mount
  • Protection ratings: IP66 (weatherproof), IK10 (vandal resistant)
  • Product type: Bullet camera, Color

How to install Hanwha PNO-A9311R

  • Step 1: Plan your installation site—select a location with a clear line of sight, adequate lighting for day use, and access to power or a PoE network switch. Confirm the mounting surface is sturdy enough to support the camera’s weight and withstand wind loads.
  • Step 2: Choose the appropriate mounting hardware—use the Conduit Mount or Gang Box Mount as needed to secure the housing to walls, boxes, or conduits. Attach the mount securely to the chosen surface and align the camera’s field of view toward the target area.
  • Step 3: Run cables and make connections—pull the network cable to the camera location and connect to a PoE-enabled network switch or injector. If USB features are used for maintenance or storage, route the USB cable as required. Ensure all connections are protected from the elements.
  • Step 4: Install and adjust the lens—securing the camera, power on, and configure the lens position. Use the 6.91 mm to 214.70 mm range to set a wide overview and then zoom in to critical zones for close-up details. Fine-tune focus and zoom to balance coverage and resolution.
  • Step 5: Configure network settings and test—assign a static IP or use DHCP as appropriate, enable the desired codecs (H.265/H.264/MJPEG), and test live view, playback, and night vision. Verify daylight color accuracy, infrared performance, and web-based configuration options.

Frequently asked questions

  • Q: What resolution does the Hanwha PNO-A9311R support? A: It supports 4K Ultra HD at 3840 x 2160 with up to 30 frames per second for smooth, detailed video.
  • Q: Is this camera suitable for outdoor environments? A: Yes. It is IP66-rated for weather resistance and IK10-rated for impact resistance, making it ideal for exterior installations exposed to the elements and tampering.
  • Q: What mounting options are available? A: The camera supports Conduit Mount and Gang Box Mount, offering flexible installation on walls, boxes, or conduits to fit building layouts.
  • Q: Does it have night vision capabilities? A: Yes. The camera includes infrared night vision with a range up to 229.66 feet for monitoring in darkness.
  • Q: Which video formats does it support? A: It supports multiple codecs, including H.264, H.265, MJPEG, H.264H, H.264M, H.265M, and H.265H, allowing efficient streaming and broad compatibility with different systems.
