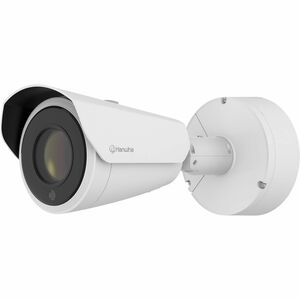

Hanwha PNO-A9311RLP 4K Network Camera – Color, Bullet, White, TAA Compliant

The Hanwha PNO-A9311RLP is a high-performance 4K network camera designed to deliver crystal-clear, reliable surveillance in demanding environments. With a true 4K resolution (3840 x 2160), a powerful 31x optical zoom, and long-range infrared night vision, this white bullet camera is built to capture essential details across wide-area scenes and distant targets. Its versatile video compression options—H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG—maximize bandwidth efficiency and storage savings without compromising image quality, making it an ideal choice for city surveillance, campuses, airports, transportation hubs, retail environments, and critical infrastructure. TAA compliant and supplied in a sleek white housing, the PNO-A9311RLP blends professional performance with a compact, unobtrusive form factor suitable for conduit mount or gang box installations.

• Ultra-high-resolution imaging: 4K video capture at 3840 x 2160 allows for exceptional detail and accurate identification in far-reaching scenes, enabling operators to recognize faces, license plates, and other critical details with confidence.
• Long-range 31x optical zoom: The 6.91 mm to 214.70 mm varifocal lens delivers 31x optical zoom, providing close-up views of distant targets without sacrificing image fidelity, ideal for perimeter monitoring and main arteries in urban environments.
• Proven night vision performance: IR illumination reaches up to 229.66 ft (approximately 70 meters), ensuring clear, color-rich or monochrome imagery in low-light conditions and complete 24/7 coverage for important sites.
• Adaptive video compression: Supports multiple streaming formats, including H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG, reducing bandwidth and storage needs while preserving detail in both day and night footage.
• Rugged, compliant, and flexible installation: TAA compliant white bullet housing with conduit mount and gang box compatibility provides robust, easy-to-install deployment options for professional security projects.

Technical Details of Hanwha PNO-A9311RLP

• Video encoding formats: H.265, H.265M, H.265H, H.264, H.264M, H.264H, MJPEG
• Resolution: 3840 x 2160 (4K) for ultra-clear surveillance imagery
• Frame rate: Up to 30 frames per second
• Lens and zoom: 6.91 mm to 214.70 mm varifocal lens with 31x optical zoom
• IR distance: 229.66 ft (approximately 70 m) for reliable night vision
• Sensor type: CMOS
• Connectivity: Gigabit Ethernet and USB interfaces
• Mounting options: Conduit Mount and Gang Box compatibility for versatile installations
• Housing and color: White bullet housing designed for outdoor/indoor use
• Compliance: TAA compliant for government and enterprise procurement

How to install Hanwha PNO-A9311RLP

Installing the PNO-A9311RLP involves planning a secure, accessible placement that leverages its maximum performance while safeguarding the camera from environmental stresses. Begin by confirming your power and networking approach; PoE (Power over Ethernet) is highly recommended to simplify installation by delivering both power and data over a single Ethernet cable. If PoE is unavailable, ensure you have an adequate power supply and a stable network connection to support 4K transmission and higher frame rates. Prepare the mounting surface, choosing a location with a clear line of sight for the desired field of view and sufficient ambient lighting for color imaging during the day.

• Plan the field of view: Determine the critical zones to monitor—entrances, corridors, parking areas—and identify vantage points for wide-angle coverage and zoomed-in identifications. Use the 31x optical zoom to frame distant objects without moving the camera excessively.
• Mount the camera: Install the conduit mount or gang box as required by your site’s infrastructure. Ensure the mounting surface is stable and weather-resistant if installed outdoors. Properly route and protect cables to avoid damage and to maintain signal integrity.
• Connect power and network: If using PoE, connect the camera to a PoE-enabled switch or injector. If not, wire the camera to a suitable power supply that matches the camera’s voltage and current requirements, then connect the Ethernet cable to your network.
• Configure on the network: Use the camera’s web interface or a compatible NVR/software to assign a static IP or enable DHCP, configure streaming profiles, set up the 4K video channel, and adjust frame rate, bitrate, and resolution to balance image quality with available bandwidth.
• Tune image and behavior: Calibrate exposure, white balance, and autofocus for varied lighting conditions. Enable WDR if supported to preserve detail in bright and dark regions. Activate infrared range settings for optimal night performance and configure motion detection or region-of-interest zones to optimize recording and alerts.

After installation, conduct a thorough field test: check color accuracy during daylight, verify zoom clarity at maximum magnification, test pan/tilt range if applicable, confirm night vision clarity at different distances, and validate remote access and alerting through your security management platform. Properly secure the camera’s enclosure, ensure all fasteners are tightened, and document the installation for future maintenance. The PNO-A9311RLP’s combination of high-resolution imaging and flexible mounting makes it well-suited for ambitious surveillance deployments, while its sleek white housing helps it blend with architectural aesthetics in modern facilities.

Frequently asked questions

• Q: What resolution does the Hanwha PNO-A9311RLP support? A: It supports 4K resolution at 3840 x 2160 to deliver crisp, highly detailed imagery.
• Q: What video formats does it support? A: It supports H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG for flexible bandwidth management.
• Q: How far can the camera see at night? A: The infrared night vision capability reaches up to 229.66 ft (about 70 meters), enabling monitoring in low-light conditions.
• Q: What mounting options are available? A: The camera is designed for conduit mount and gang box installations, with a white bullet housing suitable for indoor or outdoor use as specified.
• Q: Is this camera compliant with government procurement standards? A: Yes, the PNO-A9311RLP is TAA compliant, which meets requirements for many government and enterprise projects.
