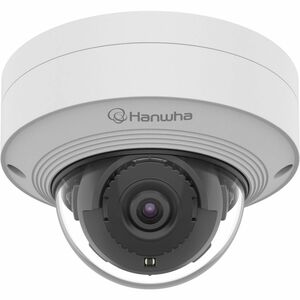

Hanwha QNV-C8012 5 Megapixel Outdoor Network Camera – Color Dome White

The Hanwha QNV-C8012 is a high-performance 5-megapixel outdoor network camera designed to deliver sharp, color-rich footage in a wide range of environments. Encased in a discreet white dome, this camera blends into architectural surroundings while standing up to the rigors of outdoor surveillance. With a fixed 2.40 mm lens, it provides a compact form factor ideal for mounting on ceilings, walls, or entryways, and it supports advanced video compression (H.265, H.264, MJPEG and profiles) to optimize bandwidth without sacrificing image quality. Built for reliability, the camera is engineered to operate in demanding conditions and to produce dependable, real-time video streams at up to 30 frames per second. Whether you’re safeguarding a campus, retail space, or industrial site, the QNV-C8012 combines essential features with simple installation and versatile mounting options to create a robust surveillance solution.

• 5 Megapixel daytime color with detailed 2592 x 1944 imaging for precise facial recognition, license plates, and scene analysis, ensuring critical details stay clear even at a distance.
• Infrared night vision enables consistent security coverage after dark, producing usable grayscale images in low light to help you monitor perimeters and entry points around the clock.
• Broad codec support—including H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG—providing efficient streaming, reduced bandwidth, and compatibility with existing video management systems.
• Compact 2.40 mm fixed lens housed in a white dome, offering a discreet, low-profile appearance while delivering a wide field of view suitable for doorways, corridors, and open spaces.
• Rugged outdoor design with vandal resistance and weather protection, featuring IK10-rated performance and IP6-rated enclosure, plus flexible mounting options (Hanging Mount, Backbox Mount, Conduit Mount, and Gang Box Mount) for versatile installation on buildings, poles, or ceilings.

Technical Details of Hanwha QNV-C8012 5 Megapixel Outdoor Network Camera

• Get this information from the "specifications" section of the product from https://ec.synnex.com/ using product "UPC" or "SKU" as reference

How to Install Hanwha QNV-C8012

• Plan the installation location to maximize coverage while minimizing blind spots. Consider doorways, entrances, loading docks, or entry points that demand high-detail capture and reliable night vision.
• Choose the appropriate mounting option from the available configurations: Hanging Mount, Backbox Mount, Conduit Mount, or Gang Box Mount. Ensure the surface is capable of supporting the camera and that mounting hardware is weather-sealed for outdoor use.
• Connect the camera to your network using the Fast Ethernet interface. If your network supports Power over Ethernet (PoE), leverage PoE to simplify installation by delivering both data and power through a single cable.
• Power up the camera and access the web-based interface for initial configuration. Set up the basic network settings, streaming profile (choose H.265 or H.264 for efficient bandwidth use), and ensure the 30 fps performance is achieved under typical operating conditions.
• Configure infrared night vision and motion settings to suit your environment. Verify daylight color performance, test the camera from multiple angles, and confirm that recordings, alerts, and access permissions are functioning as intended for ongoing security monitoring.

Frequently asked questions

• What resolution does the Hanwha QNV-C8012 capture? Answer: It records at 5 megapixels with a maximum 2592 x 1944 resolution for detailed surveillance imaging.
• Does the camera support infrared night vision? Answer: Yes. It includes infrared night vision to provide visibility in low-light or nighttime conditions.
• Which video codecs are available? Answer: The camera supports H.265, H.265M, H.265H, H.264, H.264M, H.264H, and MJPEG to optimize bandwidth and compatibility with different NVRs and CMS platforms.
• What mounting options are included? Answer: It supports Hanging Mount, Backbox Mount, Conduit Mount, and Gang Box Mount, enabling flexible installation on walls, ceilings, and railings.
• Is the camera rugged enough for outdoor use? Answer: Yes. It is designed for outdoor deployment with vandal resistance (IK10) and weather protection (IP6 as listed), making it suitable for exterior surveillance in challenging environments.
