Description

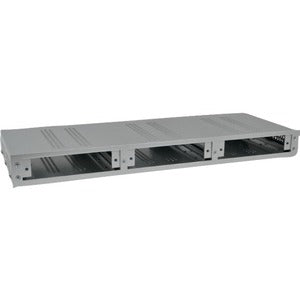

Hanwha SBP-C03SBP-C03 3 Unit Card Cage With Power Supply
The Hanwha SBP-C03 is a compact, purpose-built 1U card cage designed to maximize functionality in space-limited environments. This 19-inch rack-mountable enclosure can securely hold up to three 1.0-inch wide modules, delivering a streamlined solution for deployers who need to pack performance into a tight footprint. With its integrated power supply, the SBP-C03 offers a turnkey rack-ready option that simplifies installation, reduces cable clutter, and enhances system reliability. Whether you are outfitting a data center, lab, network operation center, or field rack, this unit provides a dependable, scalable platform for modular electronics and testing modules that require a compact, organized housing.
- 1U rack height (1.75") in a standard 19-inch chassis designed to save vertical space in dense rack environments.
- Holds up to three 1.0-inch wide modules, enabling flexible configurations while maintaining a compact profile.
- Includes an integrated power supply, delivering a ready-to-deploy enclosure that reduces the need for additional external power components.
- Ideal for environments with tight rack footprints where space efficiency and modular expandability are essential.
- Desktop installation capability when used with user-installed rubber feet, supporting versatile deployment beyond traditional racks.
Technical Details of Hanwha SBP-C03SBP-C03 3 Unit Card Cage With Power Supply
- Form Factor: 1U high, 19-inch rack-mountable card cage
- Module Capacity: Supports up to three 1.0-inch wide modules
- Power: Includes integrated power supply for convenient rack deployment
- Compatibility: Standard 19-inch rack equipment enclosure
- Construction: Rugged enclosure designed for reliable operation in demanding environments
How to Install Hanwha SBP-C03SBP-C03 3 Unit Card Cage With Power Supply
- Prepare your installation site: Verify you have a standard 19-inch rack space with adequate ventilation and clearance for the 1U enclosure.
- Mount the SBP-C03 in the rack: Align the cage with the rack rails and secure it using the appropriate screws or hardware provided for your rack system. Ensure the unit is firmly anchored to prevent vibration or movement.
- Install the modules: Slide up to three 1.0-inch wide modules into the corresponding slots inside the card cage. Secure each module as required by the module’s securing mechanism to ensure stable alignment and reliable contact.
- Connect power and cabling: Attach the integrated power supply to the designated power input and connect the power cables to your facility power source or distribution unit. Route cables neatly to promote airflow and reduce strain on connectors.
- Perform a functional check: Power on the enclosure and verify that all installed modules initialize correctly. Check for proper cooling and ensure there are no loose cables or obstructed vents. For desktop setups, apply rubber feet to the bottom as needed for stable placement.
Frequently asked questions
- Q: What is the Hanwha SBP-C03? A: A 1U, 19-inch rack-mountable card cage that can hold up to three 1.0-inch wide modules, with an integrated power supply for convenient deployment.
- Q: Does the SBP-C03 include a power supply? A: Yes—the unit comes with an integrated power supply for immediate rack deployment.
- Q: Can it be used in desktop installations? A: Yes. The SBP-C03 can be configured for desktop use by adding user-installed rubber feet for stability.
- Q: How many modules can it accommodate? A: It supports up to three modules that are each 1.0 inch wide.
- Q: Is it compatible with standard 19-inch racks? A: Yes. The SBP-C03 is designed for standard 19-inch rack installations, making it suitable for common data centers and lab environments.
