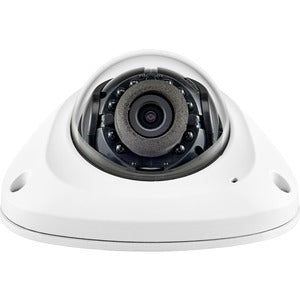

Hanwha Techwin ANV-L6023R 2 MP Outdoor Full HD Network Camera – Color Dome (White)

The Hanwha Techwin ANV-L6023R is a robust outdoor color dome network camera engineered to deliver dependable, high-quality surveillance in challenging environments. Designed for exterior installations such as entrances, parking areas, perimeters, and storefronts, this 2 Megapixel camera captures crisp 1080p imagery in daylight and maintains strong visibility after dark with built-in infrared illumination. Built to withstand the elements and potential tampering, it combines a sleek white dome housing with advanced compression technologies, making it a smart choice for commercial security systems that require reliable, scalable video without sacrificing image clarity.

• 2 MP color surveillance with 1920 x 1080 resolution: The ANV-L6023R delivers crisp, color-rich footage suitable for identifying faces, license plates, and other critical details across outdoor scenes. With a fixed 3.60 mm lens, it provides a balanced field of view ideal for monitoring entryways and mid-range distances while preserving edge-to-edge sharpness and color accuracy during daytime and transitional lighting conditions.
• Infrared night vision up to 49.21 ft: When lighting fades, this camera automatically switches to infrared to illuminate scenes up to approximately 15 meters. The result is dependable, low-light performance that minimizes blind spots and enables ongoing situational awareness around the clock—without relying on external lighting that could reveal camera locations or strain infrastructure.
• Vandal-resistant, weatherproof housing: Built for outdoor deployment, the ANV-L6023R features IP66 weather sealing and IK10 impact resistance. This combination protects the camera from dust, heavy rain, and tampering attempts, ensuring reliable operation in exposed locations such as building entrances, loading docks, and pedestrian zones even in harsh weather.
• Advanced video codecs and bandwidth efficiency: The camera supports H.264 and H.265 families, as well as Motion JPEG, with multiple profiles like H.265M, H.265B, and H.265H, along with H.264M, H.264B, and H.264H variants. These flexible compression options optimize bandwidth and storage while preserving detail, which is especially valuable for densely populated surveillance networks or locations requiring long-term retention without sacrificing image quality.
• 3.60 mm fixed lens with smooth 30 fps performance: The fixed focal length provides a dependable vantage with stable field of view, ideal for steady monitoring of critical areas. The camera supports up to 30 frames per second, delivering smooth motion for rapid activity such as vehicle movement or pedestrian traffic while ensuring clear, legible video during fast events.

Technical Details of Hanwha Techwin ANV-L6023R

• Product type: Outdoor color dome network camera
• Resolution: 1920 x 1080 (2 MP) color imaging
• Sensor: CMOS
• Lens: Fixed 3.60 mm lens
• Frame rate: Up to 30 fps
• Infrared: Night vision up to 49.21 ft (≈15 m)
• Video codecs: H.264, H.265, Motion JPEG and variants H.265M/H.265B/H.265H, H.264M/H.264B/H.264H
• Format compatibility: Outdoor, color dome, vandal resistant
• Weather resistance: IP66 rated for protection against dust and water jets
• Vandal resistance: IK10 rating to withstand impacts
• Color: White dome housing

How to install Hanwha Techwin ANV-L6023R

• Plan the installation location to maximize coverage while minimizing potential tampering. Consider sightlines to ensure the 3.60 mm lens captures the intended area without distortion or blind spots.
• Prepare the mounting surface and gather the included hardware. Ensure the chosen surface can support the camera’s weight and withstand outdoor conditions. Use appropriate sealing methods to preserve the IP66 rating and protect against weather ingress.
• Mount the camera securely to the chosen surface using the provided screws and mounting plate. Tighten hardware to the manufacturer's recommended torque, and verify the dome cover is properly seated to maintain weatherproof performance.
• Connect the camera to your network and power infrastructure according to your site's design. Plan cabling to minimize exposure to the elements and to reduce the risk of accidental damage. Follow your security system’s guidance for mounting height and cable management.
• Access the camera’s configuration interface through its IP address to configure basic settings. Set the video resolution, frame rate, and compression format (H.264/H.265/MJPEG) to balance image quality with storage considerations. Calibrate white balance, exposure, and IR modes for optimal day/night performance, and enable motion detection and alerts as needed for proactive monitoring.
• Test the live image under various lighting conditions, verify infrared performance after dark, and confirm recording and remote access capabilities within your VMS or NVR. If applicable, adjust field of view by tweaking the camera orientation and mounting angle to maximize coverage of critical zones without introducing unnecessary blind spots.

Frequently asked questions

• What is the resolution of the ANV-L6023R? The camera delivers 1920 x 1080 resolution, offering 2 MP color video suitable for clear identification and detail capture in outdoor environments.
• How far can it see at night? It features infrared night vision up to 49.21 feet (approximately 15 meters), enabling surveillance in darkness without external lighting.
• Is the camera designed for outdoor use? Yes. It has IP66 weatherproof housing and IK10 vandal resistance, making it suitable for exposed outdoor installations and capable of withstanding dust, rain, and impact.
• What codecs are supported? The ANV-L6023R supports multiple video codecs, including H.264, H.265, and Motion JPEG, with additional variants (H.265M/H.265B/H.265H and H.264M/H.264B/H.264H) for flexible bandwidth and storage optimization.
• What lens is used and what is the frame rate? It uses a fixed 3.60 mm lens, and can deliver up to 30 frames per second for smooth video of fast-moving scenes.
