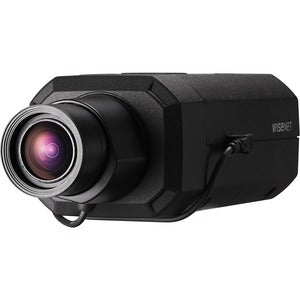

Hanwha Techwin PNB-A9001 8 Megapixel 4K Indoor/Outdoor Network Camera

Meet the Hanwha Techwin PNB-A9001, a high-performance 8 megapixel 4K network camera engineered to deliver brilliant color, crisp detail, and intelligent surveillance in both indoor and outdoor environments. This versatile camera combines cutting-edge compression with advanced low-light capability and built-in video analytics to provide reliable security coverage, whether you’re protecting a small storefront, a corporate campus, or an industrial facility. With its sleek black enclosure and box packaging, the PNB-A9001 is designed to blend into a range of settings while offering powerful performance under demanding conditions.

• 8 Megapixel 4K resolution (3840 x 2160) delivering ultra-clear imagery at up to 30 frames per second for smooth, detailed video across scenes with high motion.
• Flexible encoding options to suit bandwidth and storage requirements: H.265, H.265 (HP), H.264, H.264 (MP), and MJPEG for broad compatibility.
• Exceptional low-light performance for reliable color and grayscale imagery: 0.03 lux in color mode at F1.2 and 0.003 lux in black-and-white mode at F1.2, enabling clear captures even after dark.
• Indoor/Outdoor versatility with a robust design intended for varied installation environments, allowing secure monitoring at entrances, parking areas, lobbies, and more.
• Integrated video analytics to support proactive security operations, including intelligent event detection and faster incident response while reducing false alarms.

Technical Details of Hanwha Techwin PNB-A9001

• Model: PNB-A9001
• Sensor: CMOS 4K / 8 megapixel (3840 x 2160)
• Resolution: 3840 x 2160 (4K)
• Frame rate: 30 fps at all resolutions
• Video codecs: H.265, H.265 (HP), H.264, H.264 (MP), MJPEG
• Low-light performance: 0.03 lux color, 0.003 lux B/W at F1.2
• Video analytics: Yes (built-in)
• Environment: Indoor/Outdoor capable surveillance camera
• Packaging: Box with Black finish

how to install Hanwha Techwin PNB-A9001

To deploy the Hanwha Techwin PNB-A9001 effectively, begin by planning the installation location to optimize field of view and coverage. Identify a mounting surface that can support the camera’s weight and withstand environmental conditions appropriate for both indoor and exterior use. If your setup uses Power over Ethernet (PoE), ensure your network switch or NVR supports PoE to simplify cabling and power delivery. If PoE is not available, use an appropriate power supply compliant with the camera’s specifications.

Step-by-step guidance for installation:

• Mount the camera using the included hardware on the chosen surface. Adjust the angle to cover critical zones such as entrances, aisles, or perimeters, taking into account glare, backlight, and potential occlusions.
• Run network cables securely, keeping them protected from tampering and weather exposure. If using weatherproof enclosures or gaskets, apply them as specified to maintain indoor/outdoor integrity.
• Connect the camera to a PoE-enabled switch or NVR. Power status and network connectivity should be visible on the camera’s status indicators or through the management software.
• Access the camera’s web interface or your NVR configuration tool to assign a stable IP address (static or DHCP as appropriate for your network), configure basic settings, and select the preferred video stream (H.265 or H.264) to balance image quality and bandwidth.
• Set up destination paths for storage, strengthen security with user access controls, and enable video analytics features. If necessary, configure privacy masking, motion detection zones, alert notifications, and recording schedules to align with organizational policies.
• Calibrate focus and exposure if the camera offers adjustable optics. Test the camera under varying light conditions—from bright daylight to low-light nighttime—to verify that color fidelity and detail remain strong in practical use.
• Perform a final check of network performance, confirming reliable streaming at 4K resolution where bandwidth permits. Update firmware if needed to ensure you have the latest security patches and feature enhancements.

Frequently asked questions

• Is the Hanwha Techwin PNB-A9001 suitable for outdoor use? Yes. The PNB-A9001 is designed for indoor/outdoor deployment, enabling secure monitoring across entrances, parking lots, and exterior façades. When outdoor deployment is required, ensure proper mounting, weather protection, and safeguarding against environmental exposure in accordance with local regulations and best practices.
• What resolution and frame rate does it support? The camera delivers 4K 3840 x 2160 resolution at up to 30 frames per second, ensuring smooth, detailed footage across scenes with motion.
• Which video codecs are supported? The PNB-A9001 supports multiple codecs, including H.265, H.265 HP, H.264, H.264 MP, and MJPEG, enabling flexible deployment to minimize bandwidth while maintaining image quality or maximizing compatibility with older systems.
• How does the low-light performance perform in real-world conditions? In color mode at F1.2, it achieves approximately 0.03 lux, and in monochrome (B/W) mode at F1.2, about 0.003 lux, providing usable images in low-light environments where other cameras might struggle.
• Does it include video analytics, and what benefits does that provide? Yes. Built-in video analytics enable smart detection, alerting, and automated responses—helping you identify events quickly, reduce false alarms, and streamline security workflows.
