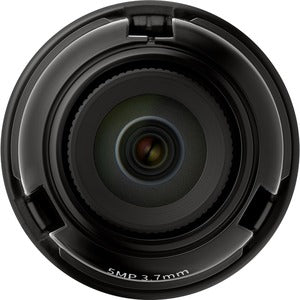

Hanwha Techwin SLA-5M3700Q – 3.70 mm F1.6 Fixed Lens for M12 Mount

Engineered for reliable, high-detail surveillance, the SLA-5M3700Q is a compact fixed lens designed for M12-mount cameras. This 3.70 mm focal length lens delivers sharp 5MP imaging with excellent color fidelity and low-light performance. Available in multiple fixed focal options—3.7 mm, 4.6 mm, and 7.0 mm—these lenses let integrators tailor field of view to each camera position. With a compact 1.4" length and diameter, the SLA-5M3700Q fits in tight enclosures and is ideal for retail, office, and outdoor security deployments where space is at a premium. Whether you’re upgrading an existing 5MP IP camera or equipping a compact surveillance setup, this lens delivers the clarity and reliability essential for identification, monitoring, and evidence gathering.

• 3.7mm fixed focal length with F/1.6 aperture provides bright, high-contrast 5MP imagery in both color and monochrome modes. The fast aperture helps capture clearer details in low-light environments, making it a solid choice for entrances, aisles, and parking areas where lighting can fluctuate.
• Easy integration with M12-mount cameras—the SLA-5M3700Q is designed to drop into compact camera housings and align with standard M12 interfaces, minimizing installation time while preserving image quality and field of view.
• Selectable lens options for flexible deployments—in addition to the 3.7 mm variant, this family includes fixed lenses at 4.6 mm and 7.0 mm. This allows you to optimize coverage from wide-angle surveillance to more focused, distant viewing without changing the camera body.
• Outstanding low-light performance—rated at 0.16 lux @ F1.6, the SLA-5M3700Q helps capture usable color and grayscale imagery in dim conditions, reducing the need for additional lighting and helping to preserve image integrity at night or in shaded areas.
• Compact, robust design for tight spaces—measuring about 1.4" in both length and diameter, this lens fits behind small enclosures, dome housings, or compact cameras while delivering consistent 5MP quality and reliable operation in demanding environments.

Technical Details of Hanwha Techwin SLA-5M3700Q

• Focal length: 3.70 mm fixed (also available in 4.6 mm and 7.0 mm fixed variants)
• Aperture: F1.6
• Mount: M12
• Image resolution: 5MP lens for high-detail surveillance
• Color/B/W options: Available in color and black-and-white variants for 5MP imaging
• Size: 1.4" length, 1.4" diameter
• Application: Designed for surveillance cameras requiring a compact M12 fixed-lens solution
• Light sensitivity: 0.16 Lux at F1.6 (color mode)

How to install Hanwha Techwin SLA-5M3700Q

• Power down your surveillance system and disconnect power before handling the lens to avoid damage.
• Remove the existing lens or lens cap from the M12 mount on the camera housing.
• Carefully thread the SLA-5M3700Q into the M12 mount until it is seated securely. Do not overtighten to prevent damaging threads.
• Power up the camera and verify the image. Confirm the lens is oriented correctly and adjust the camera’s field of view to capture the desired scene. If your system supports focus adjustments on the camera side, fine‑tune for sharpness; otherwise rely on the fixed focus provided by the lens.
• Test across lighting conditions (day and night) to ensure exposure and white balance meet your security needs. Document the installed lens model and focal length for future maintenance or replacements.

Frequently asked questions

• Q: What focal lengths are available for this lens family? A: The SLA-5M3700Q is a 3.70 mm fixed-lens variant; other fixed options in the family include 4.6 mm and 7.0 mm.
• Q: What is the aperture of this lens? A: The lens features an F1.6 aperture for enhanced low-light performance.
• Q: Is this lens suitable for color or B/W imaging? A: The 5MP lenses in this line are available in color and black-and-white variants, depending on the specific SKU.
• Q: What mount does this lens use? A: It uses a standard M12 mount for easy integration with compatible cameras and housings.
• Q: What resolution can I expect? A: The SLA-5M3700Q supports high-detail 5MP imaging, ideal for facial recognition, license plate capture, and scene detail in surveillance footage.
• Q: How do I choose the right focal length? A: Consider your installation distance and field of view requirements. Use the 3.7 mm for wide coverage in small rooms or corridors, the 4.6 mm for mid-range views, and the 7.0 mm for longer-range monitoring or tighter framing.
• Q: How do I install this lens? A: Refer to the How to install section above for step-by-step guidance on mounting, securing, and testing the lens within your camera system.
