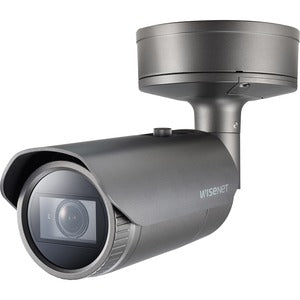

Hanwha Techwin XNO-8082R 6MP Indoor/Outdoor Network Camera

The Hanwha Techwin XNO-8082R is a versatile, high-performance 6-megapixel HD network camera engineered for both indoor and outdoor surveillance. With a durable dark grey bullet housing, IP66/IP67 protection, and IK10 impact resistance, this camera is built to withstand tough environments while delivering superb image quality. The combination of a 2.8–8.4 mm varifocal lens with 3x optical zoom, color-by-day and monochrome-by-night imaging, and advanced video codecs makes it a smart choice for retailers, campuses, industrial sites, and critical infrastructure alike. Whether you’re protecting a storefront, parking lot, or loading dock, the XNO-8082R provides reliable, sharp footage that helps you monitor, detect, and respond quickly to incidents.

• 6MP resolution for clear, detailed footage — Capture crystal-clear images at 3328 × 1872 pixels to reveal important details such as facial features, license plates, and object edges, reducing ambiguity during investigations.
• Color day / Monochrome night imaging — Switches between vivid color during daylight and high-contrast monochrome at night to preserve detail in low-light conditions, improving visibility when lighting is poor.
• 131.23 ft of night vision — Integrated illumination and sensor performance enable impressive long-range night coverage to monitor perimeters, entrances, and blind spots after dark.
• Flexible, high-quality optics — A 2.8–8.4 mm varifocal lens with 3x optical zoom lets you tailor the scene from wide-area surveillance to focused detail without changing cameras, simplifying deployments and adjustments.
• Rugged, weather-ready design — The camera is engineered for outdoor and harsh environments with IP66/IP67 ingress protection and IK10 impact resistance, ensuring dependable operation in rain, dust, and potential tampering scenarios.

Technical Details of Hanwha Techwin XNO-8082R

• Resolution: 6 Megapixel (3328 × 1872) for highly detailed imagery
• Sensor: CMOS image sensor delivering crisp, reliable performance
• Lens: 2.8–8.4 mm varifocal lens with 3x optical zoom; adjustable field of view
• Video formats: H.265, H.264, H.264M, H.264H, and MJPEG for flexible bandwidth and compatibility
• Frame rate: Up to 30 frames per second, ensuring smooth video playback
• Day/Night: Color during daylight, Monochrome at night for enhanced low-light detail
• Night vision range: Approximately 131.23 ft (40 m) of illumination-assisted visibility
• Mounting: Pole mount capable; designed for versatile installation options
• Protection: IP66 and IP67 ingress protection for dust and water resistance
• Impact resistance: IK10 rating for protection against physical impact
• Camera style: Bullet, dark gray housing with rugged external finish
• Codec efficiency: Supports multiple streams and efficient compression to optimize bandwidth usage

How to install Hanwha Techwin XNO-8082R

• Unpack and inspect the camera along with all mounting hardware and cables to ensure you have everything needed for installation.
• Choose a mounting location that provides an unobstructed view while remaining within reach of power (or PoE) and network connections.
• Attach the pole mount or compatible bracket to a sturdy surface. Use appropriate fasteners rated for outdoor use if installing outdoors.
• Connect the camera to power and network access, preferably via PoE to simplify wiring and improve reliability. Ensure network switches or NVR systems recognize the device.
• Power on the unit and access the camera via its web interface or your NVR to configure basic settings, including IP addressing, day/night mode, and regional privacy considerations.
• Adjust the varifocal lens to frame the desired scene and verify focus at the maximum resolution. Save these settings as a profile for quick deployment across multiple cameras if needed.
• Define recording schedules, motion events, and alerting preferences. Fine-tune the night-vision range, exposure, and white balance to optimize image quality in your environment.
• Test under different lighting conditions and weather scenarios to confirm performance. Periodically check firmware updates from Hanwha Techwin to maintain security and compatibility.

Frequently asked questions

• Q: What environments is the XNO-8082R suitable for?

  A: The camera is designed for both indoor and outdoor use, with robust IP66/IP67 protection and IK10 impact resistance to handle rain, dust, and potential tampering. It is ideal for entrances, perimeters, parking areas, and industrial sites.

• Q: What image quality can I expect?

  A: With 6MP resolution (3328 × 1872) and a 2.8–8.4 mm varifocal lens, the XNO-8082R delivers detailed daytime color images and high-contrast monochrome footage at night, helping you identify important details across various scenarios.

• Q: Which video codecs does it support?

  A: The camera supports H.265, H.264, H.264M, H.264H, and MJPEG, providing flexibility for bandwidth management and compatibility with different NVR systems.

• Q: How far can it see at night?

  A: The device offers up to approximately 131.23 feet (40 meters) of night vision, depending on environmental conditions and target reflectivity, enabling effective monitoring of larger outdoor areas after dark.

• Q: How should I install and configure it with an NVR?

  A: Install the camera using PoE or a suitable power supply, connect it to the network, and use the camera’s web interface or your NVR to set IP, streams, motion events, and alerts. It’s recommended to keep firmware updated for security and performance improvements.

• Q: Is there any special lens adjustment required?

  A: Yes, you should focus and frame the scene using the 2.8–8.4 mm varifocal lens to achieve the desired coverage. Save calibrated positions as presets for quick recall during deployment or maintenance.
