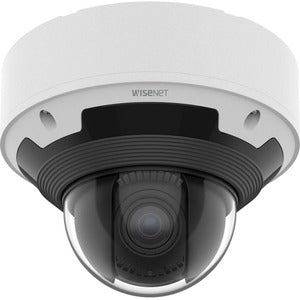

Hanwha Techwin XNV-9083RZ 8 Megapixel Outdoor 4K Network Camera - Color - Dome - White

Meet the Hanwha Techwin XNV-9083RZ, a high-performance outdoor 8-megapixel network camera engineered for reliable, crystal-clear color surveillance in challenging environments. This white dome camera blends architectural elegance with rugged protection, delivering 4K resolution (3840 x 2160) that captures intricate details across wide entrances, parking lots, perimeters, and exterior facades. Designed for outdoor use, the XNV-9083RZ is built to endure harsh weather while preserving image fidelity, making it an ideal choice for retailers, campuses, and enterprise facilities that demand security without compromise.

• Stunning 4K clarity for critical detail: The 8MP sensor provides ultra-high-definition 3840 x 2160 imagery at up to 30 frames per second, enabling sharp facial recognition, license plate capture, and activity detection even from a distance. With multiple encoding options, including H.265, H.265M, H.265H, H.264M, H.264H, and Motion JPEG, you can optimize bandwidth without sacrificing video quality, ensuring dependable monitoring around the clock.
• Versatile varifocal lens for adaptive viewing: The built-in 4.40 mm to 9.30 mm varifocal lens offers a 2.1x optical zoom, letting you dial in the perfect field of view—whether you need broad coverage of a storefront exterior or a tight focus on a doorway. This flexibility makes the XNV-9083RZ suitable for multiple sites with changing surveillance needs, reducing blind spots while maintaining image clarity at all distances.
• Advanced night vision for around-the-clock safety: With a robust infrared range of up to 98.43 feet, this camera maintains strong visibility in low-light conditions. Color capture during daylight transitions to clear monochrome detail at night, thanks to efficient noise reduction and signal processing. The result is dependable security footage in 24/7 operations, even in challenging lighting environments.
• Rugged, weather-ready exterior for harsh environments: The XNV-9083RZ is built to endure demanding outdoor conditions with IP66, IP67, and IP6K9K ingress protection and IK10+ vandal resistance. Its weather-sealed housing guards against dust, water jets, and high-pressure washdowns, while the dome design minimizes tampering risk and ensures reliable performance in courtyards, loading docks, and exposed façades.
• Smart network performance with WiseNR and multiple codecs: This camera supports a suite of efficient codecs (H.265, H.265M, H.265H, H.264M, H.264H, and Motion JPEG) to optimize bandwidth and storage. WiseNR helps reduce noise for clearer images in challenging lighting, enhancing detail in the regions that matter most. With smooth 30 fps streaming, you’ll capture fluid movement—essential for accurate activity detection and incident review.

Technical Details of Hanwha Techwin XNV-9083RZ

• Model: XNV-9083RZ
• Type: Outdoor 8MP 4K Network Dome Camera
• Resolution: 3840 x 2160 (4K) @ up to 30 fps
• Lens: 4.40 mm – 9.30 mm Varifocal, 2.1x optical zoom
• Sensor: CMOS
• Video Codecs: H.265, H.265M, H.265H, H.264M, H.264H, Motion JPEG
• Infrared Range: 98.43 feet
• Day/Night: Color during the day; monochrome at night with IR illumination
• Protection: IK10+ vandal resistance
• Weather Rating: IP66, IP67, IP6K9K for ingress protection
• Mounting: Dome housing in white color
• Special Features: WiseNR (noise reduction) for clearer low-light video

How to install Hanwha Techwin XNV-9083RZ

• Plan placement: Identify mounting location with a clear line of sight to the primary area of interest. Consider entrances, perimeters, and vehicle paths to minimize blind spots while keeping power and network connections accessible.
• Prepare mounting surface: Ensure the ceiling or wall surface is solid and capable of supporting the dome camera. Use appropriate anchors and mounting bracket if included with the kit. Confirm there is no obstruction to the camera’s field of view.
• Install the camera housing: Secure the dome camera to the mounting surface using the provided screws and hardware. Make sure the unit sits level and the lens is unobstructed. If needed, adjust the gasket or seal to maintain IP66/IP67 protection.
• Connect power and network: Attach the camera to your network and power source following the product’s installation guide. If the camera supports PoE, use a compatible PoE switch to simplify wiring; otherwise connect per your facility power specifications and use the exact Ethernet cable recommended for outdoor use.
• Configure settings: Access the camera via its IP address or supplied configuration tool. Set the desired resolution (4K), frame rate (up to 30 fps), and encoding (choose H.265/H.265H/M for bandwidth efficiency). Enable WiseNR to improve low-light performance and configure IR settings for reliable night vision coverage.
• Calibrate lens and field of view: Use the varifocal lens to fine-tune the focal length for your target area. Lock the focus and zoom once the desired view is achieved. Verify that important objects are within the scene without distortion at the edges.
• Set privacy and security features: Create user accounts with appropriate access levels, enable motion detection and alert notifications, and configure recording schedules and retention policies to meet your security requirements.
• Test and document: Run a live test across day and night conditions, verify IR range, check for glare or washout, and confirm footage is being stored or streamed correctly. Document camera location, IP address, and login credentials for future maintenance.

Frequently asked questions

• Q: What resolution does the Hanwha Techwin XNV-9083RZ provide? A: It delivers 8MP, 4K resolution at 3840 x 2160 with up to 30 frames per second for crisp, detailed surveillance footage.
• Q: What kind of lens does it have? A: A 4.40 mm to 9.30 mm varifocal lens with 2.1x optical zoom, allowing flexible framing from wide to focused views.
• Q: How far can it see at night? A: The camera provides infrared night vision up to 98.43 feet, enabling visibility in low-light environments, with color capture during daytime.
• Q: How rugged is the camera? A: It features IK10+ vandal resistance and IP66/IP67/IP6K9K ratings for protection against dust, water jets, and high-pressure washdowns in outdoor settings.
• Q: What video codecs does it support? A: It supports H.265, H.265M, H.265H, H.264M, H.264H, and Motion JPEG, offering flexible, bandwidth-conscious streaming options along with WiseNR for improved image quality in challenging lighting.
