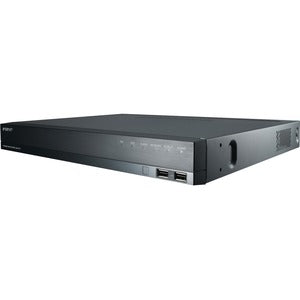

Hanwha Techwin XRN-820S Video Surveillance Station — 4 TB HDD

Discover the Hanwha Techwin XRN-820S Video Surveillance Station, a dependable network video recorder (NVR) built for reliable security coverage in small to mid-size sites. With a pre-installed 4 TB hard drive, 8-channel recording, and smooth HDMI output, this NVR is designed to streamline monitoring, storage, and retrieval of footage. Seamlessly integrate Wisenet AI cameras to enable faster incident analysis with AI-powered search, while enjoying a user-friendly interface that makes setup and maintenance straightforward even for security teams upgrading from video-only systems. Whether you’re safeguarding a retail storefront, office space, or small campus, the XRN-820S delivers crisp video quality, flexible display options, and dependable performance that helps you respond decisively to security events.

• 8-channel recording with high-resolution support - The XRN-820S is designed to manage up to eight cameras simultaneously, providing synchronized live view and playback. It supports high-resolution streams up to 32 MP per camera, giving you the flexibility to monitor wide areas with exceptional detail while preserving smooth performance across channels.
• 4 TB HDD included for ample storage - A built-in 4 TB hard drive offers generous retention for recorded footage, helping you maintain longer investigation windows without frequent drive changes. The large capacity is ideal for sensitive environments where timely access to past events is crucial.
• AI search integration with Wisenet AI cameras - Enhance investigative efficiency with AI-powered search capabilities that leverage Wisenet AI cameras. Quickly locate events by analyzing motion, objects, or other AI-driven cues, reducing the time needed to review hours of footage and speeding up security responses.
• Flexible display options with UHD HDMI and VGA - Output live and playback video to UHD-capable HDMI displays or traditional VGA monitors, allowing you to configure a modern control room or a compact monitoring station that fits your space and budget while preserving image clarity.
• Intuitive UI/UX and straightforward setup - The XRN-820S features a user-friendly interface and guided setup that simplifies camera enrollment, schedule configuration, and routine maintenance. Its streamlined menus help security staff navigate recordings, playback, and analytics with confidence from day one.

Technical Details of Hanwha Techwin XRN-820S Video Surveillance Station - 4 TB HDD

• Model: XRN-820S
• Product type: Video Surveillance Station / Network Video Recorder (NVR)
• Storage: 4 TB HDD (pre-installed)
• Camera channels: 8-channel recording
• Maximum camera resolution supported: Up to 32 MP per camera
• Maximum recording bandwidth: Up to 100 Mbps
• Video outputs: HDMI (UHD-capable) and VGA
• User interface: User-friendly UI/UX for quick setup and operation
• AI integration: Supports Wisenet AI cameras for AI search and analytics

How to install Hanwha Techwin XRN-820S Video Surveillance Station

• Choose a secure, ventilated location for the NVR, ideally in a dedicated security room or equipment rack. Ensure there is easy access to power, network connections, and display options.
• Verify the 4 TB HDD is properly seated in the drive bay and that any necessary screws or mounting hardware are secured to minimize vibration during operation.
• Connect a display to the NVR using the HDMI port for initial setup (HDMI is preferred for high-definition viewing). If HDMI isn’t available, you can use the VGA output to a compatible monitor.
• Link the NVR to your network with an Ethernet cable. Power on the device and wait for the initial boot and setup screen to appear.
• Follow the on-screen setup wizard to configure date and time, administrator credentials, and network settings (including IP assignment and gateway). This establishes secure access and ensures proper integration with your existing network.
• Enroll cameras by discovering them on the network or entering their IPs, then assign channels on the NVR. Configure recording schedules, event rules, and retention settings according to your security policy.
• Enable Wisenet AI integration if you plan to use AI search features. Calibrate AI settings to optimize event detection, and ensure camera firmware is updated to support the latest analytics.
• Test live viewing, playback, and basic analytics to verify that all cameras appear correctly on the NVR, and confirm that recorded footage is stored on the 4 TB drive as expected. Perform a quick integrity check to ensure playback is synchronized across channels.

Frequently asked questions

• Q: How many channels does the Hanwha Techwin XRN-820S support?
  A: It supports up to 8 cameras (8-channel recording).
• Q: What is the maximum camera resolution supported?
  A: Up to 32 MP per camera, depending on the camera model you pair with the NVR.
• Q: Does the NVR come with a hard drive?
  A: Yes, the unit includes a 4 TB HDD pre-installed for immediate use.
• Q: Does this NVR support AI search?
  A: Yes, it integrates with Wisenet AI cameras to enable AI-driven search and analytics for faster incident investigation.
• Q: What display outputs are available?
  A: HDMI output (UHD-capable) and VGA monitor output provide flexible viewing options for different setups.
• Q: What is the maximum recording bandwidth?
  A: The NVR supports up to 100 Mbps of recording bandwidth to accommodate multiple high-resolution streams.
